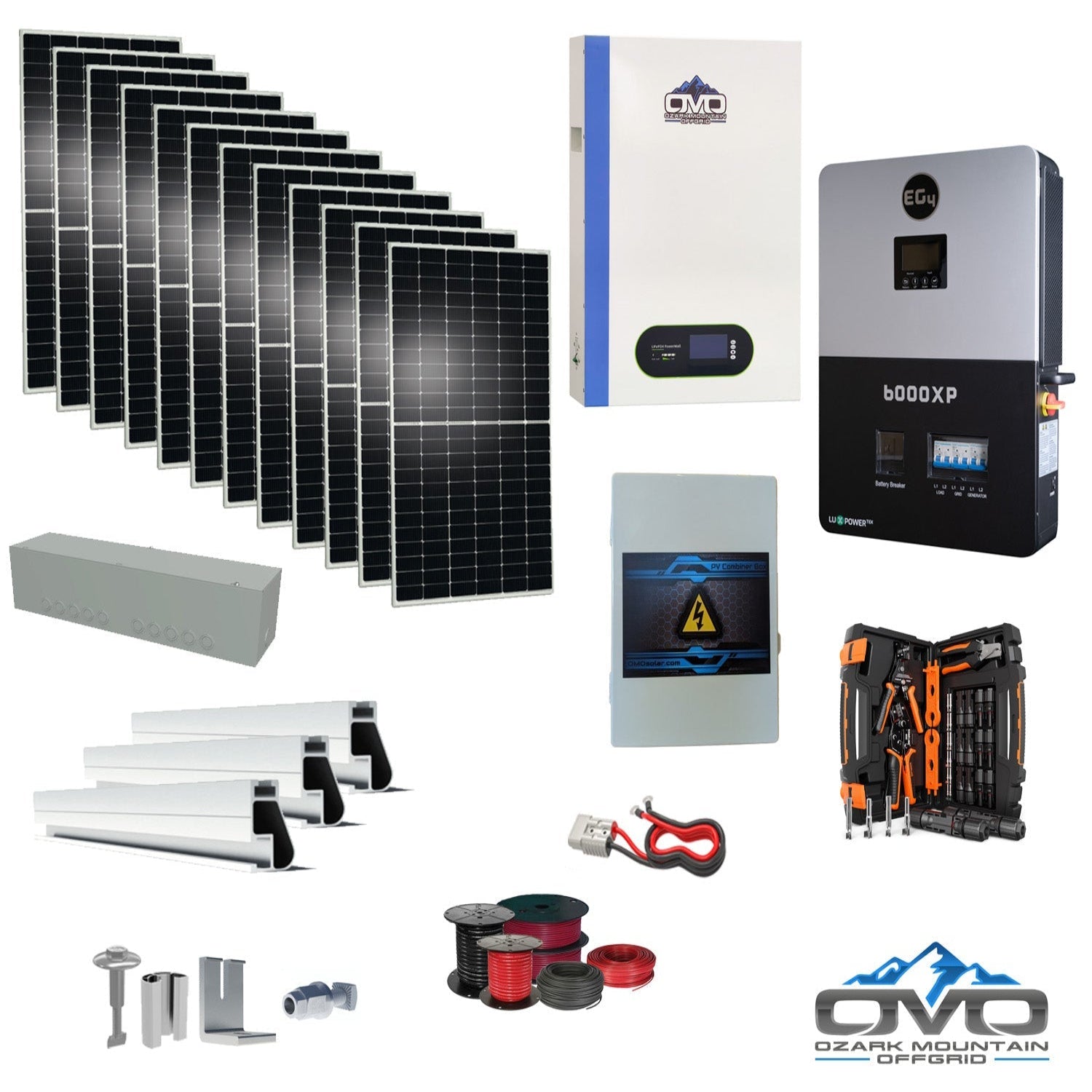

6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Roof Mounting Rails and Wiring

The 6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Roof Mounting Rails and Wiring is designed for cabins, small homes, shops, or off-grid workspaces. Equipped with a 5.12kWh OMO 48V Patriot Lithium Battery and the powerful EG4 6000XP inverter, this system generates approximately 29,700 watts per day based on 4.5 hours of sunlight. The kit supports homes that consume around 920kWh per month and is fully expandable, allowing future additions of both solar panels and batteries.

Specifications

• Solar Panels: 12× 550W bifacial double-glass panels (6,600W total)

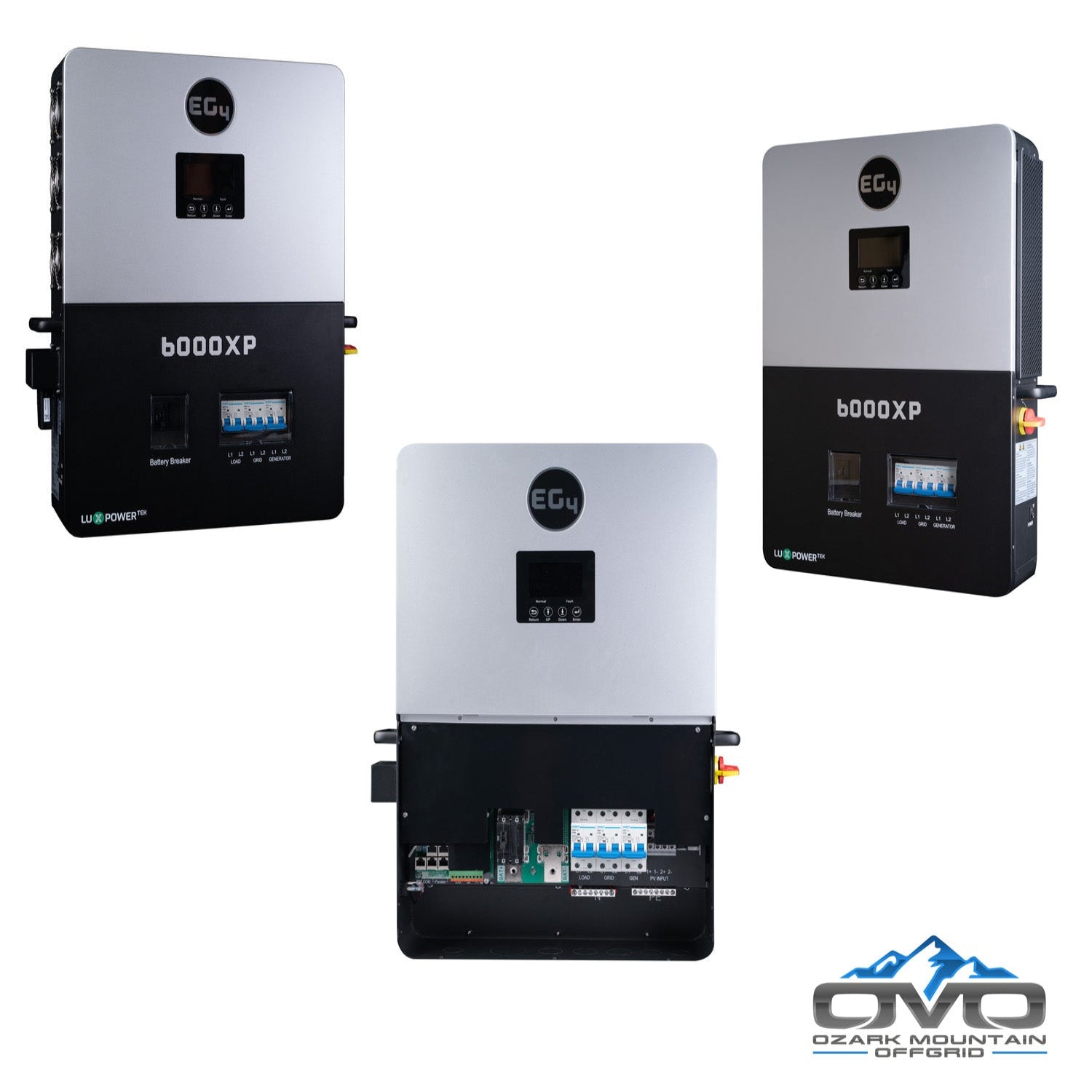

• Inverter: EG4 6000XP — 208/240VAC split-phase, 48VDC off-grid inverter/charger

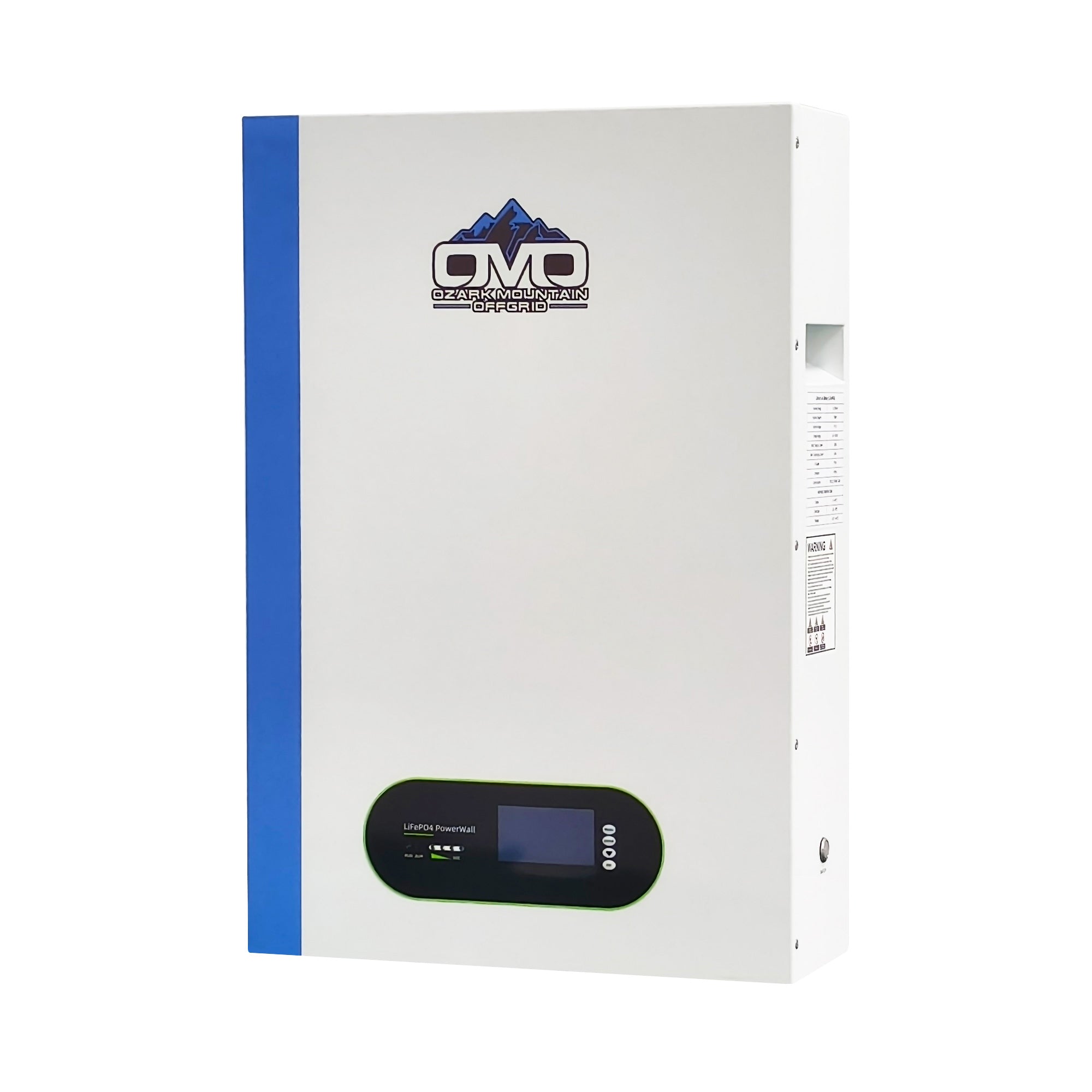

• Battery: 5.12kWh OMO 48V Patriot Lithium Battery with wall bracket

• Mounting System: Complete Iron Ridge roof-mount kit — rails, splices, legs, fasteners, bolts

• Combiner & Enclosures: Solar combiner box and gutter box

• Wiring: 500′ PV direct-burial solar wire & 100′ 6AWG AC output/input/generator cable

• Battery Cabling: Anderson plug battery-to-inverter cable set

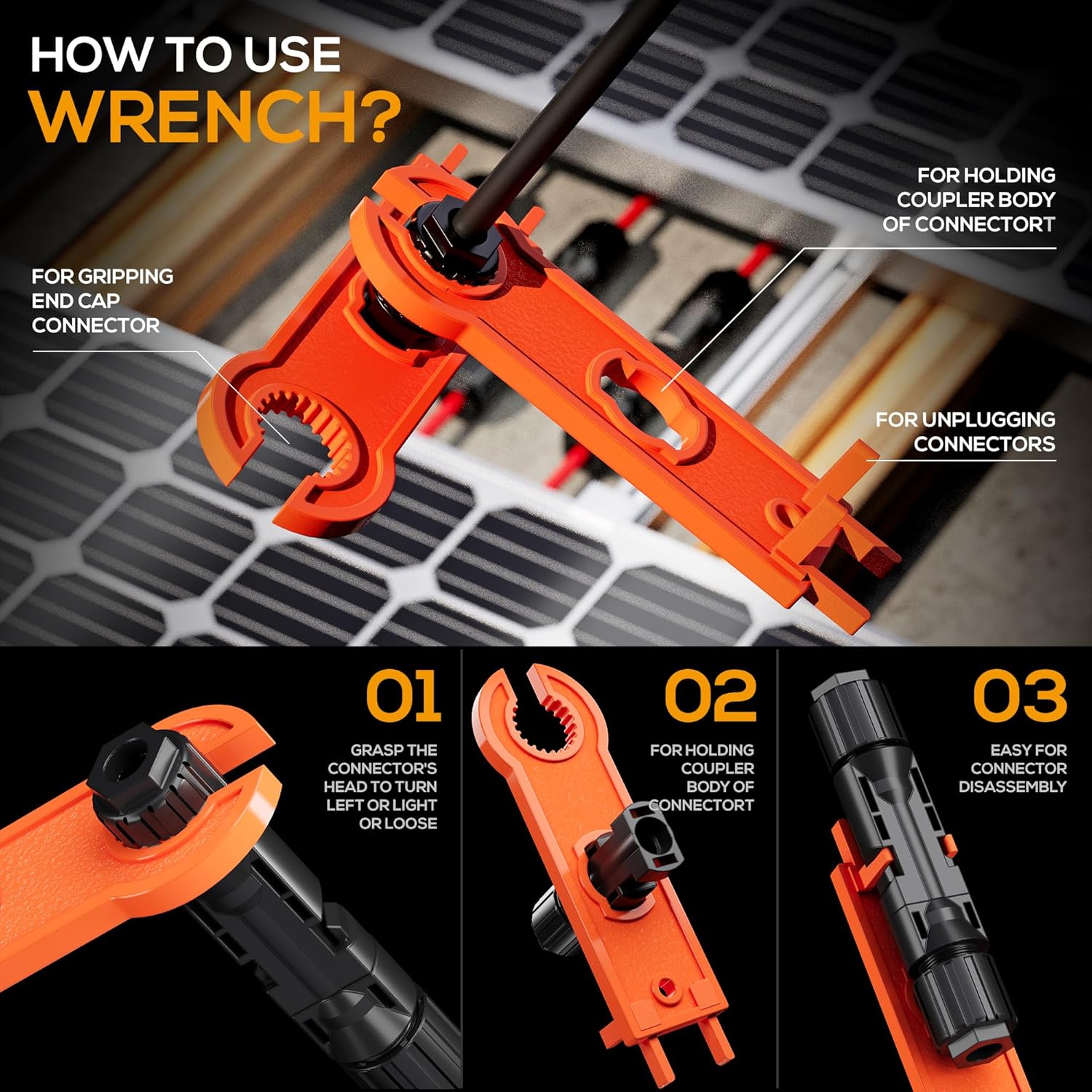

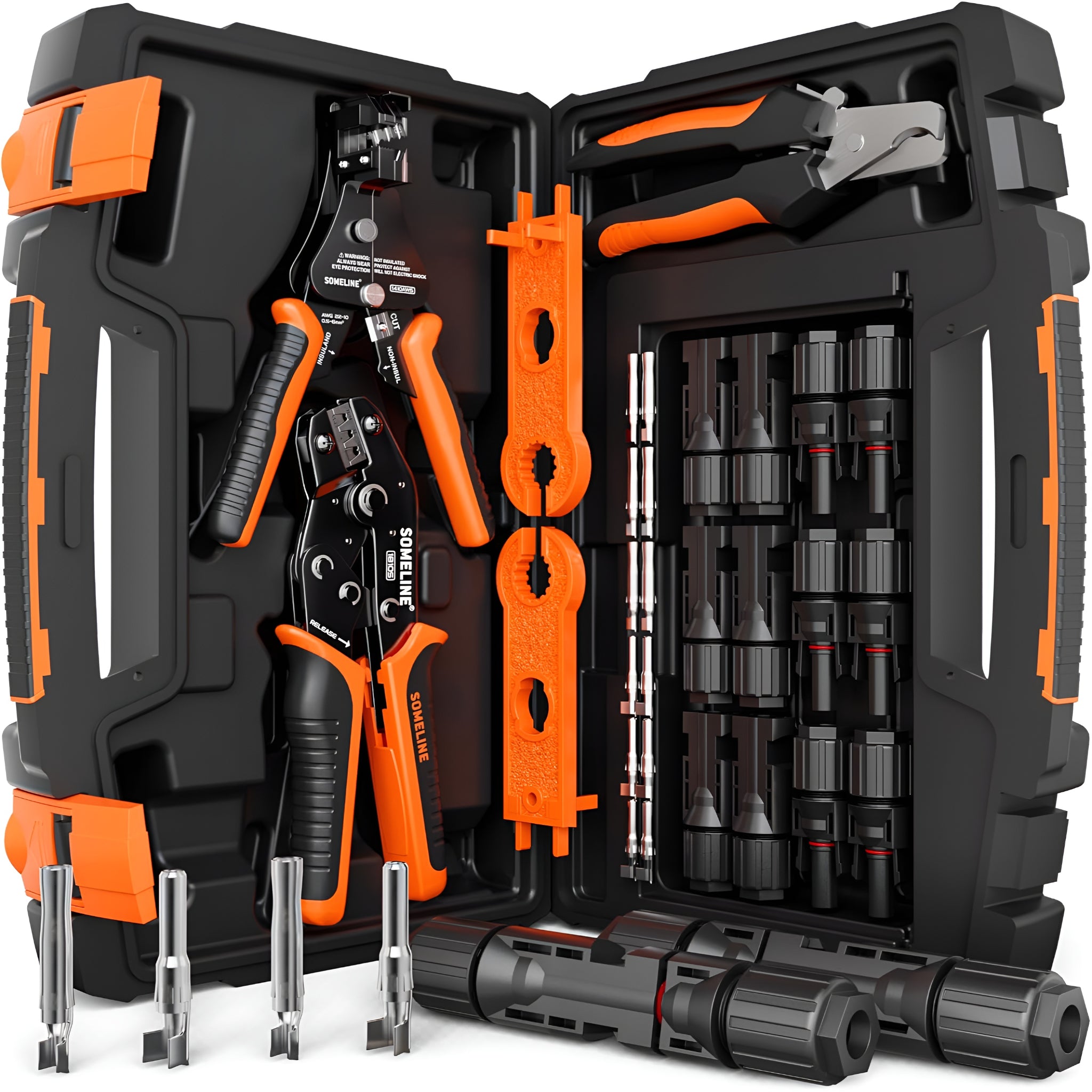

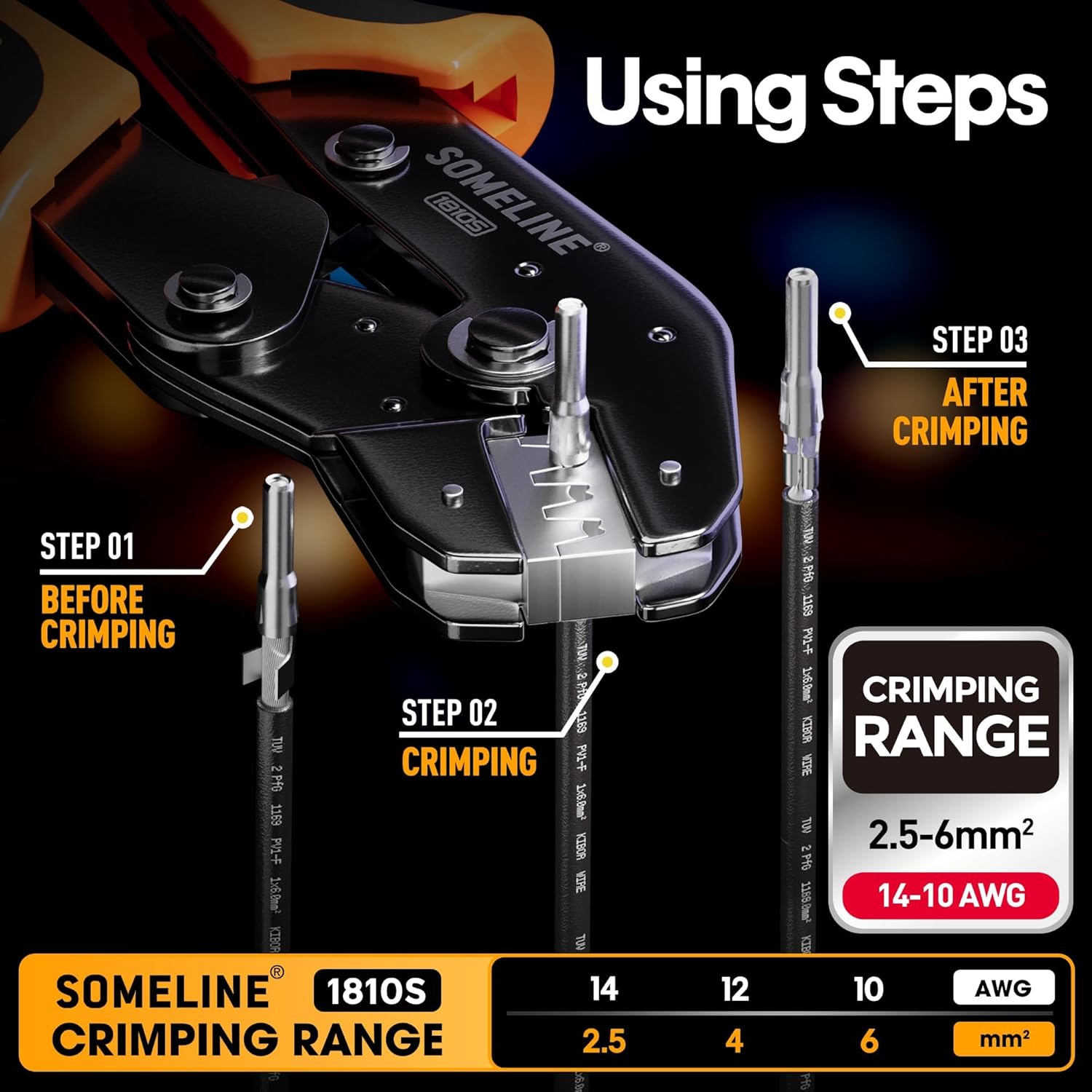

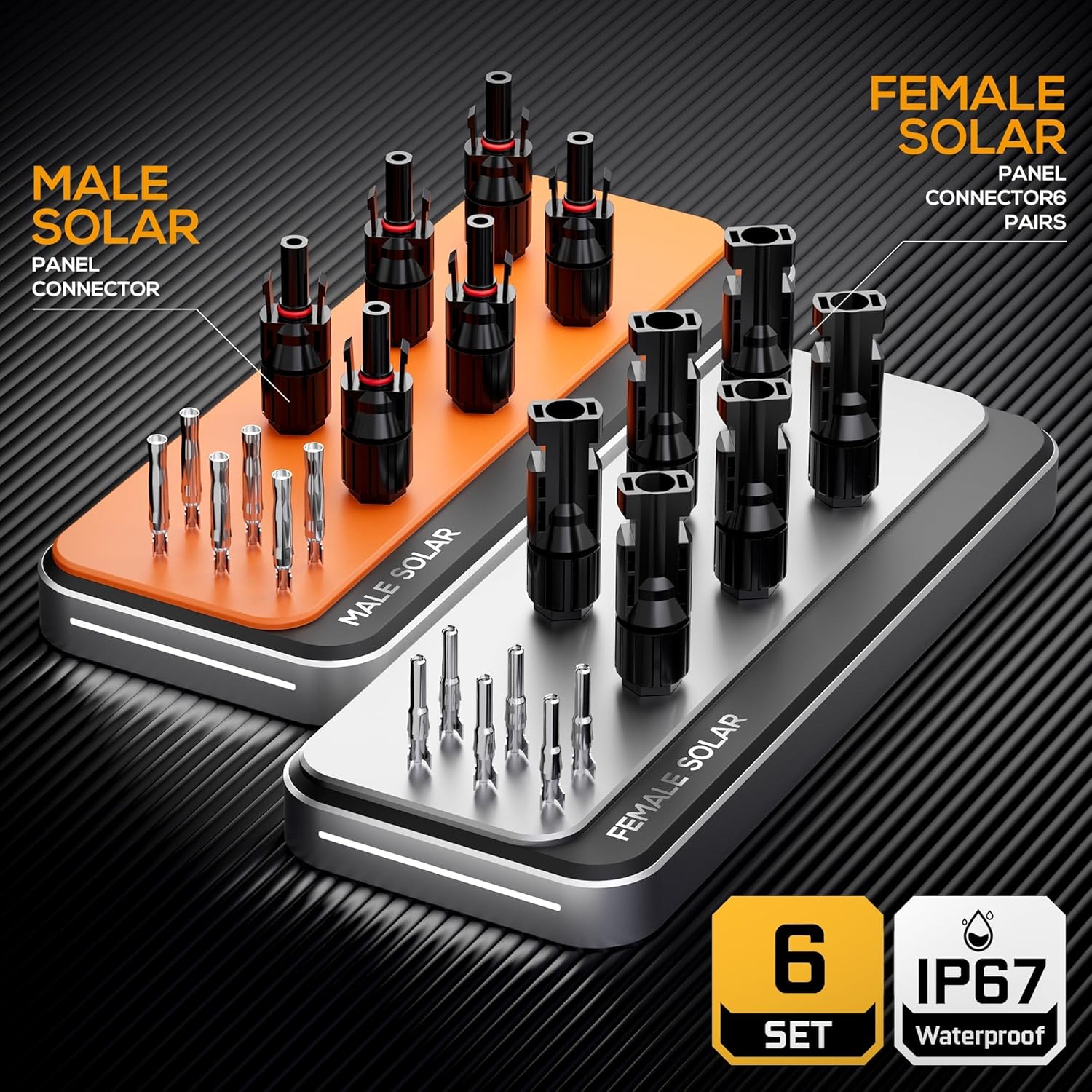

• Tools & Documentation: MC4 crimp kit and installation manual

• Battery Specification Sheet: Click here

Features

• Bifacial Solar Technology: Generates up to 25% additional rear-side energy for higher daily output

• High Durability: Double-glass construction with 5400 PA snow load & 2400 PA wind load ratings

• Wide Appliance Compatibility: Runs wells, washers, fans, TVs, lights, refrigerators, freezers, electronics, and smaller AC systems

• Energy Production: Approx. 29,700W/day based on regional sun-hour averages

• DIY Installation Friendly: Homeowners with basic wiring knowledge can install; racking is typically the most labor-intensive step

• Roof-Mount System: Complete hardware kit included for secure roof installation

• EG4 6000XP Performance: High-efficiency inverter with split-phase output and advanced MPPT charging

Maintenance

• Daily: Ensure panels are unobstructed and free from shading/debris

• Weekly: Check inverter output, battery SOC levels, and visible wiring paths

• Annually: Inspect mounting hardware, wiring connections, grounding, and battery terminals; clean panels thoroughly

Warranty

• Solar Panels: 30-year power output warranty

• EG4 6000XP Inverter: Manufacturer warranty as specified by EG4

• OMO Patriot Battery: Warranty details included in the specification sheet
