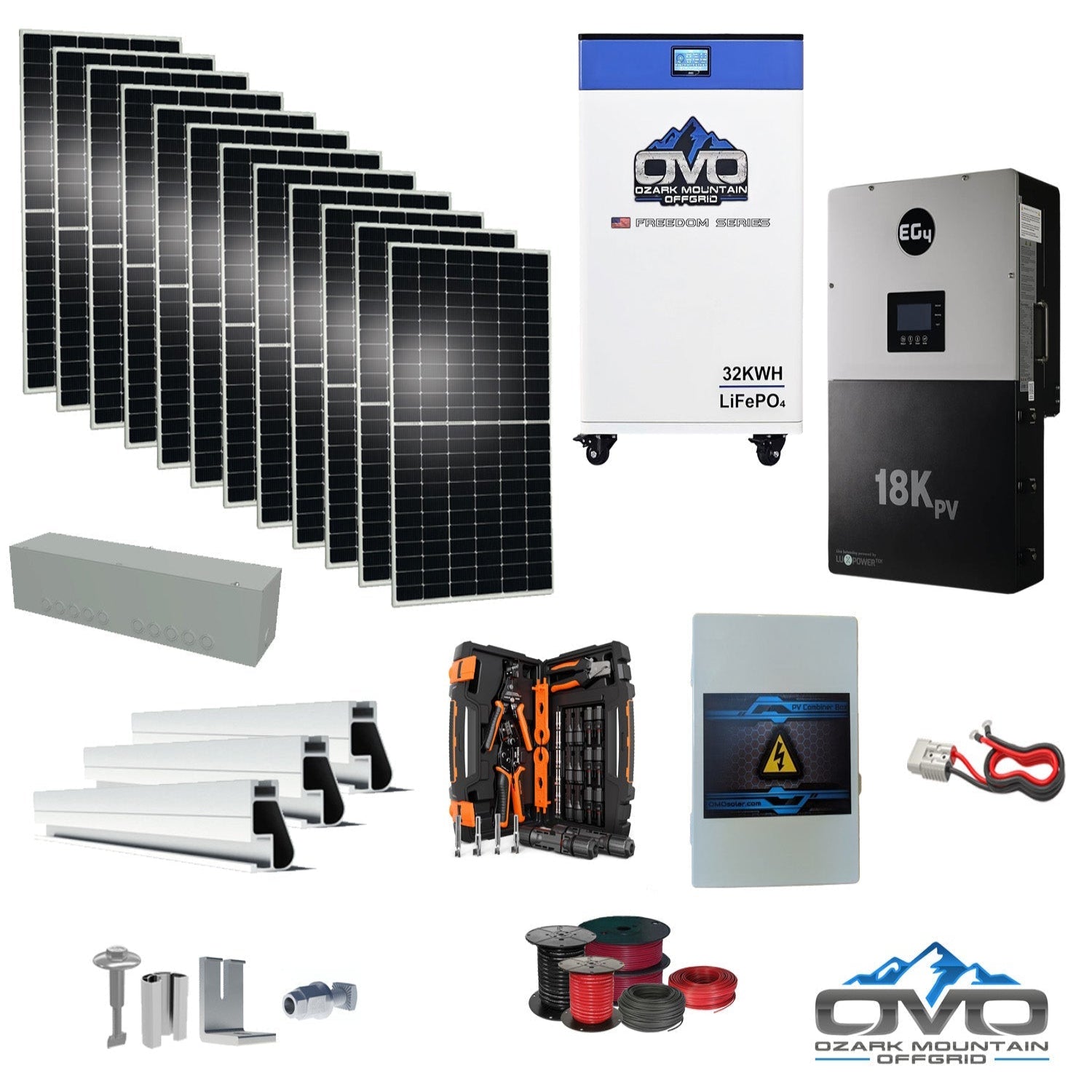

6KW Complete Offgrid Solar Kit + EG4 18kPV Inverter + 32KW OMO 48V Freedom Series Lithium Battery + 6.6KW Solar with Roof Mounting Rails and Wiring

The 6KW Complete Offgrid Solar Kit + EG4 18kPV Inverter + 32KW OMO 48V Freedom Series Lithium Battery + 6.6KW Solar with Roof Mounting Rails and Wiring provides a powerful, expandable off-grid energy solution ideal for cabins, shops, small homes, and remote buildings. Equipped with a massive 32kWh OMO 48V Freedom Series Heated Lithium Battery (with Bluetooth + LCD Readout), a EG4 18kPV 48V split-phase hybrid inverter, and a high-output 6.6KW bifacial solar array, this system delivers approximately 29,700 watts of solar energy per day under 4.5 hours of peak sunlight. Designed for users consuming around 920kWh/month, this kit is fully scalable and supports future expansions in both panels and battery capacity.

Specifications

• Solar Panels: 12× 550W bifacial double-glass panels (6,600W total)

• Inverter: EG4 18kPV — 48V split-phase hybrid inverter/charger

• Battery: 32kWh OMO 48V Freedom Series Heated Lithium Battery with Bluetooth & LCD Screen

• Mounting System: Complete Iron Ridge roof-mount system — rails, splices, legs, fasteners, bolts

• Protection & Wiring: Solar combiner box, gutter box, 500′ PV direct-burial wire, 100′ 6 AWG AC cable

• Battery Cabling: Anderson Plug battery cable set

• Tools: MC4 crimp kit

• Documentation: Full installation manual

• Panel Durability: 5400 PA snow load / 2400 PA wind load; 30-year power warranty

Features

• Bifacial Solar Modules: Up to 25% rear-side energy gain, excellent for cloudy/low-light conditions

• High-Capacity Heated Battery: Ensures safe operation in cold climates, with Bluetooth monitoring + onboard LCD data

• Off-Grid Ready: Capable of running wells, refrigerators, freezers, lights, electronics, washing machines, fans, TVs, and small AC systems

• Expandable System: Add additional solar panels or batteries as energy needs grow

• DIY-Friendly: Homeowners with basic wiring experience can install; roof mounting requires the most labor

Maintenance

• Daily: Ensure solar panels are free from obstructions and debris

• Weekly: Inspect inverter performance, battery state of charge, and system alerts

• Annually: Check all mechanical fasteners, wiring connections, and thoroughly clean all solar panels

Warranty

• Solar Panels: 30-year performance warranty

• EG4 18kPV Inverter: Manufacturer warranty included

• OMO Freedom Series Battery: Manufacturer warranty included
