6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
Ozark Mountain Offgrid

6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount

Sale price$15,086.50
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount
6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount Sale price$15,086.50

6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount

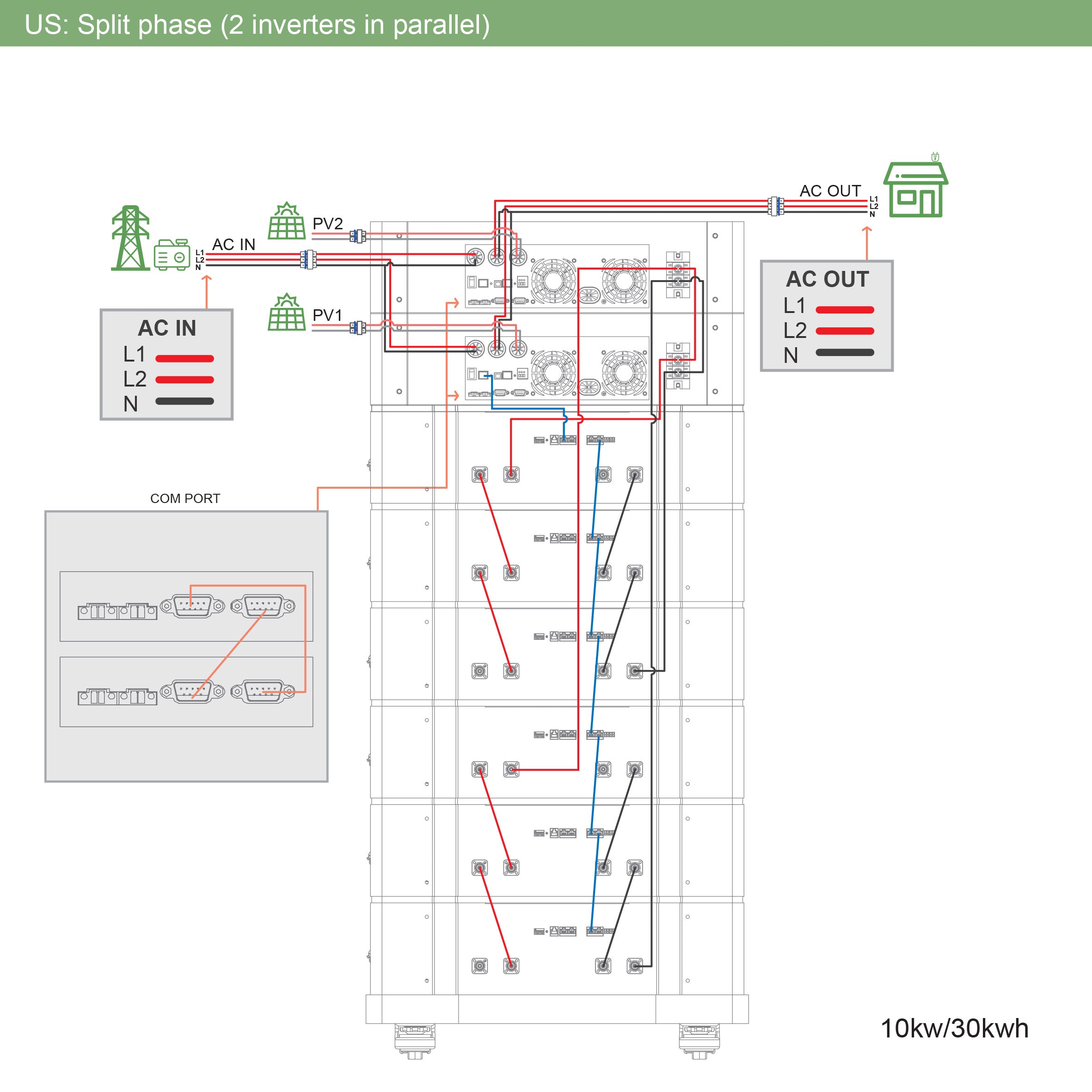

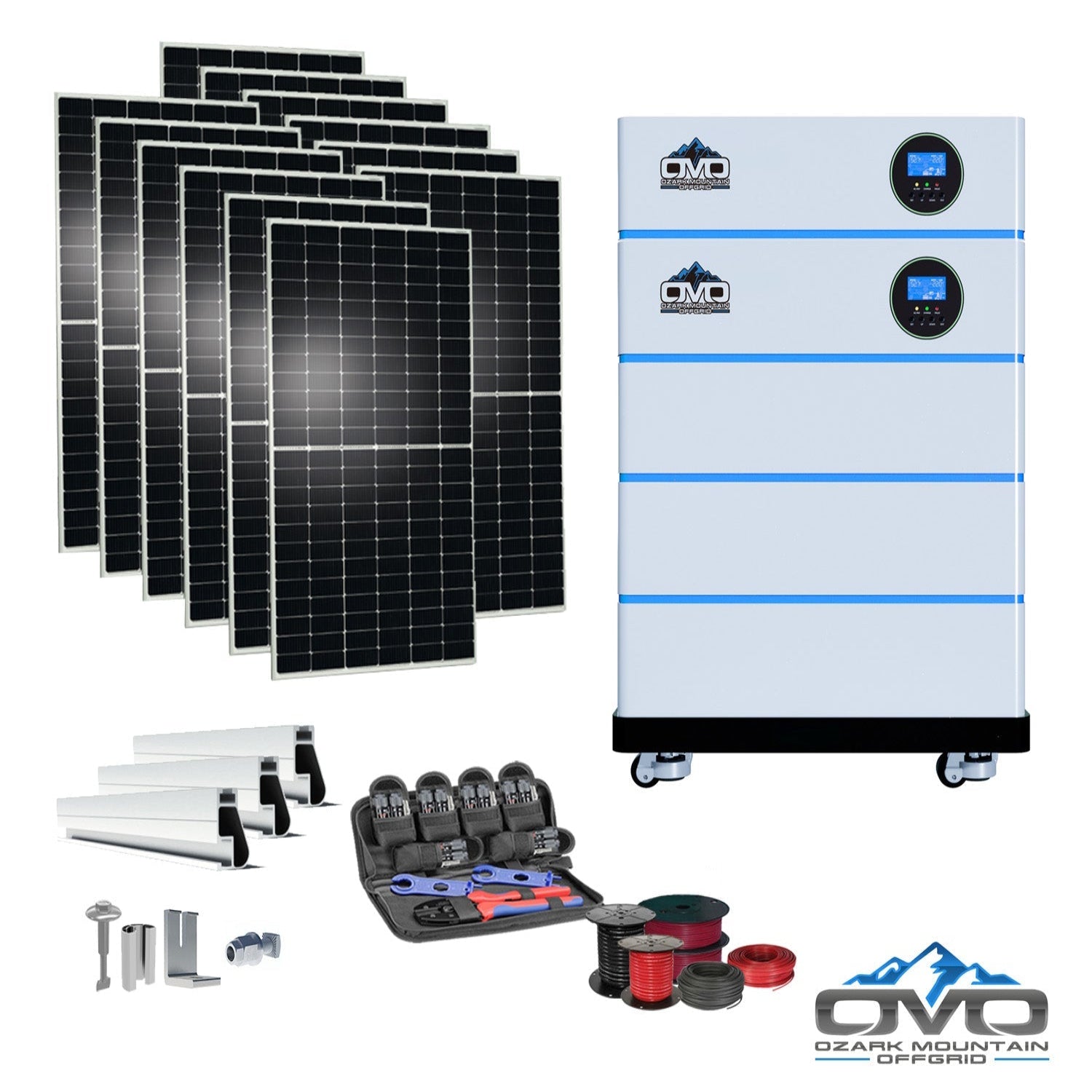

The 6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 6.6KW Solar Roof Mount is a customizable split-phase 120/240V solution that bundles stackable inverters, expandable heated lithium batteries, and a high-output bifacial solar array. Delivered with roof-mount hardware, wiring, tools, and smart monitoring, this base kit is ready to install and designed to scale as your energy needs grow.

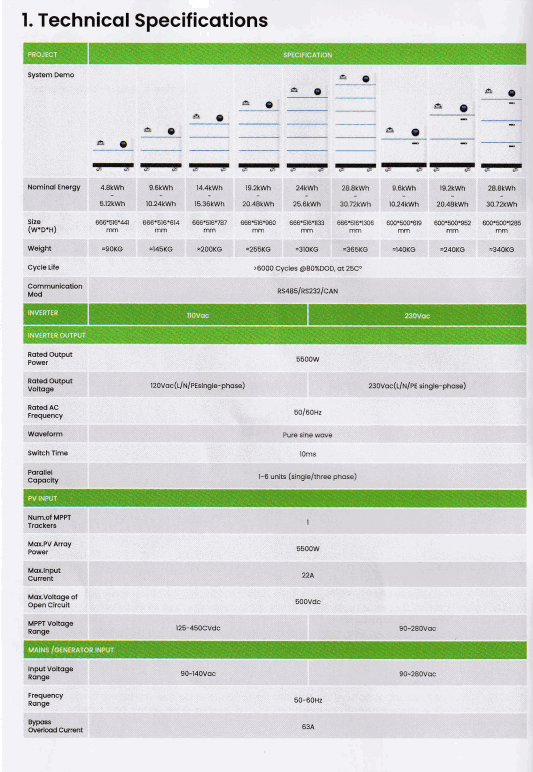

Specifications

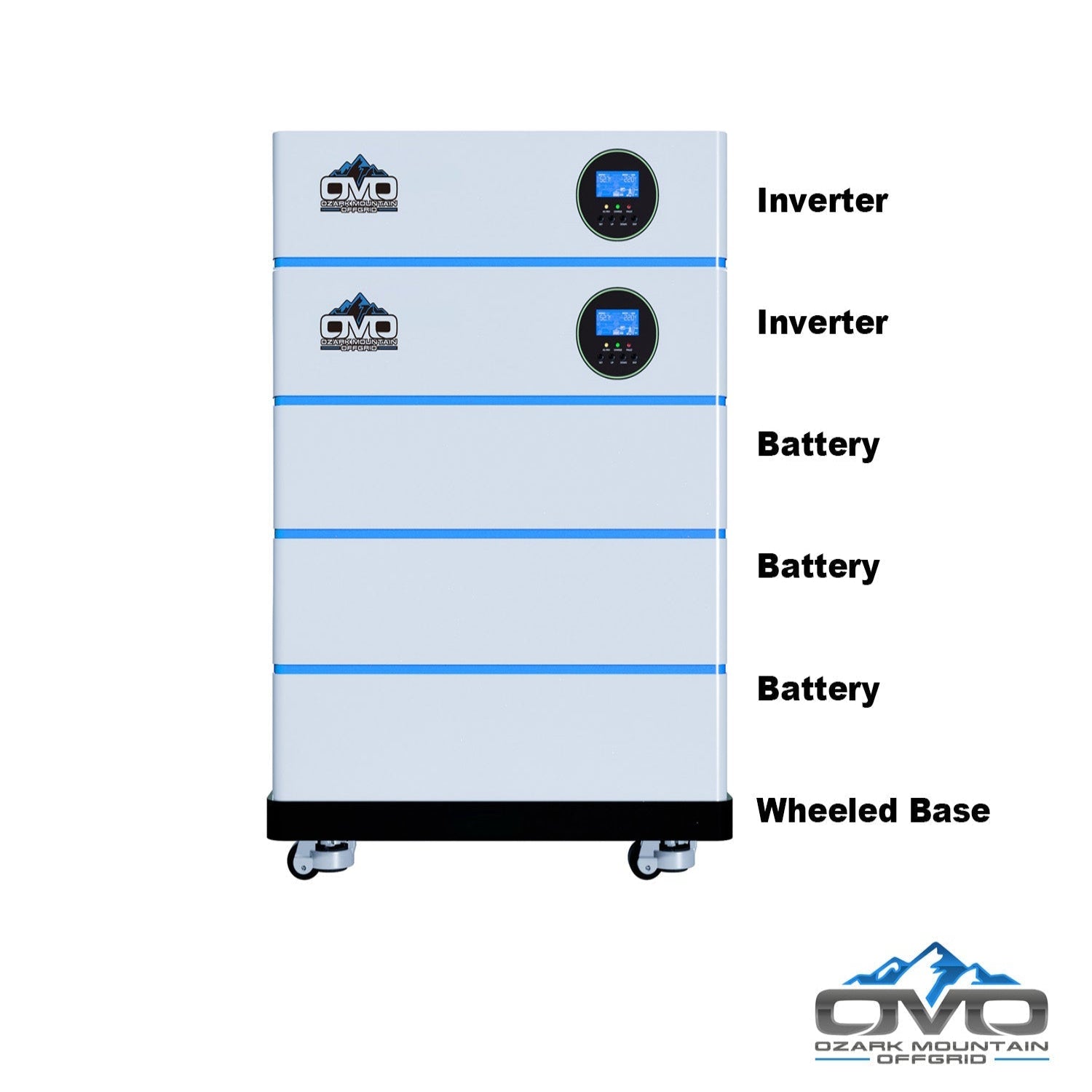

  • Inverters: 2× OMO 5500W 120/240VAC 60Hz Pure Sine Stackable (11,000W total output)

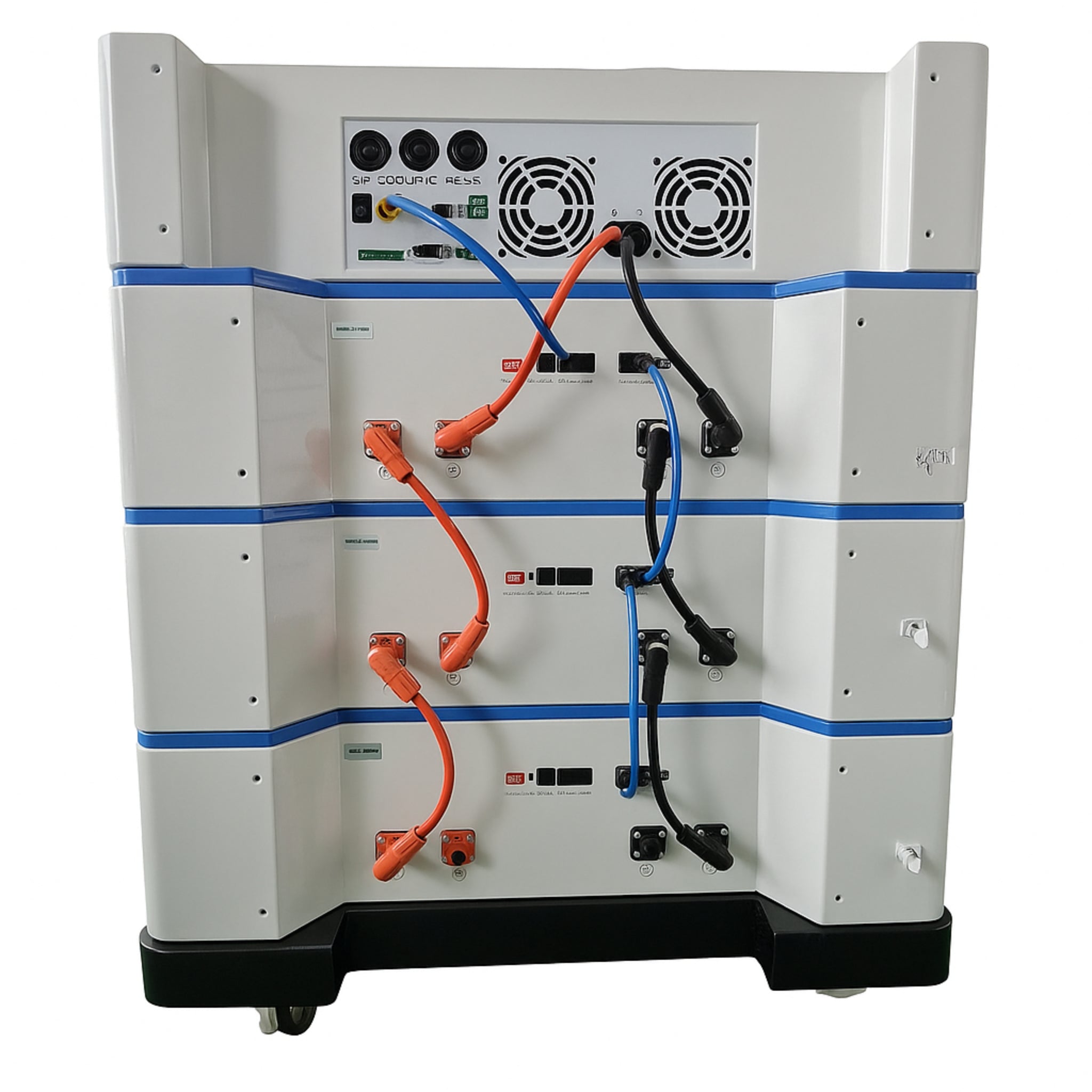

  • Batteries: 3× 51.2V 5.12kWh Stackable Heated LiFePO₄ with Bluetooth (expandable to 6 per inverter)

  • Solar Array: 12× 550W bifacial mono panels (6,600W total; up to 10 panels per inverter)

  • Mounting: Iron Ridge roof-mount rails, splices, L-feet, fasteners & bolts

  • Included: OMO stack system wheeled base, MC4 crimper tool set, 500' 10AWG PV wire, 100' 6AWG AC cable

Features

  • Bifacial Double-Glass Panels: Up to 25% rear-side gain, enhanced low-light output; 5400 PA snow / 2400 PA wind; 30-year power warranty

  • Scalable Architecture: Add batteries (to 6 per inverter) and panels (to 10 per inverter) as needs increase

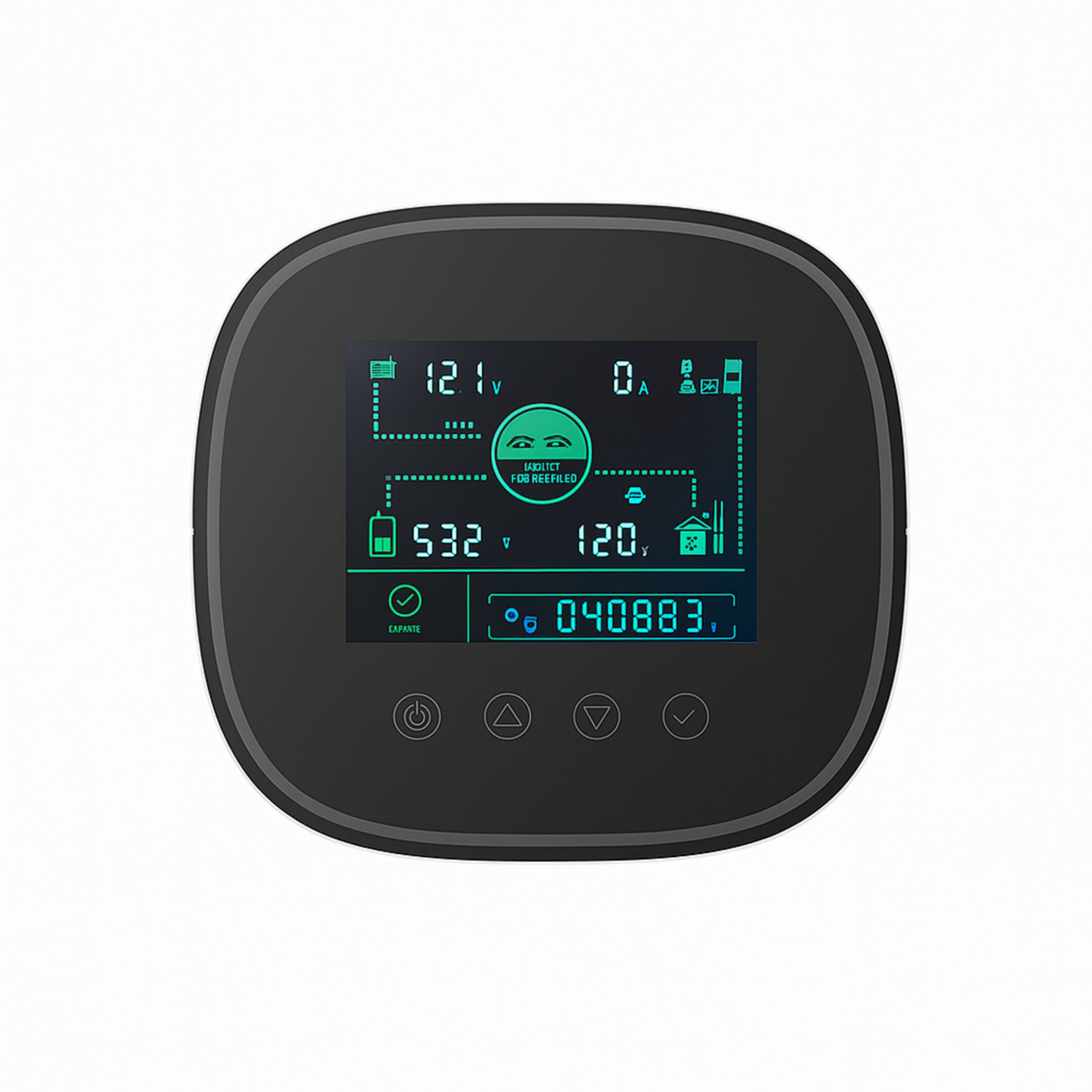

  • Smart Monitoring: Built-in WiFi & Bluetooth for real-time system visibility

  • Integrated MPPT: 5,500W PV rated input each, 22A max PV in each, 125–450V DC MPPT range

  • High Power Output: 5,500W pure-sine AC per inverter; up to 6 units in parallel

  • Grid/Generator Support: 90–140VAC input with 63A bypass current capability

Maintenance

  • Daily: Verify inverter status, ensure panels are clear of shading/debris

  • Weekly: Inspect wiring and terminations; review battery temps and Bluetooth readings

  • Annually: Tighten roof-mount hardware, clean electronics vents, and review system logs

Warranty

  • Solar Panels: 30-year power warranty

  • Inverters & Batteries: Manufacturer warranties apply
