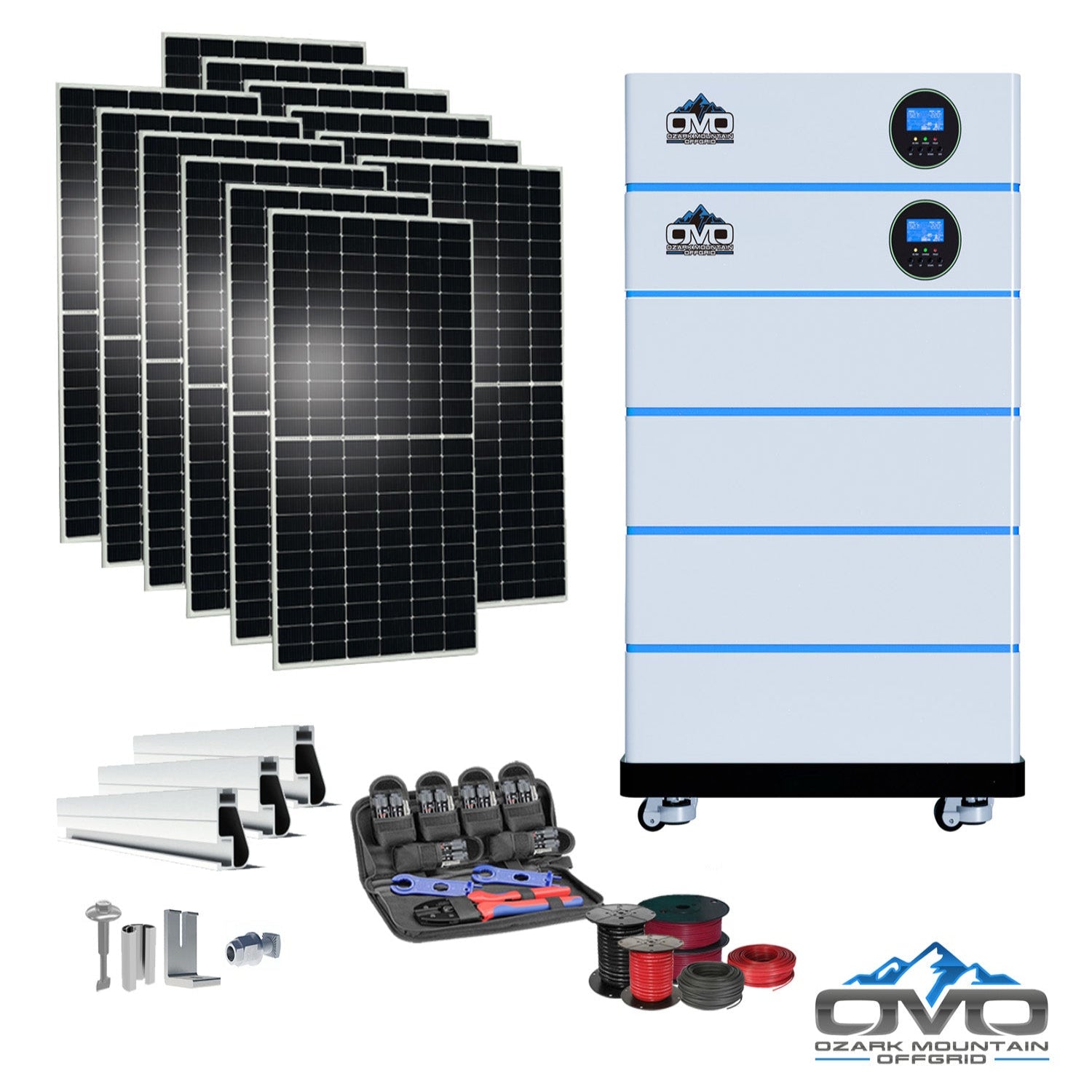

6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48K Lithium Battery + 6.6KW Solar Roof Mount

The 6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48K Lithium Battery + 6.6KW Solar Roof Mount is a complete, customizable power solution designed for homeowners, cabins, workshops, and off-grid living. This system includes dual stackable inverters, four expandable heated lithium batteries, a high-efficiency bifacial solar array, and all required mounting hardware and wiring—making it fully installation ready and expandable for future growth.

Specifications

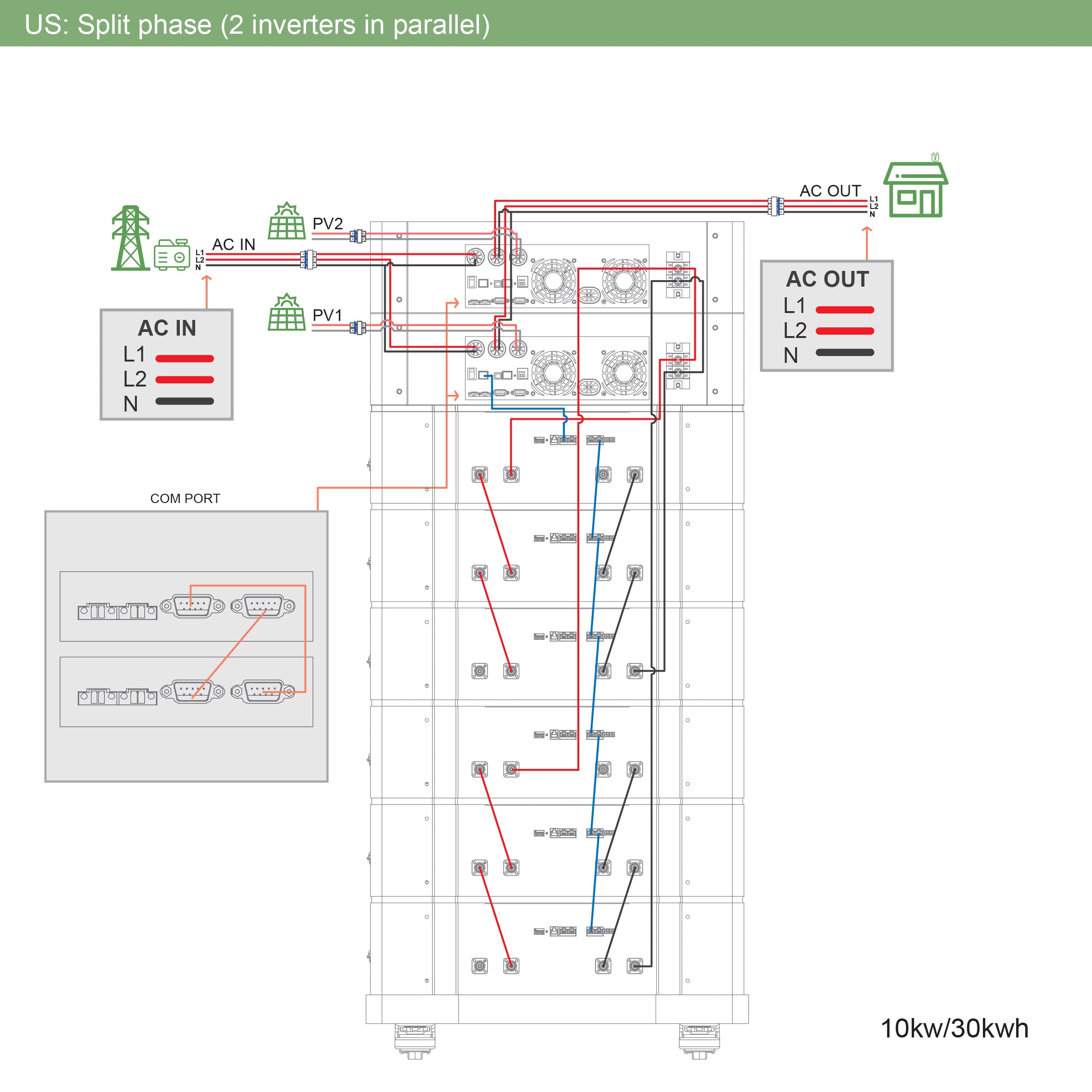

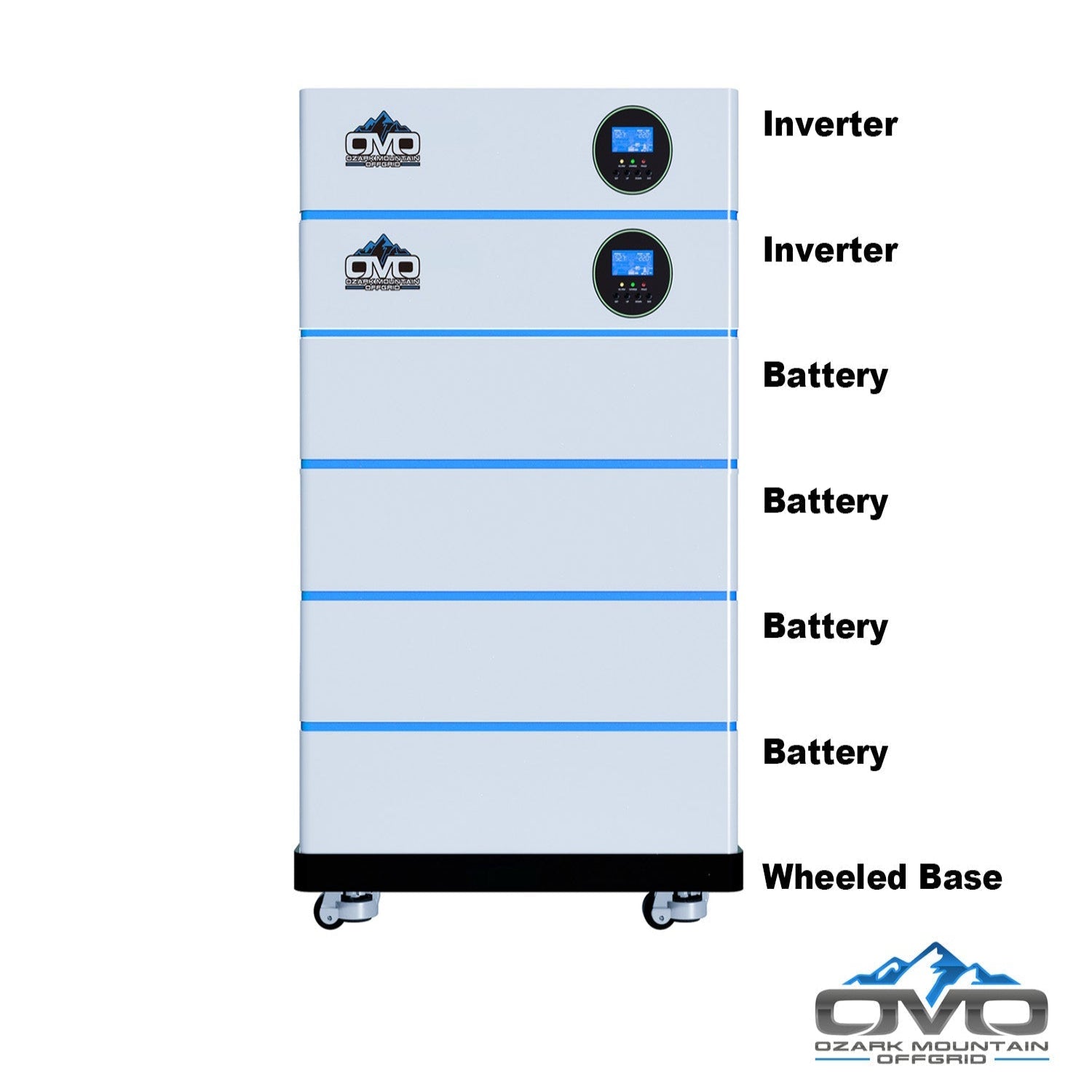

• Inverters: 2× OMO 5500W 120/240VAC Stackable Pure Sine Wave Inverters (11,000W total output)

• Batteries: 4× 51.2V 5.12kWh Heated Stackable LiFePO₄ Batteries with Bluetooth (expandable to 6 per inverter)

• Solar Array: 12× 550W bifacial mono solar panels (6,600W total; expandable to 10 panels per inverter)

• Mounting Hardware: Iron Ridge roof-mount rails, L-feet, splices, fasteners, and bolts

• Included Accessories: OMO stack system wheeled base, MC4 crimper tool, 500' 10AWG PV wire, 100' 6AWG AC cable

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side solar gain, excellent low-light performance, 5400 PA snow load, 2400 PA wind load, 30-year power warranty

• Expandable System: Add solar panels or batteries to create a fully customized solar solution

• Built-In MPPT Charge Controller: 5500W PV input, 22A max PV input, and 125–450V MPPT tracking per inverter

• High Output: 5500W pure sine AC output per inverter with support for up to 6 units in parallel

• Grid/Generator Support: 90–140VAC input with 63A bypass capability

• Smart Monitoring: WiFi + Bluetooth system monitoring included

Maintenance

• Daily: Ensure solar panels remain clear of shading, snow, or debris

• Weekly: Review inverter/battery monitoring data and inspect wiring runs

• Annually: Tighten roof-mount hardware, check all terminals, and perform full system diagnostics

Warranty

• Solar Panels: 30-year power warranty

• Inverters & Batteries: Manufacturer warranties apply
