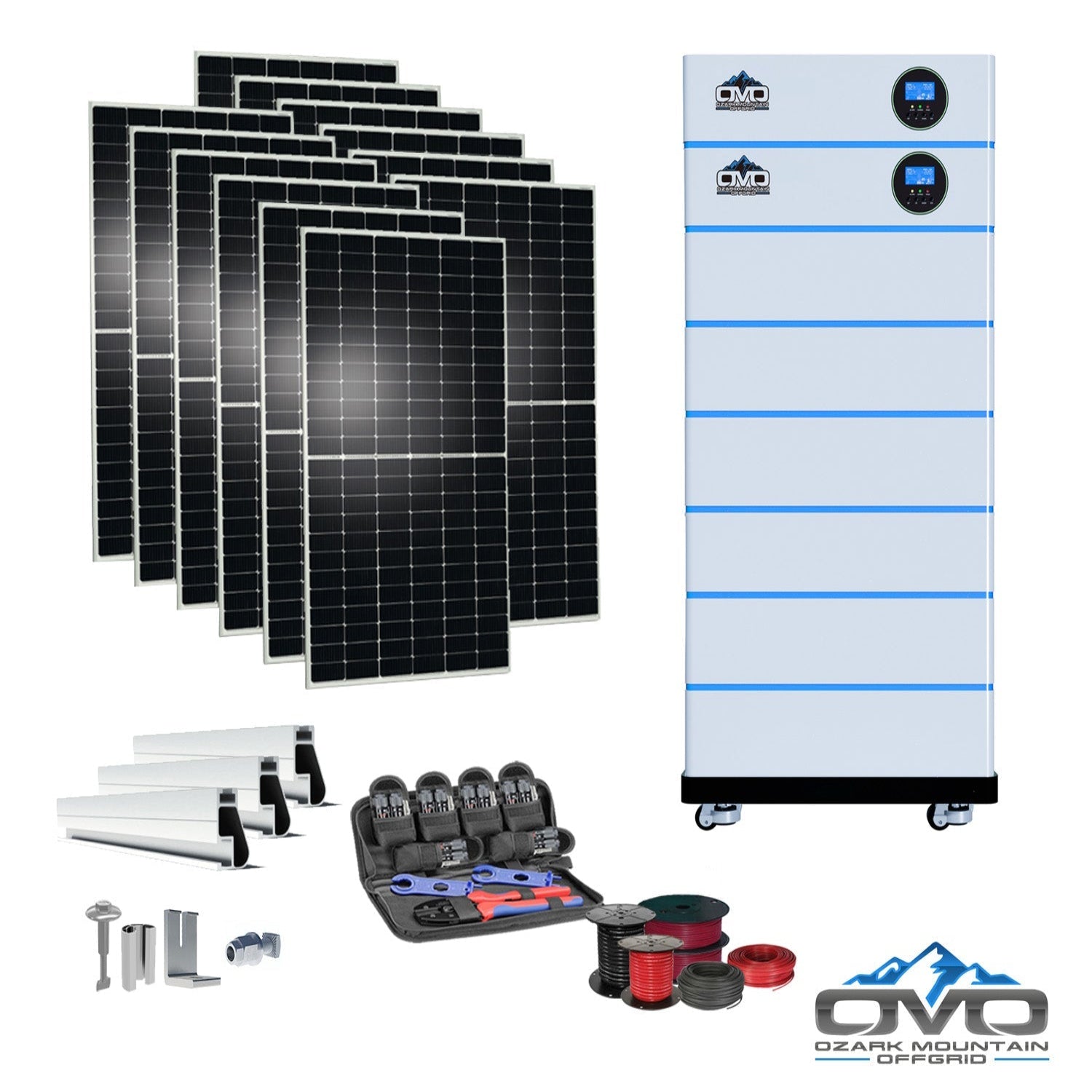

6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 30.72K Lithium Battery + 6.6KW Solar Roof Mount

The 6KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 30.72K Lithium Battery + 6.6KW Solar Roof Mount is a complete, customizable off-grid power package engineered for high-demand residential and remote applications. With dual stackable inverters, six heated lithium batteries, a powerful bifacial solar array, and full mounting/wiring hardware, this system ensures exceptional reliability and expandability for long-term off-grid energy independence.

Specifications

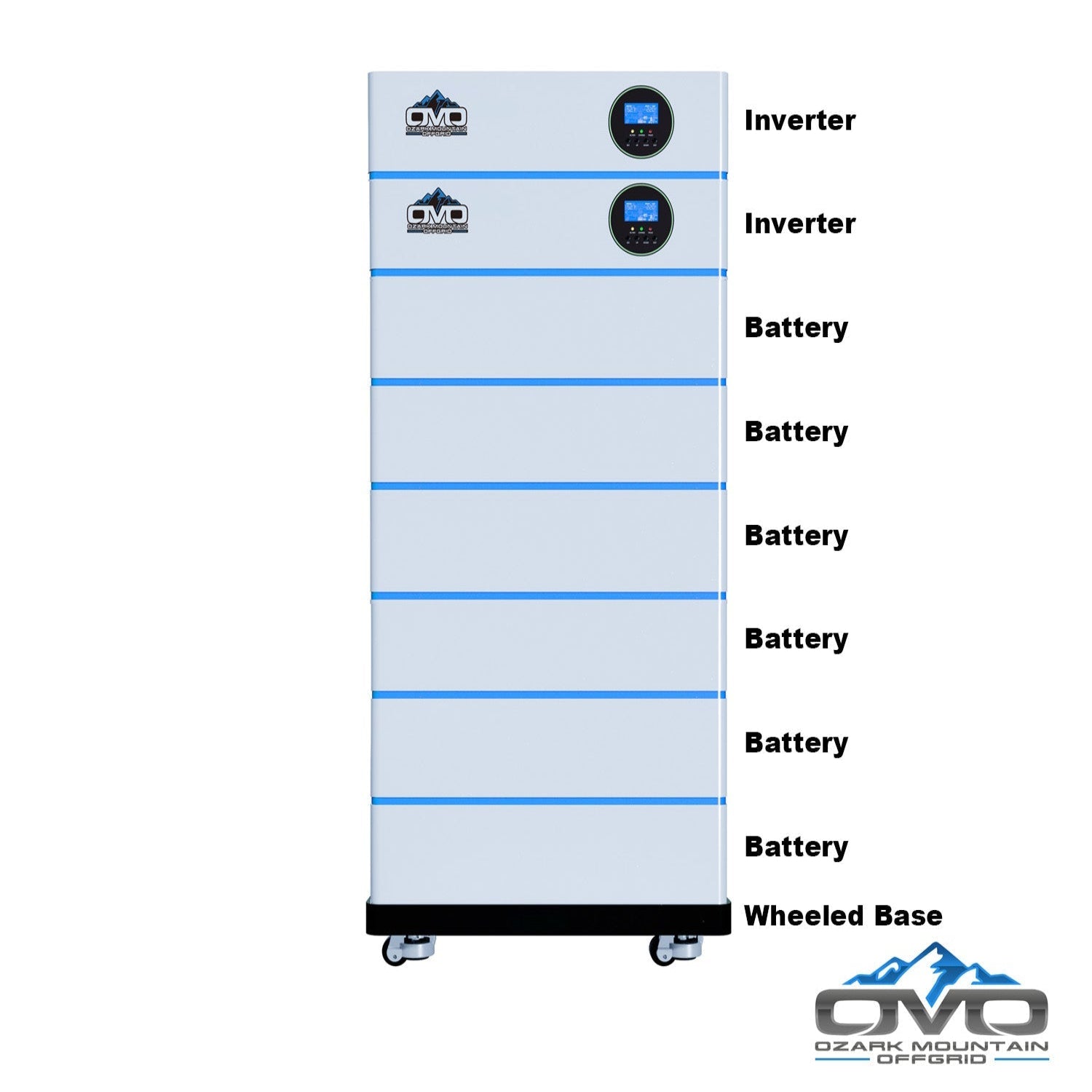

• Inverters: 2× OMO 5500W 120/240VAC Pure Sine Wave Stackable Inverters (11,000W total output)

• Batteries: 6× 51.2V 5.12kWh Heated Stackable LiFePO₄ Batteries with Bluetooth (maximum 6 per inverter)

• Solar Array: 12× 550W bifacial double-glass panels (6,600W total; expandable up to 10 panels per inverter)

• Mounting Hardware: Iron Ridge roof-mount rails, splices, L-feet, fasteners, and bolts

• Additional Components: OMO wheeled stack base, MC4 crimper set, 500' 10AWG PV wire, 100' 6AWG AC cable

Features

• Bifacial Solar Panels: Up to 25% rear-side energy gain, high performance in low-light, 5400 PA snow load, 2400 PA wind load, 30-year power warranty

• Fully Expandable: Add more panels or batteries as energy requirements increase

• Integrated MPPT Controllers: 5500W PV input, 22A max, 125–450V DC MPPT range (per inverter)

• High Output Performance: 5500W pure sine AC output per inverter; supports up to 6 units in parallel

• Grid & Generator Inputs: 90–140VAC with 63A bypass for backup integration

• Smart Monitoring: Built-in WiFi & Bluetooth for real-time system tracking

Maintenance

• Daily: Ensure solar panels remain free of shading, dust, and debris

• Weekly: Review inverter & battery status through the monitoring app

• Annually: Inspect wiring, tighten roof hardware, and perform full diagnostic maintenance

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Batteries: Manufacturer warranties included
