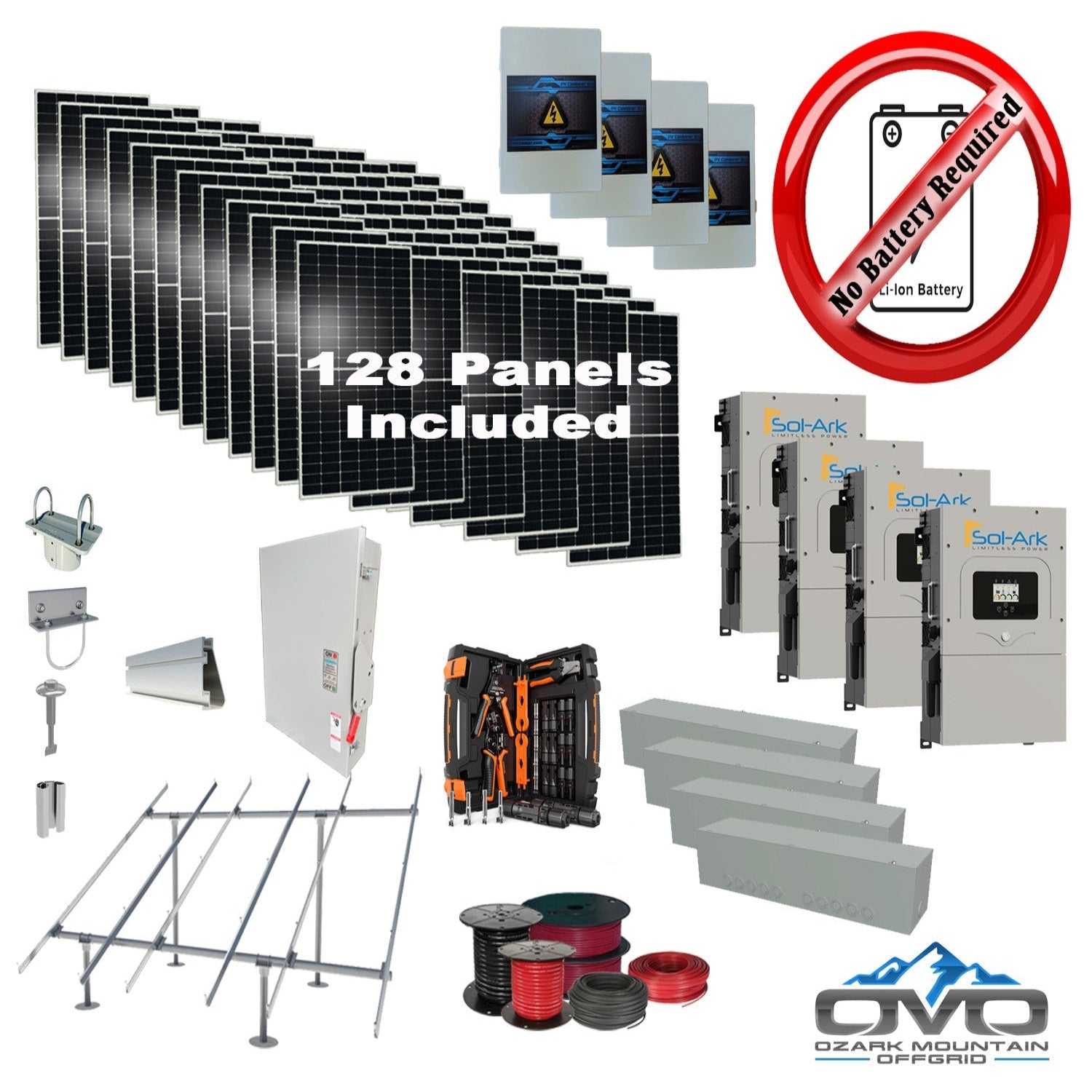

70KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter +70.4KW Solar with Ground Mount and Wiring

The 70KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter +70.4KW Solar with Ground Mount and Wiring is engineered for large homes, farms, and high-demand off-grid properties. Producing approximately 316,800 watts per day (based on 4.5 hours of sun), this system is ideal for locations using around 9,500 kWh per month. Designed for long-term scalability, it can be expanded with additional solar panels or batteries as energy needs grow.

This kit can operate with or without a battery. A 48V battery bank may be added at any time for additional storage.

Specifications

• Solar Panels: 128 × 550W bifacial mono solar panels (70,400W array)

• Inverters: 4 × Sol-Ark 15K 48V hybrid/off-grid inverters with built-in MPPT charge controllers

• Ground Mount Hardware: Complete Iron Ridge ground-mount rail system including top caps, rail connectors, fasteners, and bolts (customer provides 3" schedule 40 pipe locally)

• Wiring & Components: 4 × PV combiner boxes, 2 × 500' spools of 10AWG MC4 solar cabling, 1 × MC4 crimper tool set, 2 × 100' 6AWG AC output/input generator cabling, 2 × 20' 2/0 AC main line spools, 4 × wire gutter boxes, 1 × AC combiner box kit (supports 2+ Sol-Ark units), installation manual

Features

• High-Efficiency Bifacial Panels: Double-glass bifacial design captures up to 25% extra energy from rear reflection and performs exceptionally in low-light, cloudy, or hazy conditions. Rated for 5400PA snow load and 2400PA wind load.

• Battery-Optional Operation: Sol-Ark inverters allow full system operation with or without batteries; 48V battery storage can be added anytime.

• Triple MPPT Tracking: Each inverter includes 3× MPPT inputs for maximum solar harvesting efficiency.

• Smart System Controls: LCD touchscreen monitoring, WiFi connectivity, generator support, and 97.5% inverter efficiency.

• Scalable Power: Parallel stacking supports up to 8 Sol-Ark 15K units for future system expansion.

• Fast Transfer Time: 4ms transfer from batteries to grid power ensures smooth operation.

Maintenance

• Daily: Monitor production levels and inverter output through the Sol-Ark display or app.

• Weekly: Inspect solar wiring, combiner boxes, and mounting hardware.

• Annually: Clean solar panels, check all rail and pipe-mount bolts, and perform a full electrical checkup.

Warranty

• Solar Panels: 30-year performance warranty

• Sol-Ark Inverters: 10-year manufacturer warranty
