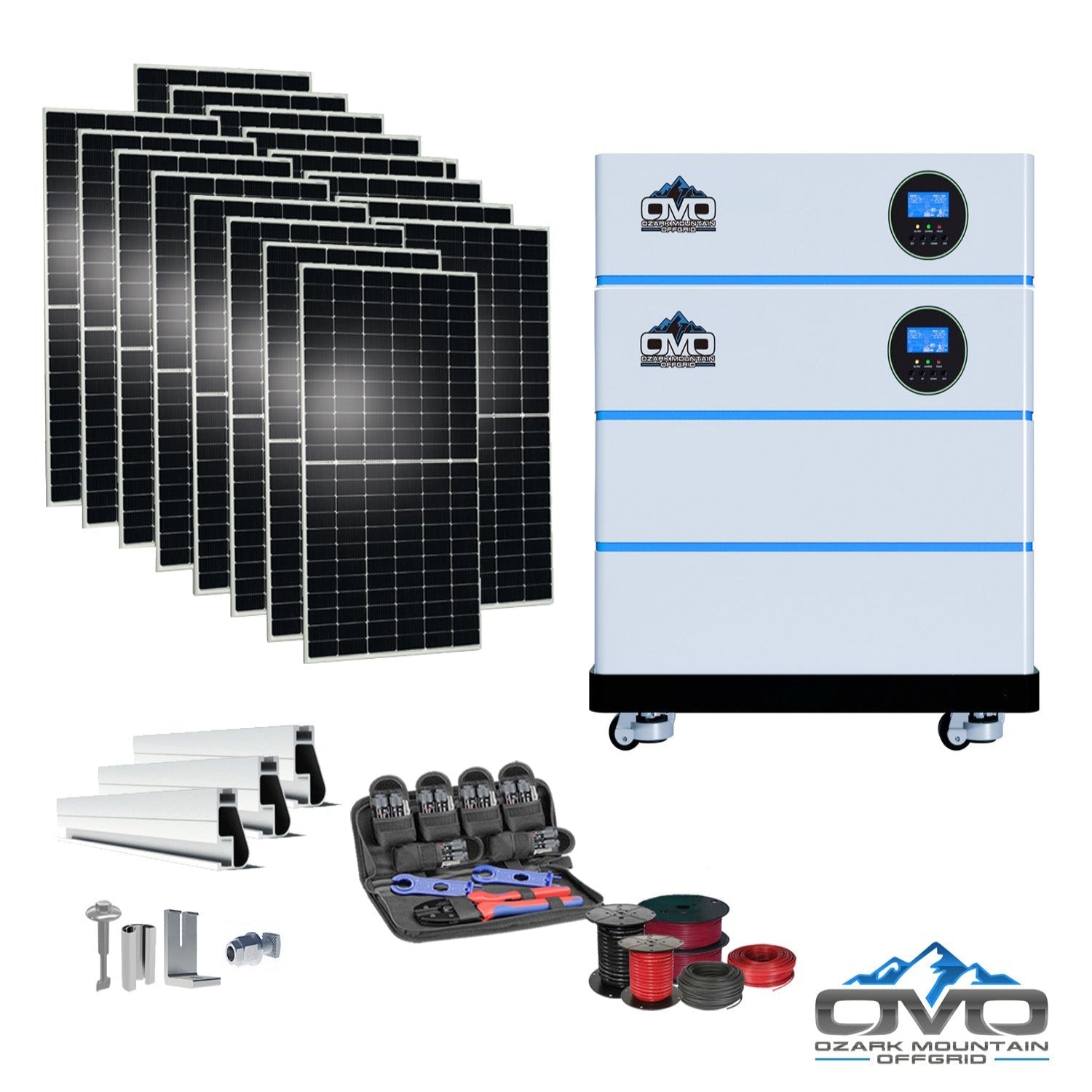

8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 10.24K Lithium Battery + 8.8KW Solar Roof Mount

The 8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 10.24K Lithium Battery + 8.8KW Solar Roof Mount  is a fully customizable off-grid energy solution engineered for dependable whole-home, cabin, or small commercial backup power. Designed around stackable inverters, expandable heated batteries, and high-efficiency bifacial solar panels, this system delivers exceptional performance and long-term reliability. With modular expansion options and a mobile wheeled base, it offers both portability and the ability to scale your system as your power needs grow.

Specifications

• Inverters: 2× OMO 5500W 120/240VAC Pure Sine Wave Stackable Inverters (11,000W total output)

• Batteries: 2× 51.2V 5.12kWh Stackable Heated Batteries with Bluetooth (expandable up to 6 batteries per inverter)

• Solar Panels: 16× 550W Bifacial Mono Panels (8,800W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge roof-mount kit with rails, splices, L-feet, fasteners, and bolts

• Cabling: 500' PV-rated 10AWG direct burial solar wire + 100' 6AWG AC output/input/generator cable

• Tools: MC4 crimper tool set

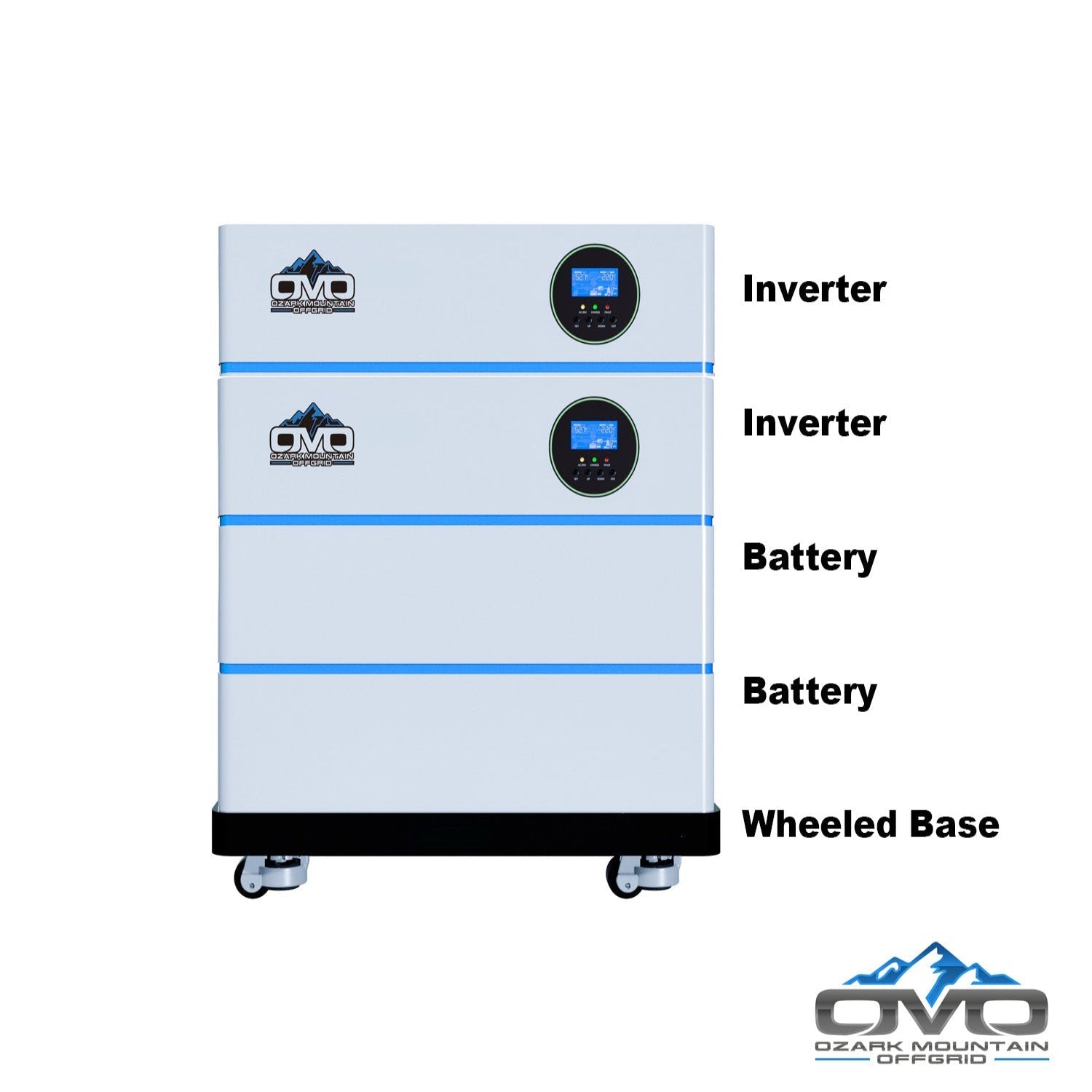

• Base: OMO stack-system wheeled base for mobility and easy installation

• Panel Durability: 5400 PA snow load / 2400 PA wind load

• Panel Warranty: 30-year power warranty

Features

• Bifacial Solar Technology: Generates up to 25% additional rear-side power, improving production in cloudy or low-light conditions

• Expandable System: Add solar panels and batteries up to system maximum limits; scalable for long-term energy needs

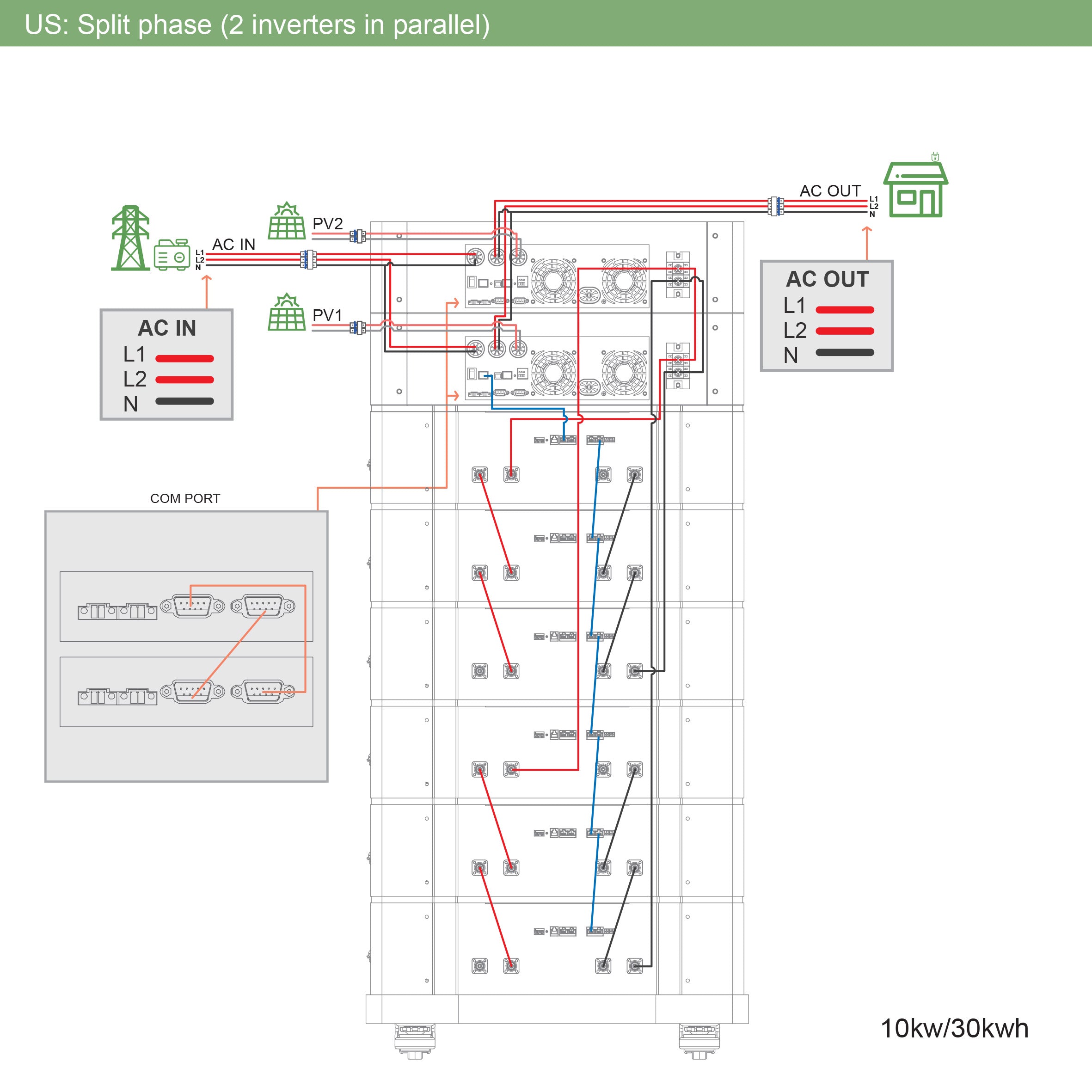

• 120/240V Split Phase Output: Suitable for whole-home off-grid applications

• Heated Batteries: Ensures performance and safe charging in cold climates

• Bluetooth Monitoring: Real-time battery insights via mobile app

• Customizable Design: System can be configured based on usage, climate, and property requirements

Inverter Specifications

• MPPT Charge Controller: 5500W PV input rating per inverter

• Max Solar Current: 22A input each

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave each

• Parallel Capacity: Supports up to 6 units in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass current

• Monitoring: Built-in WiFi & Bluetooth

Maintenance

• Daily: Monitor inverter status and ensure panels are unobstructed

• Weekly: Inspect exposed wiring and remove debris from solar panels

• Annually: Check mounting hardware, battery connections, and system calibration

Warranty

• Solar Panels: 30-year performance warranty

• Inverters: Manufacturer warranty (varies by model; contact for details)
