8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6K Lithium Battery + 8.8KW Solar Roof Mount

The 8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6K Lithium Battery + 8.8KW Solar Roof Mount  is a customizable, expandable, and high-performance off-grid solution designed to meet demanding whole-home or cabin energy needs. With powerful stackable inverters, upgraded heated battery storage, and high-efficiency bifacial panels, this system delivers dependable 120/240V split-phase power with room to scale for future energy demands.

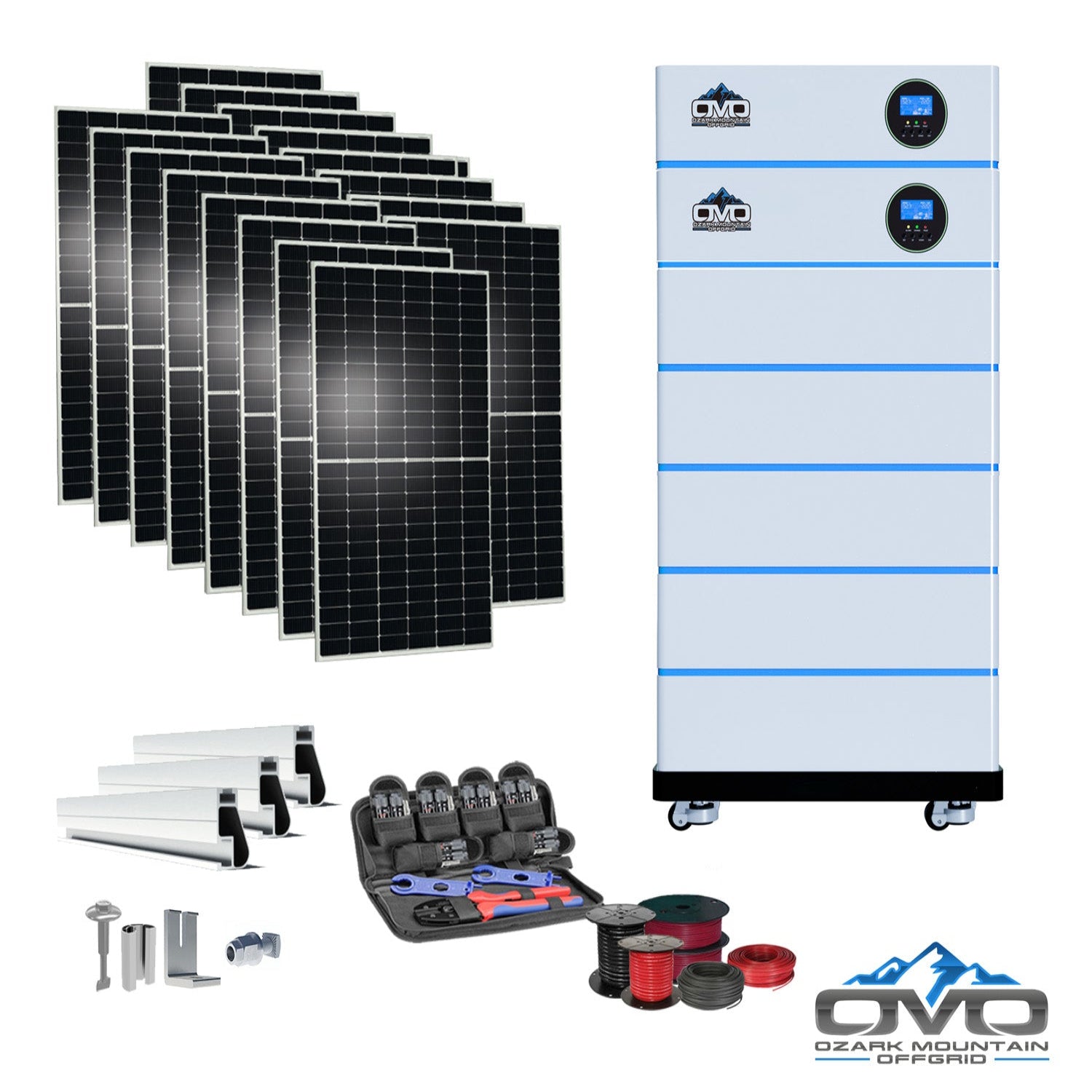

Specifications

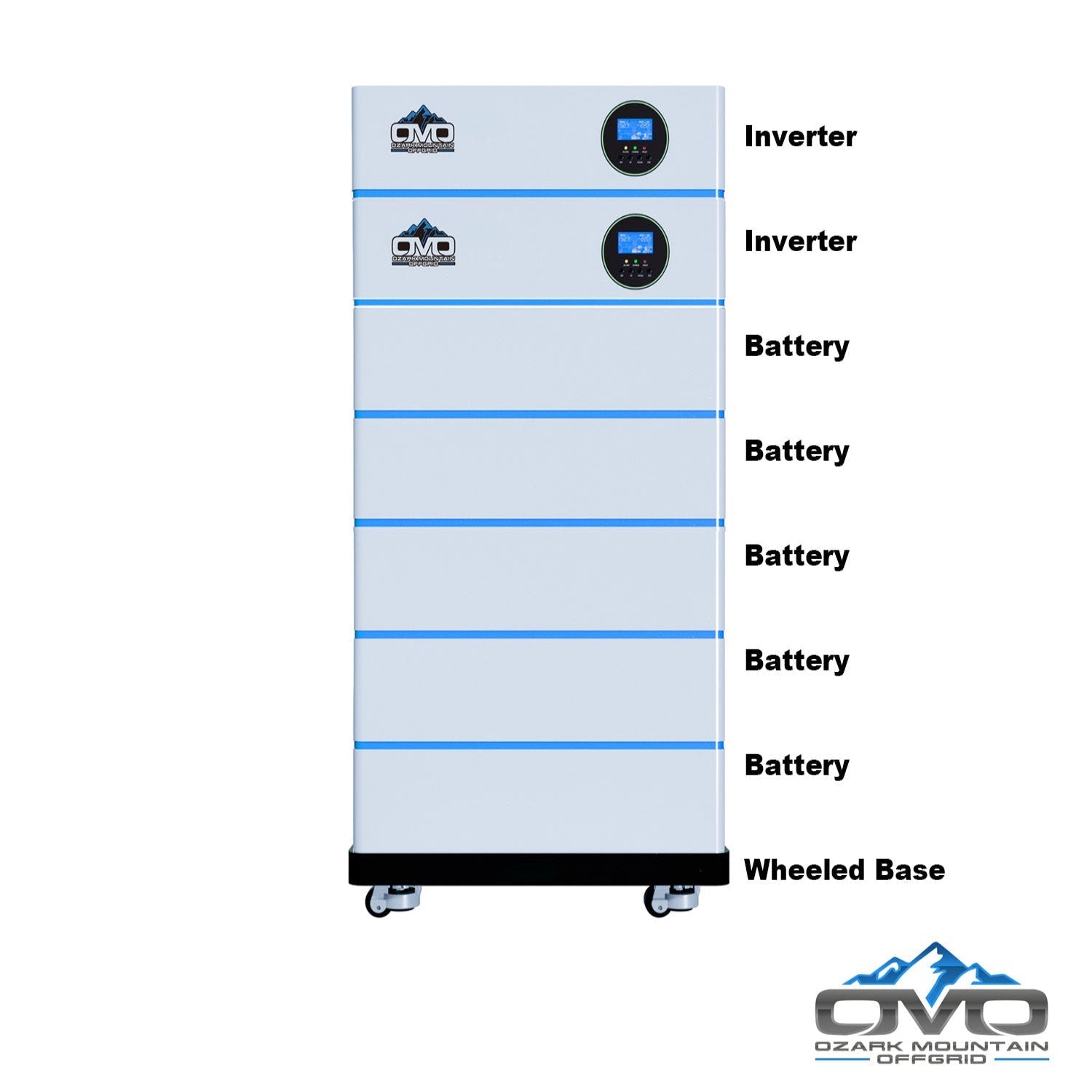

• Inverters: 2× OMO 5500W 120/240VAC Pure Sine Wave Stackable Inverters (11,000W total output)

• Batteries: 5× 51.2V 5.12kWh Stackable Heated Batteries w/ Bluetooth (expandable up to 6 per inverter)

• Base: OMO Stack System Wheeled Base for simplified transport and installation

• Solar Panels: 16× 550W Bifacial Mono Panels (8,800W array; expandable up to 10 panels per inverter)

• Mounting Hardware: IronRidge roof-mount rails, splices, L-feet, bolts, and fasteners

• Cabling: 500' roll of 10AWG PV direct-burial solar wire + 100' roll of 6AWG AC output/input/generator cable

• Tools Included: MC4 crimper tool set

• Panel Durability: Rated for 5400 PA snow load & 2400 PA wind load

• Panel Warranty: 30-year performance warranty

Features

• Bifacial Solar Panels: Produces up to 25% additional rear-side solar gain for higher efficiency in low-light conditions

• Scalable System: Expand batteries and solar panels to system maximums for future energy needs

• Heated Lithium Batteries: Maintains safe operation and charging in cold environments

• 120/240V Split-Phase Power: Suitable for whole-home off-grid usage, tools, pumps, and appliances

• Bluetooth Monitoring: Real-time battery data available via mobile app

• Flexible System Design: Can be tailored to your home, climate, and power requirements

Inverter Specs

• MPPT Charge Controller: 5500W PV rated input per inverter

• Max PV Current: 22A per inverter

• MPPT Operating Range: 125–450V DC

• AC Output: 5500W pure sine wave per inverter

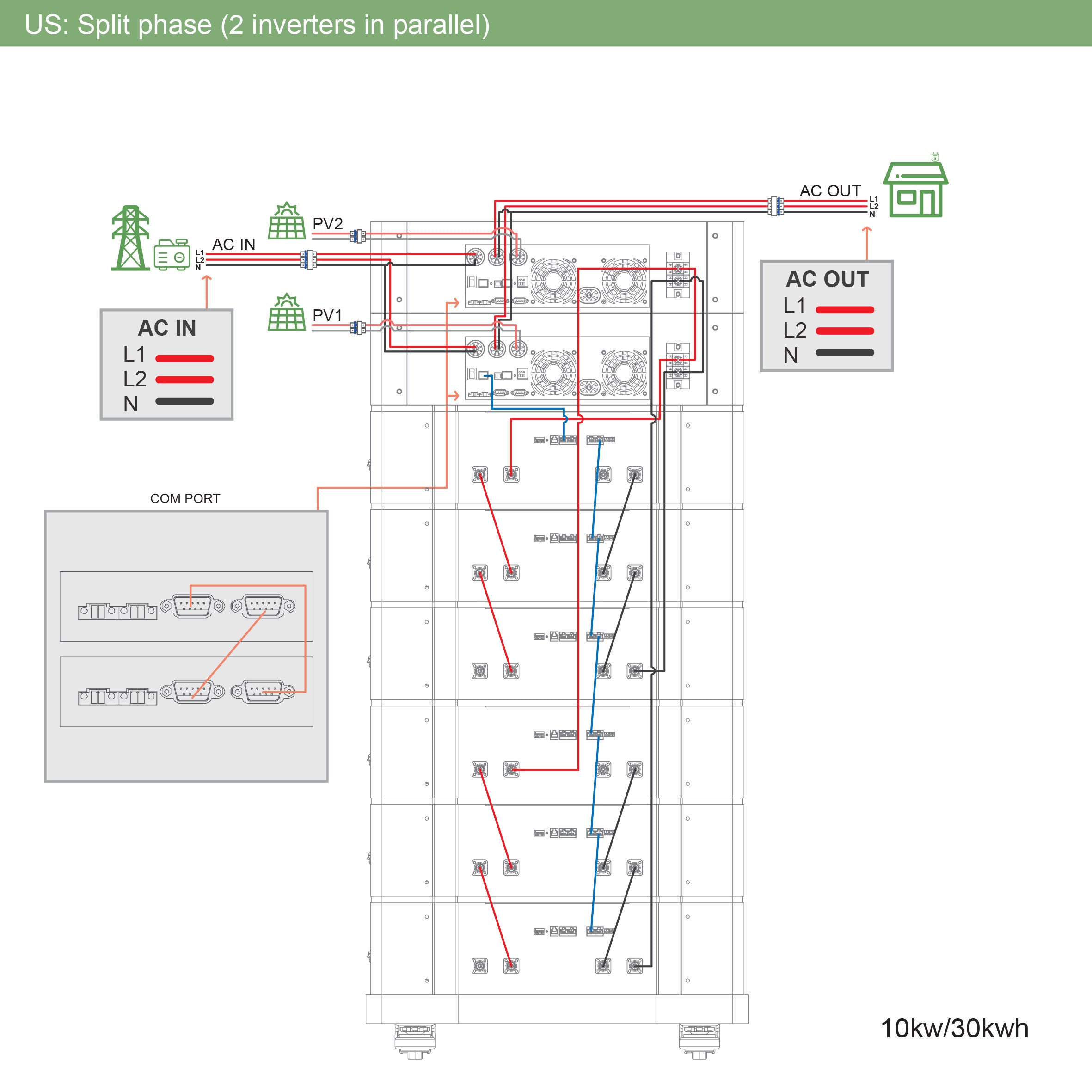

• Parallel Capability: Supports up to 6 inverters in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass capability

• Monitoring: Built-in WiFi & Bluetooth connectivity

Maintenance

• Daily: Check inverter display and ensure panels are clear of debris

• Weekly: Inspect wiring, mounting hardware, and panel surfaces

• Annually: Perform full system inspection, tighten electrical connections, and review performance logs

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Batteries: Manufacturer warranty available upon request
