8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12K Lithium Battery + 8.8KW Solar Roof Mount

The 8KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12K Lithium Battery + 8.8KW Solar Roof Mount is a fully customizable, scalable, and high-efficiency off-grid solution engineered to meet a wide range of energy needs. Designed around stackable inverters, heated lithium batteries, and powerful bifacial solar panels, this system delivers reliable 120/240V split-phase output ideal for homes, cabins, workshops, and remote sites.

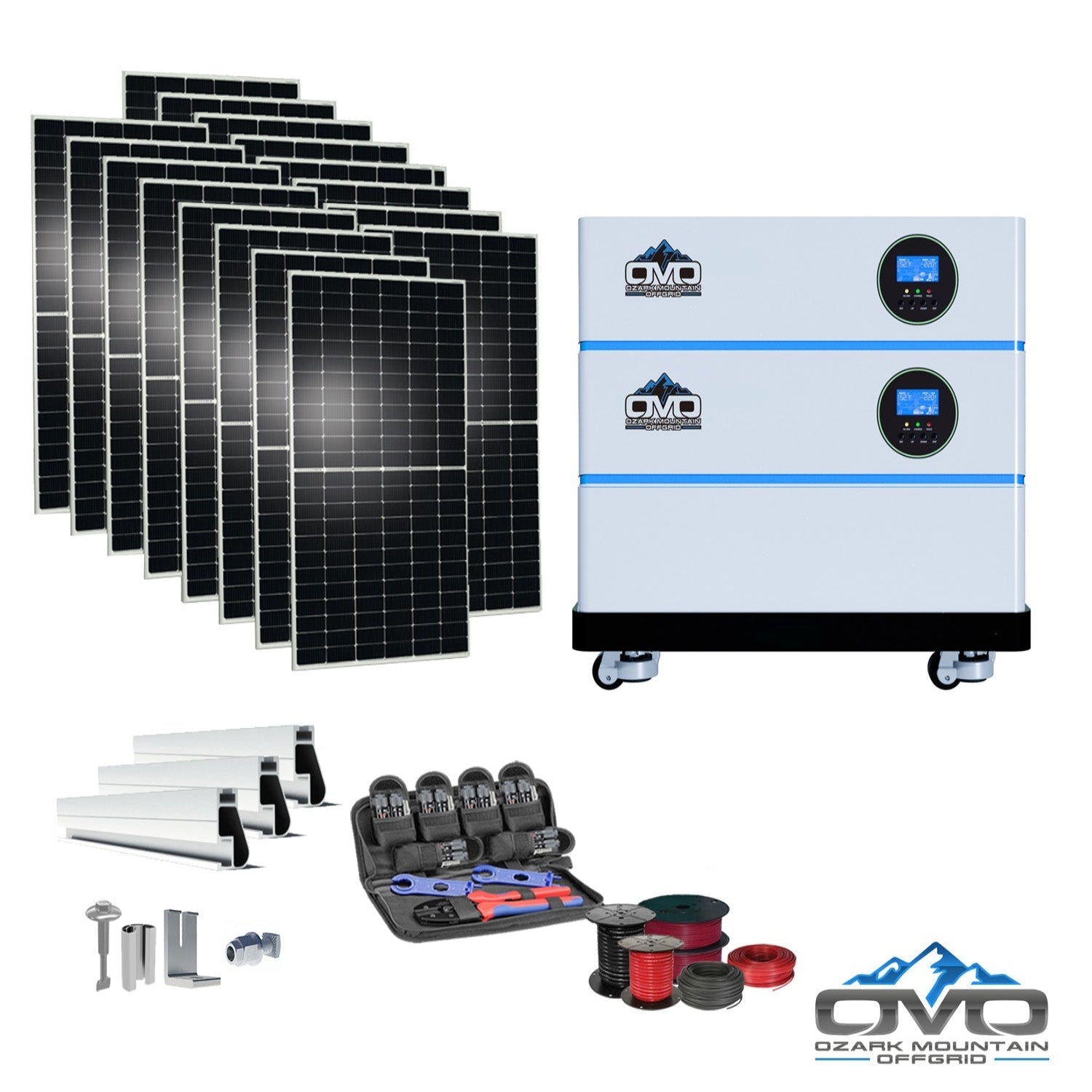

Specifications

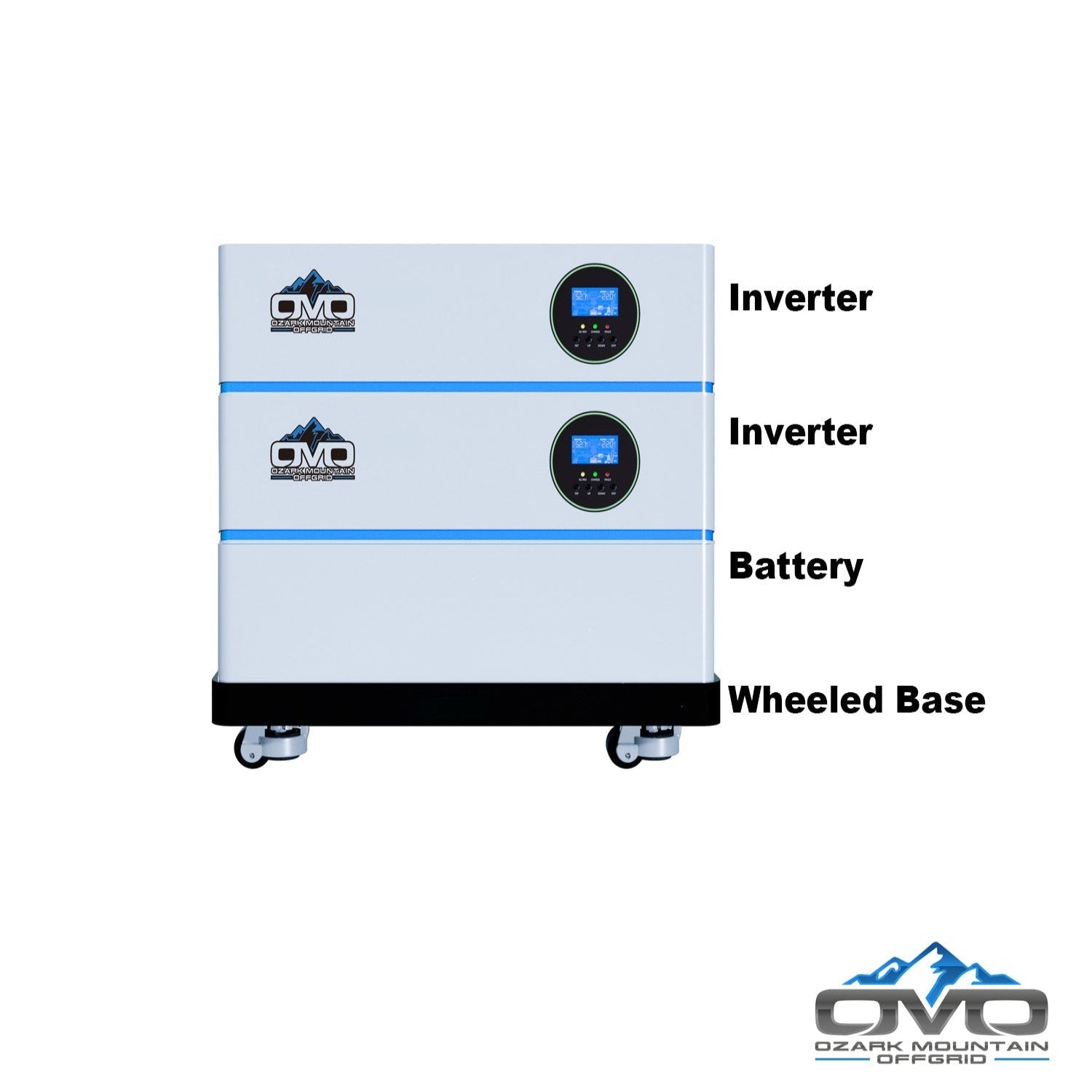

• Inverters: 2× OMO 5500W 120/240VAC Pure Sine Wave Stackable Inverters (11,000W total output)

• Batteries: 1× 51.2V 5.12kWh Stackable Heated Battery w/ Bluetooth (expandable up to 6 per inverter)

• Base: OMO Stack System Wheeled Base for simplified mobility and installation

• Solar Panels: 16× 550W Bifacial Mono Solar Panels (8,800W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Full IronRidge roof-mount kit including rails, splices, L-feet, fasteners, and bolts

• Wiring: 500' spool of 10AWG PV direct-burial solar wire + 100' spool of 6AWG AC output/input/generator cabling

• Tools Included: MC4 crimper tool set

• Panel Durability: 5400 PA snow load & 2400 PA wind load; double-glass bifacial design

• Panel Warranty: 30-year performance warranty

Features

• Bifacial Solar Panels: Capture up to 25% extra power from rear-side reflection and perform exceptionally well in cloudy or low-light environments

• Scalable Design: Add batteries and solar panels up to system maximums as your energy needs grow

• Heated Lithium Battery: Ensures safe and efficient charging during cold temperatures

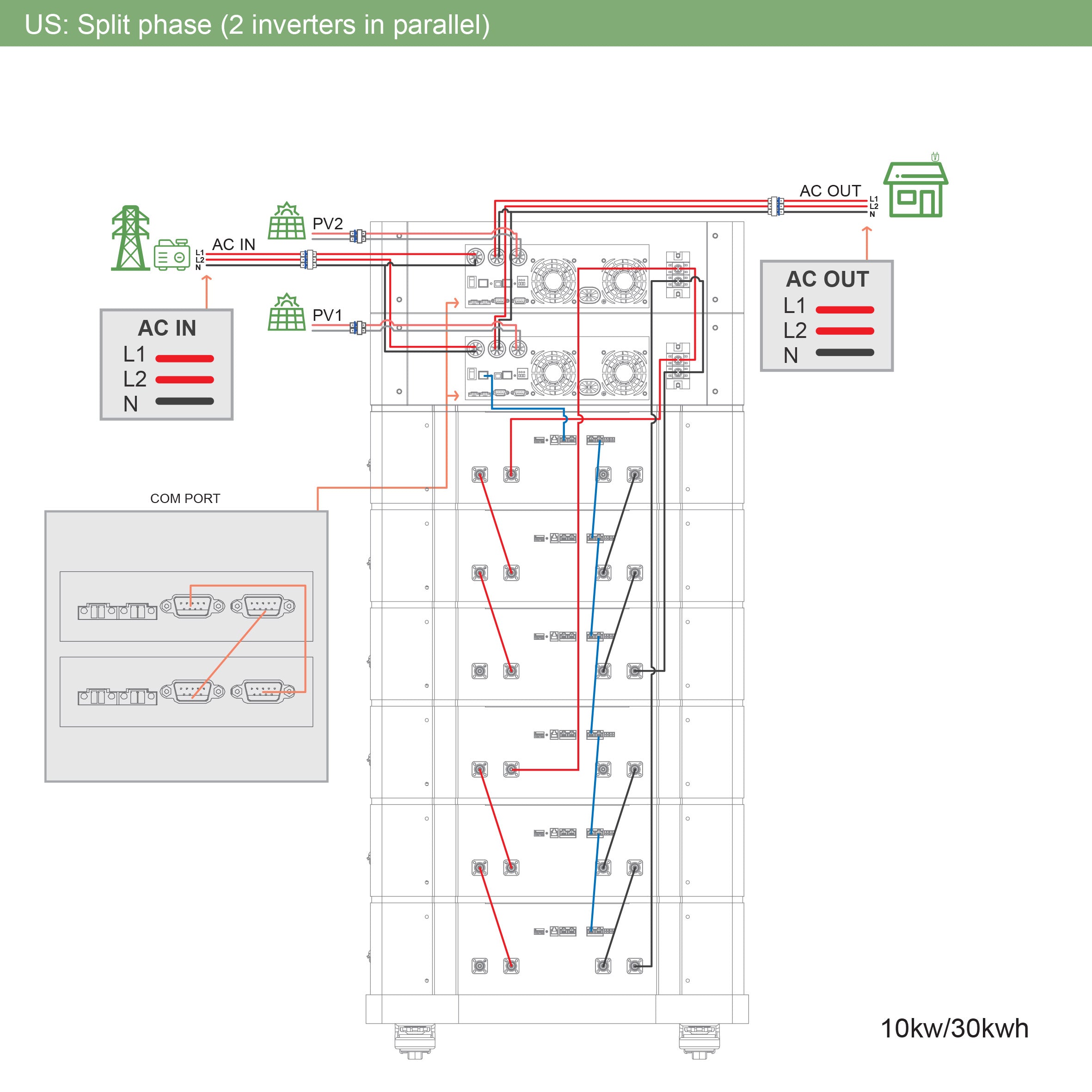

• 120/240V Split-Phase Output: Supports whole-home loads including appliances, pumps, and power tools

• Bluetooth Battery Monitoring: Track battery health and performance in real time

• Customizable System Layout: Contact us to design a tailored configuration for your off-grid needs

Inverter Specs

• MPPT Charge Controller: 5500W PV rated input per inverter

• Max PV Current: 22A per inverter

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave per inverter

• Parallel Capability: Supports up to 6 inverters in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass current

• Monitoring: Built-in WiFi & Bluetooth

Maintenance

• Daily: Ensure panels are free of shading and check inverter status indicators

• Weekly: Inspect cabling, mounting hardware, and panel cleanliness

• Annually: Tighten electrical connections, review system logs, and perform comprehensive system checks

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Batteries: Manufacturer warranty available upon request
