Commercial 240KW Solar Array - 3 Phase 480V Solar Kit + 4x 60K 480V Sol-Ark Inverter + 4x60KW Sol-Ark INDOOR Lithium Battery +242KW Solar with Ground Mount and Wiring

The Commercial 240KW Solar Array - 3 Phase 480V Solar Kit + 4x 60K 480V Sol-Ark Inverter + 4x60KW Sol-Ark INDOOR Lithium Battery +242KW Solar with Ground Mount and Wiring  is built for heavy and light commercial applications as well as high-end residential estates. Delivering ~1,089 kWh per day (based on 4.5 sun hours), it suits facilities using ~32,670 kWh per month. This scalable Sol-Ark three-phase package can grow with additional inverters, panels, and batteries, and includes four indoor IP20 lithium battery banks rated at 60 kW of storage power each.

Specifications

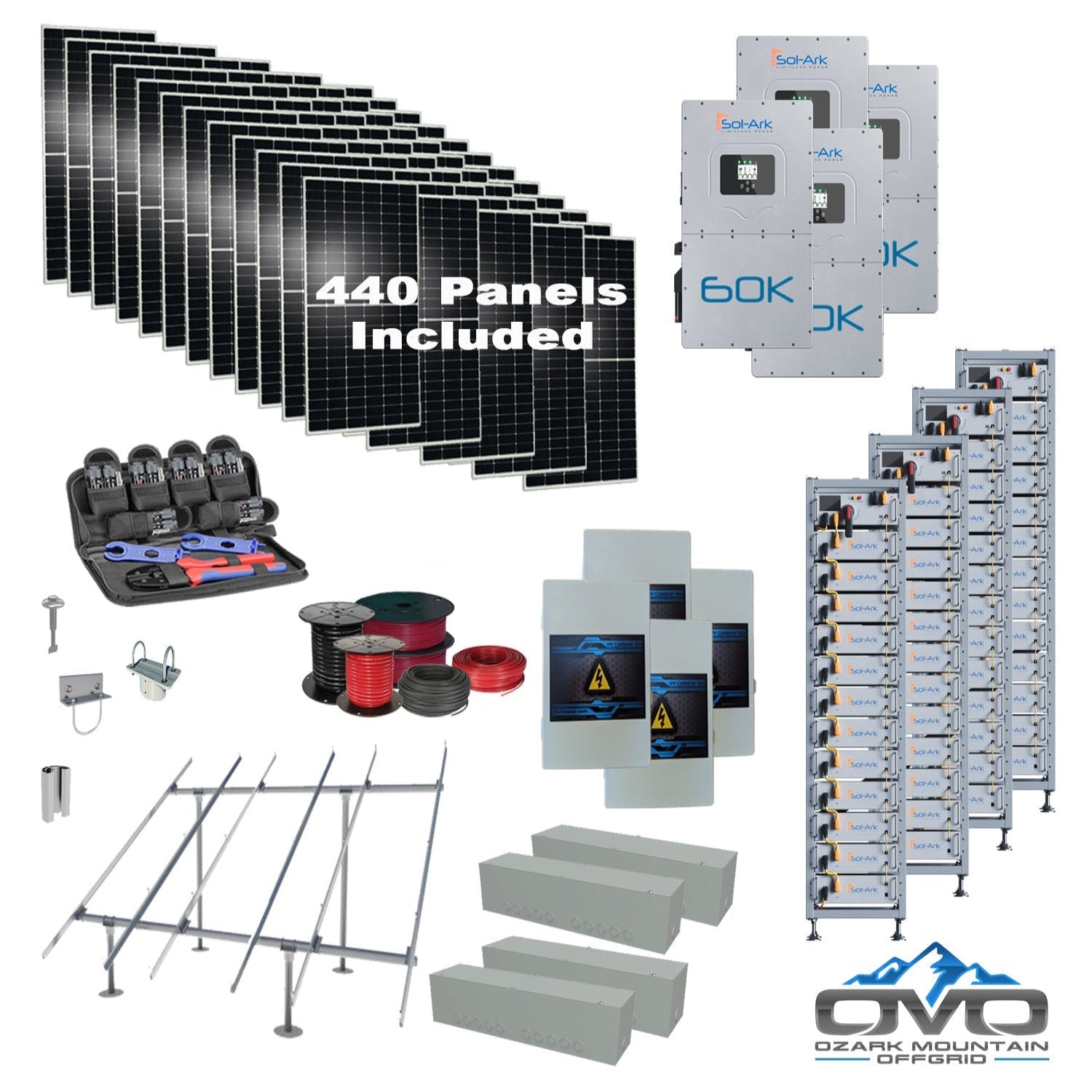

• Solar Array: 440 × 550W bifacial mono panels (242,000 W total)

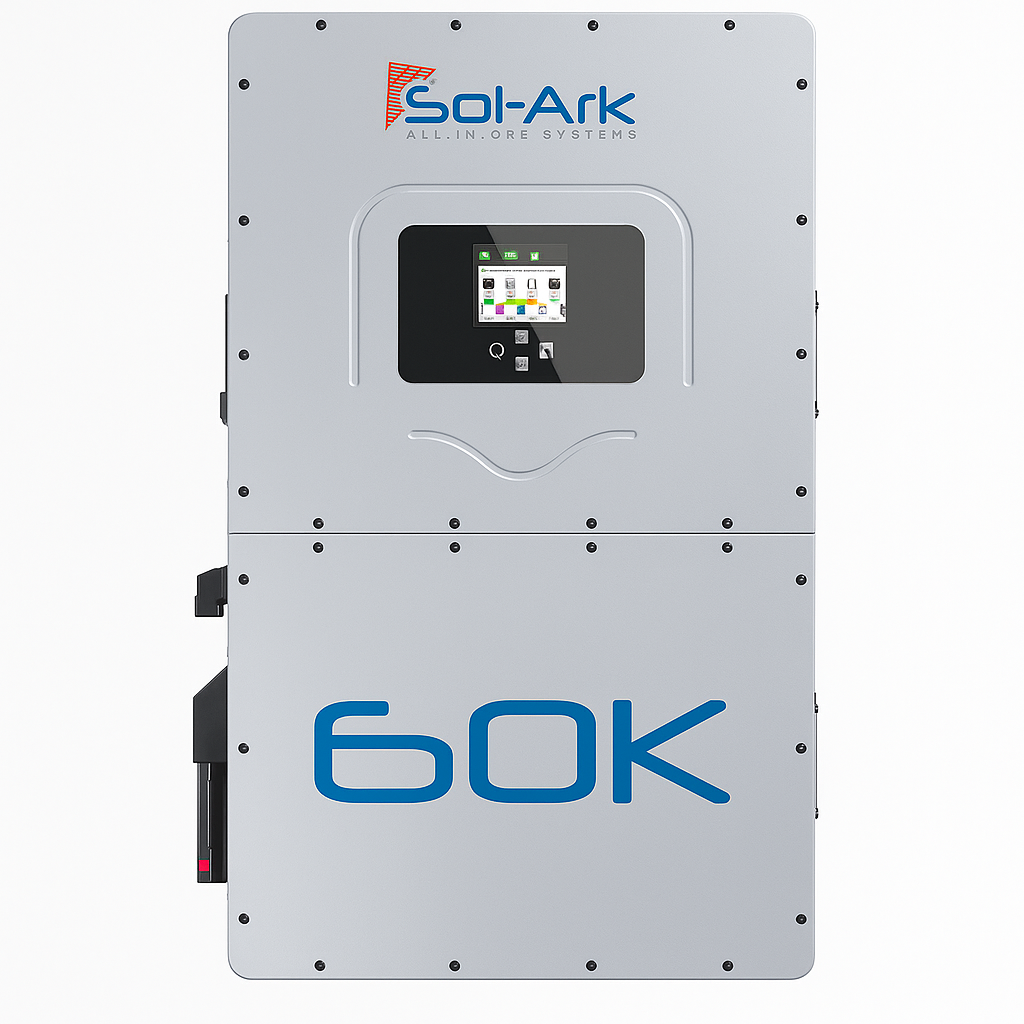

• Inverters: 4 × Sol-Ark 60 kW Three-Phase 480V, integrated MPPT charge controllers

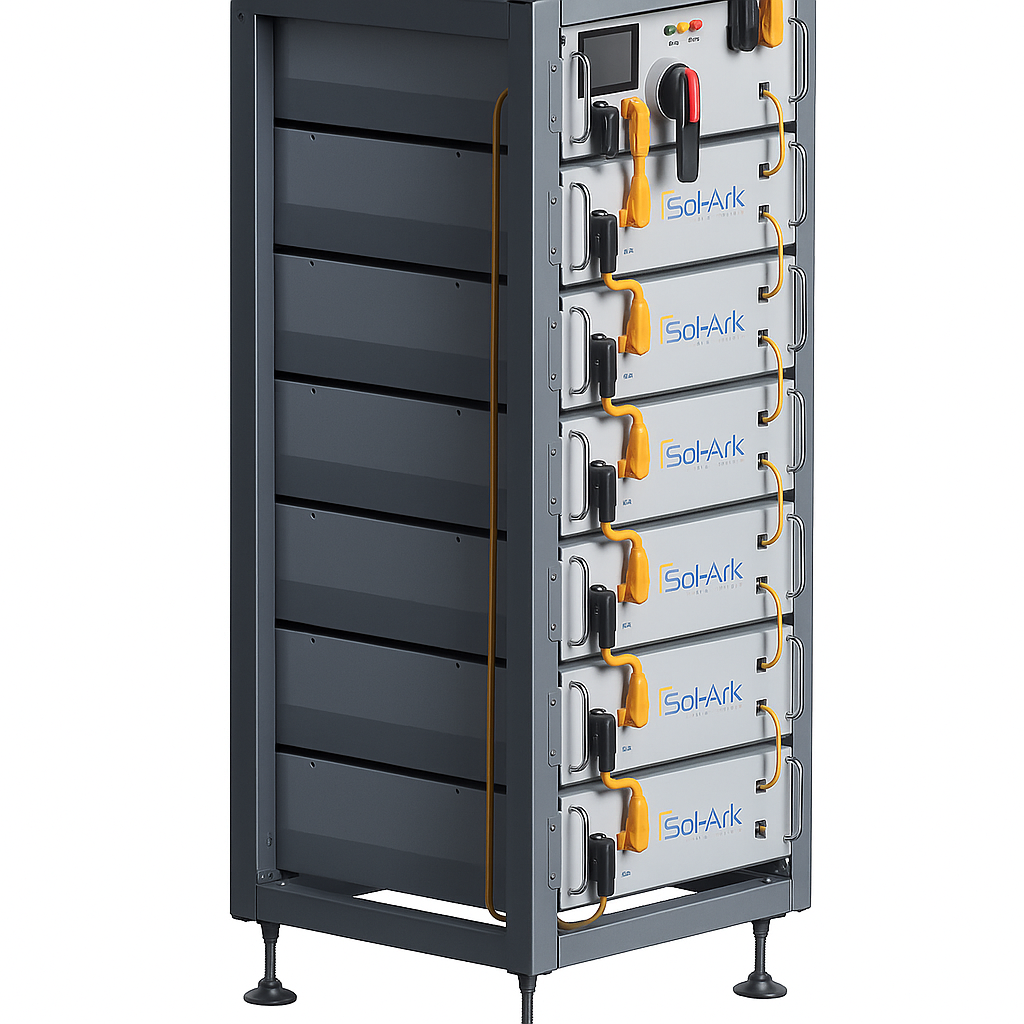

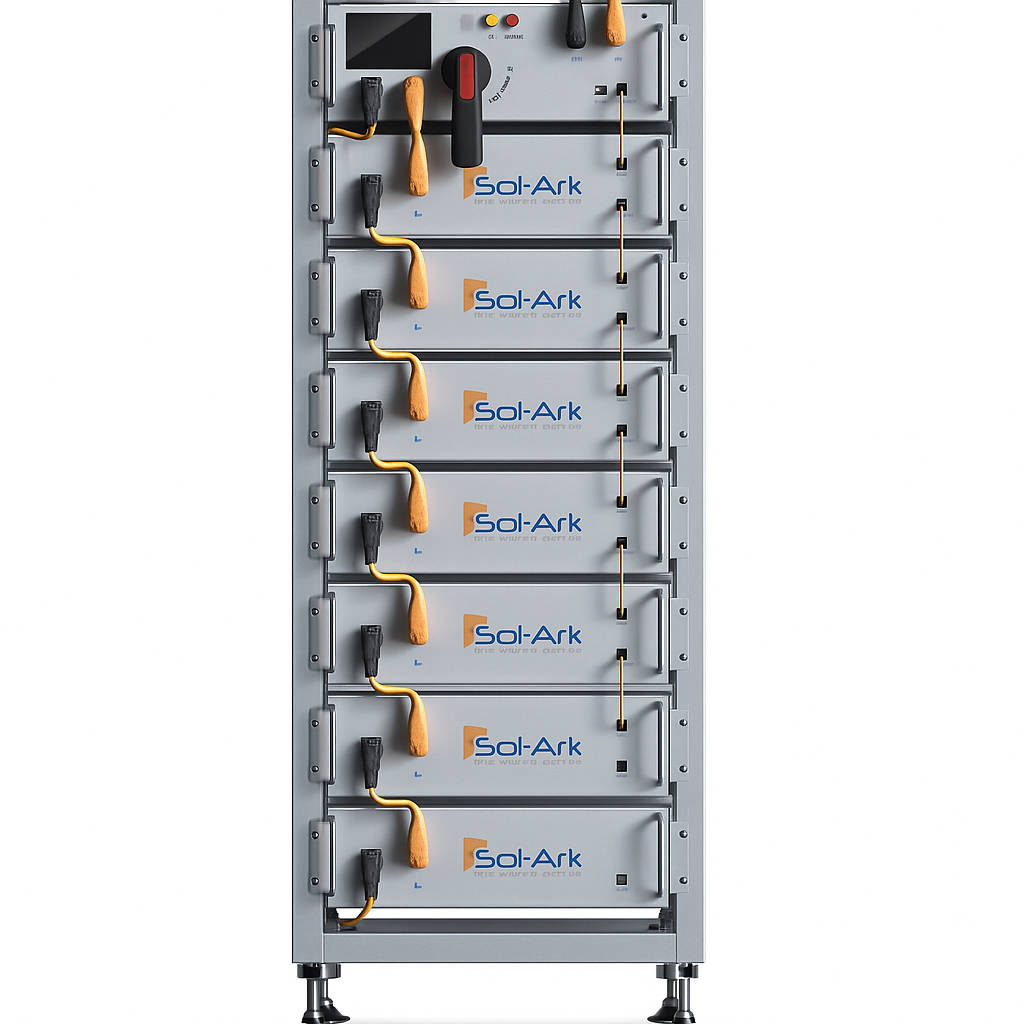

• Battery Banks: 4 × 60 kW indoor IP20-rated lithium cabinets

• Mounting System: IronRidge ground-mount rails, top caps, rail connectors, fasteners & bolts

• Cabling: 3 × 500’ 10AWG MC4 solar wire; 3 × 100’ 4AWG AC cable; 3 × 20’ 2/0 AC main line

• Balance of System: 4 × PV combiner boxes, MC4 crimper tool set, 4 × wire gutter boxes, AC combiner kit

• Panel Durability: 5400 PA snow & 2400 PA wind load; 30-year power warranty

• Ground Mount Note: Built on 3" pipe setup (customer sources 3" Sch 40 locally)

• Installation Option: Available at additional cost; contact us for area-specific pricing

Features

• High-Capacity Production: ~1,089 kWh/day output for demanding commercial loads

• Three-Phase 277/480V Power: Compatible with a wide range of commercial equipment

• Bifacial Gain: Rear-side harvest up to ~25% with strong low-light performance

• Sol-Ark 60K Highlights: 78 kW PV input; 4 MPPT (200–850 V); 60 kW AC output; peak eff. 97.5%; parallel up to 12

• Scalable Architecture: Expand inverters, panels, and storage as energy needs grow

• Commercial-Grade BOS: Combiner boxes, heavy-gauge wiring, and pro-grade mounting hardware

Maintenance

• Monthly: Inspect ground-mount hardware, wiring, and PV combiner terminations

• Quarterly: Review inverter logs, MPPT performance, and battery health/status

• Annually: Full system inspection; panel cleaning; verify grounding/bonding and safety systems

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Components: Manufacturer warranties apply to inverters & batteries
