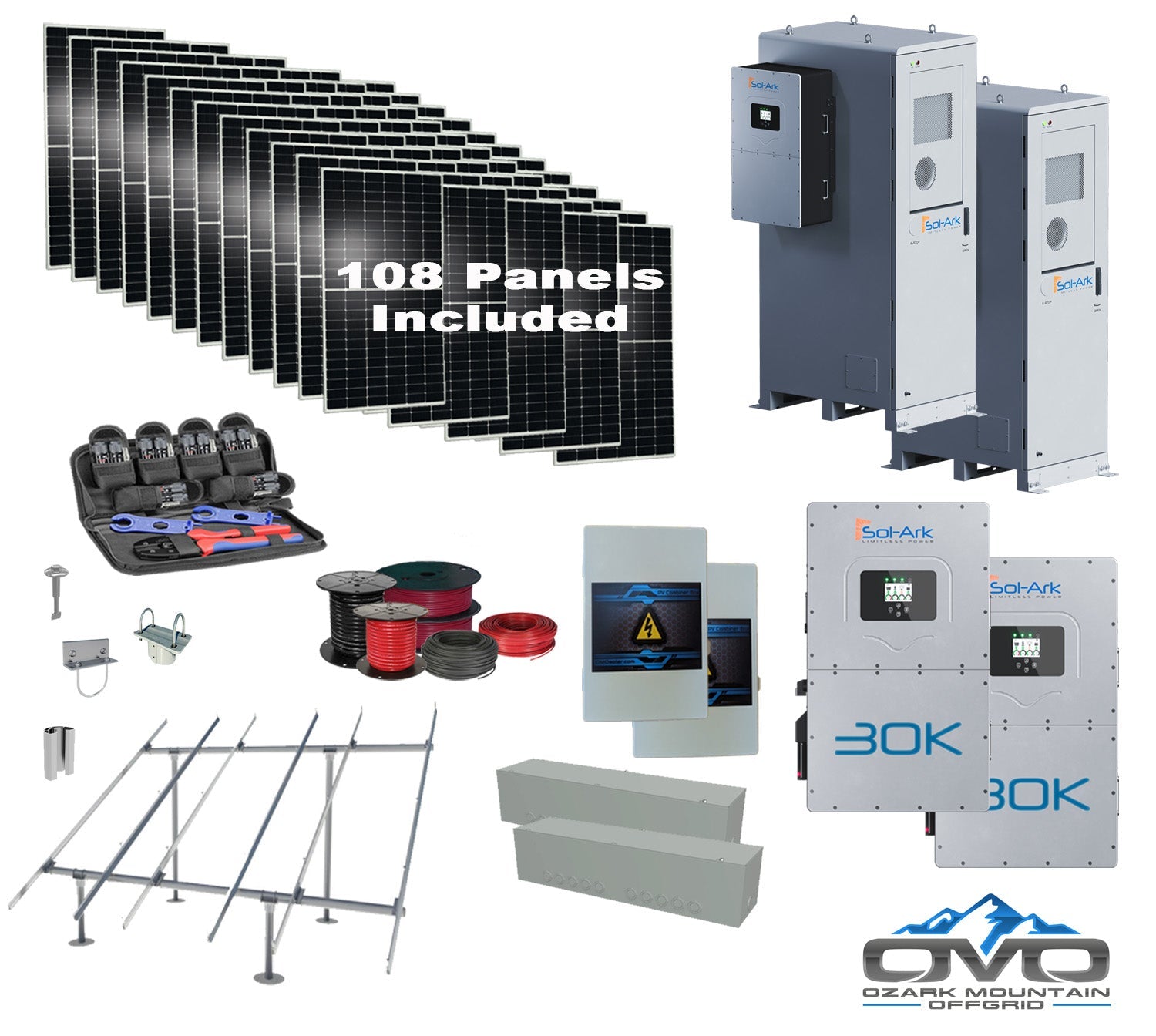

Commercial 60KW Solar Array - 3 Phase 208V Solar Kit + 2x 30K 208V Sol-Ark Inverter + 2x 60KW Sol-Ark OUTDOOR Lithium Battery +59.4KW Solar with Ground Mount and Wiring

The Commercial 60KW Solar Array - 3 Phase 208V Solar Kit + 2x 30K 208V Sol-Ark Inverter + 2x 60KW Sol-Ark OUTDOOR Lithium Battery +59.4KW Solar with Ground Mount and Wiring  is engineered for light commercial and high-end residential projects. Delivering ~267.3 kWh per day (based on 4.5 sun hours), it’s ideal for sites using ~8,000 kWh per month. Built on Sol-Ark’s scalable three-phase platform, this package can expand with additional inverters, panels, and storage. The kit includes two outdoor IP55-rated, climate-controlled lithium battery banks with integrated fire suppression, each providing 60 kW of storage power.

Specifications

• Solar Array: 108 × 550W bifacial mono panels (59,400 W total)

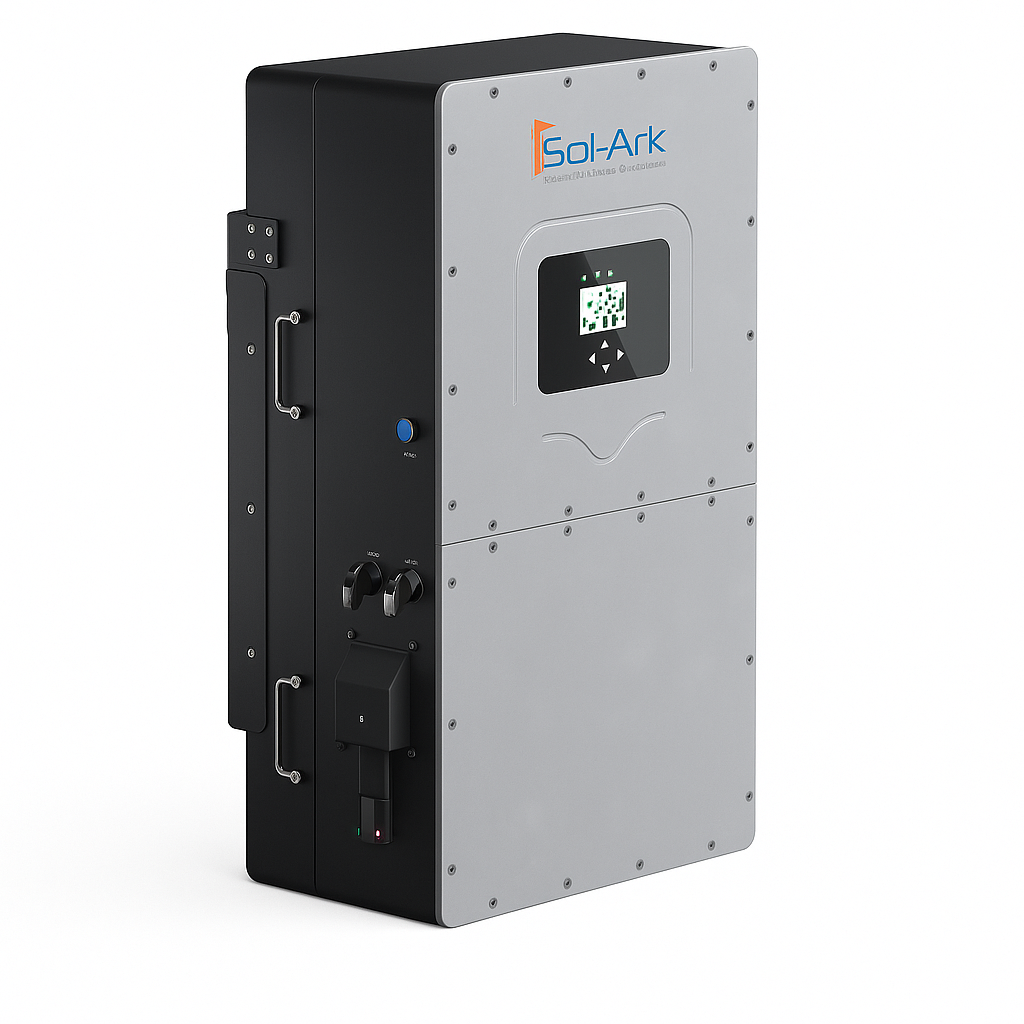

• Inverters: 2 × Sol-Ark 30 kW Three-Phase 120/208V with integrated MPPT charge controllers

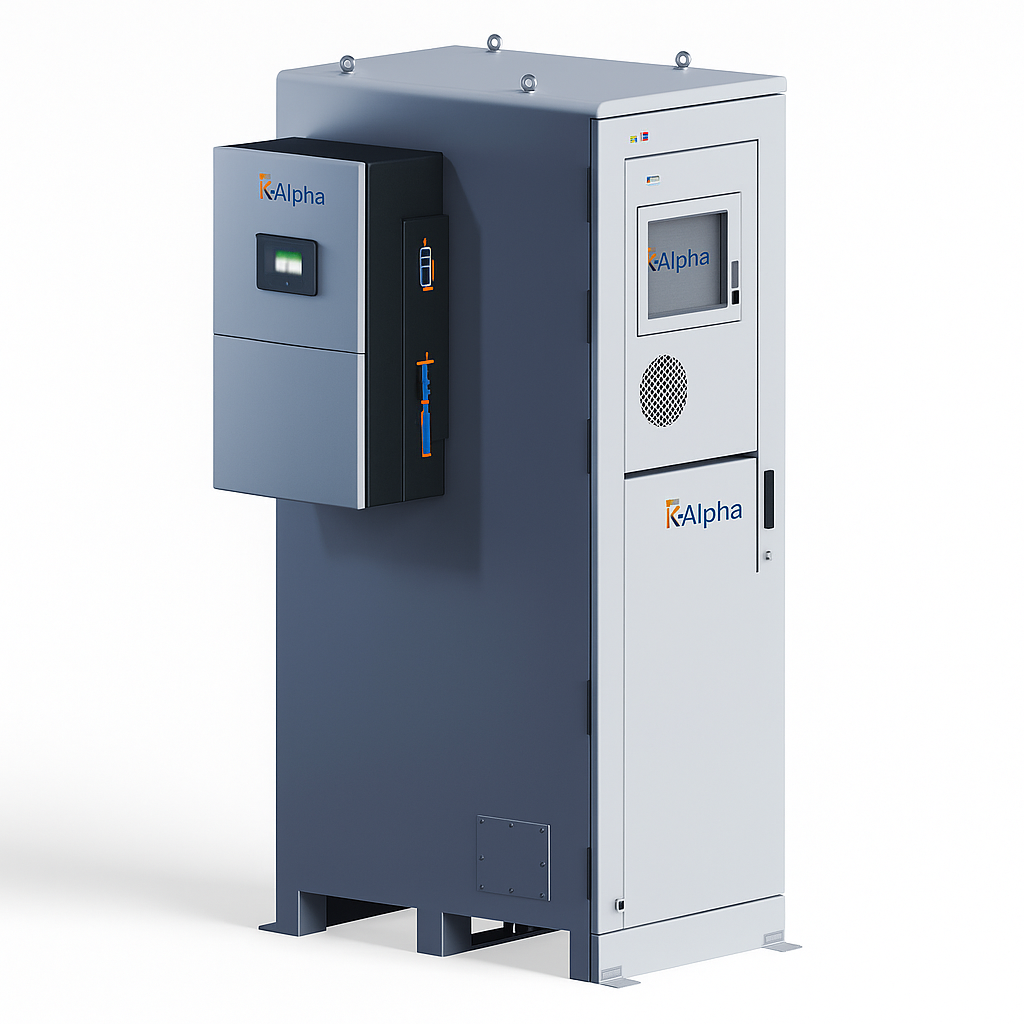

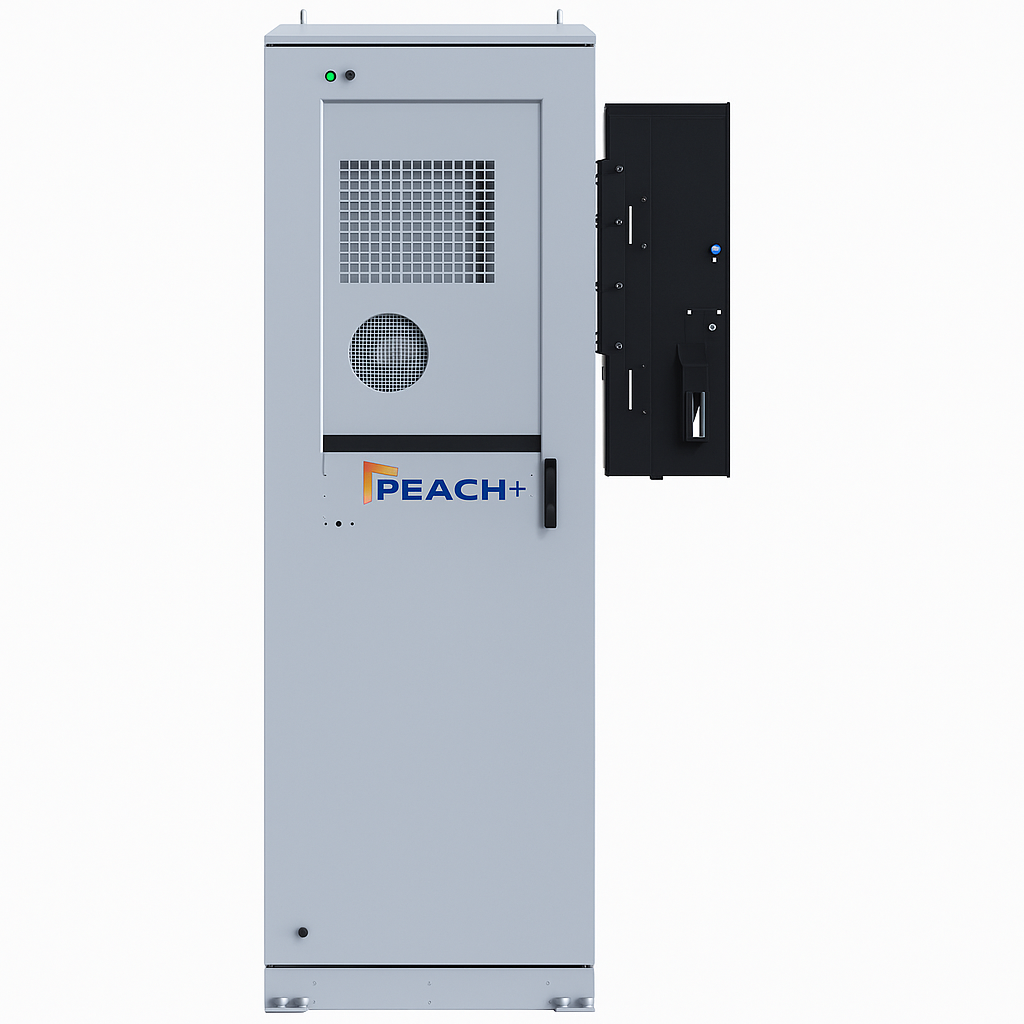

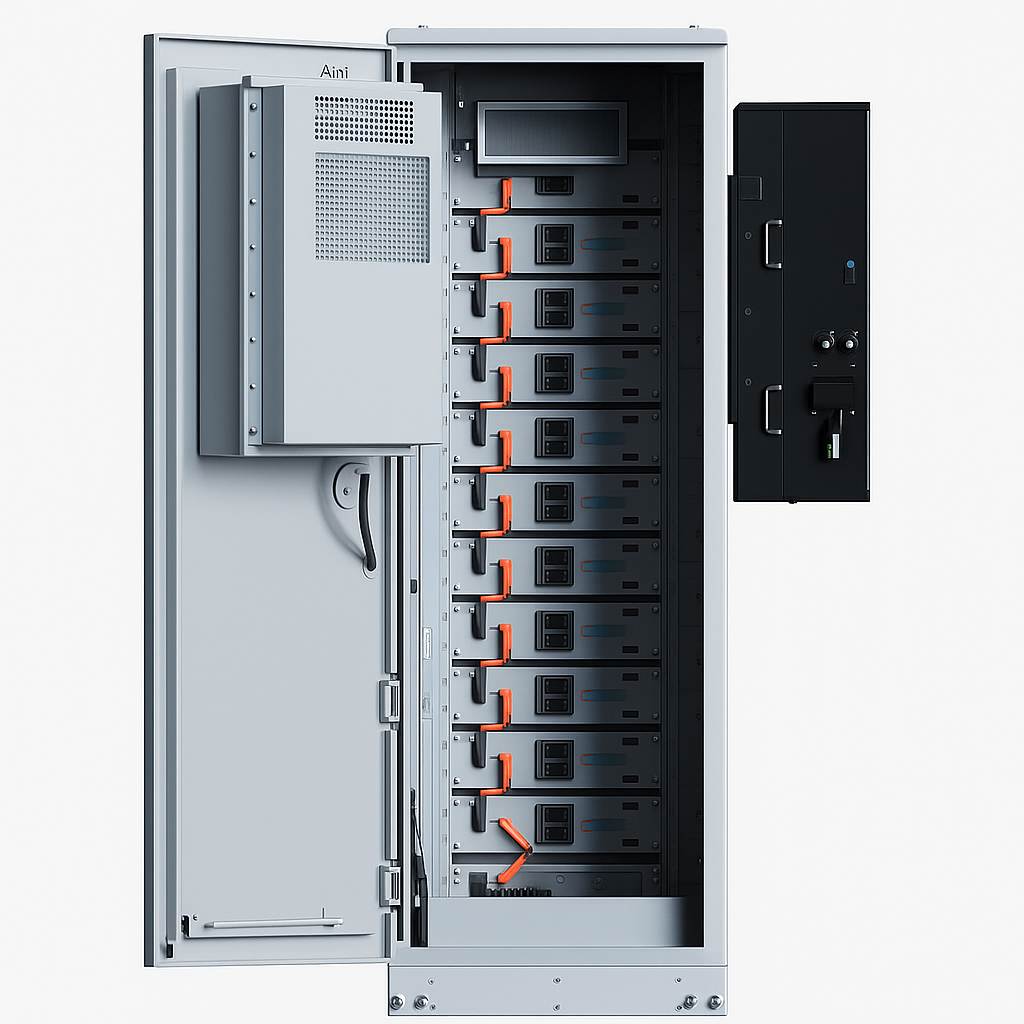

• Battery Banks: 2 × 60 kW outdoor IP55-rated, climate-controlled lithium batteries with integrated fire suppression

• Mounting System: IronRidge ground-mount rails, top caps, rail connectors, fasteners & bolts

• Cabling: 2 × 500’ 10AWG MC4 solar wire; 2 × 100’ 4AWG AC cable; 2 × 20’ 2/0 AC main line

• Balance of System: 2 × PV combiner boxes, MC4 crimper tool set, 2 × wire gutter boxes, AC combiner box kit

• Panel Durability: 5400 PA snow & 2400 PA wind load; 30-year power warranty

• Ground Mount Note: Built on 3" pipe setup (customer sources 3" Sch 40 locally)

• Installation Option: Available at additional cost; contact us for area-specific pricing

Features

• Reliable Daily Production: ~267.3 kWh/day to support steady commercial loads

• Outdoor Battery Enclosures: IP55-rated, climate-controlled with integrated fire suppression

• Bifacial Gain: Rear-side harvest (up to ~25%) and strong low-light performance

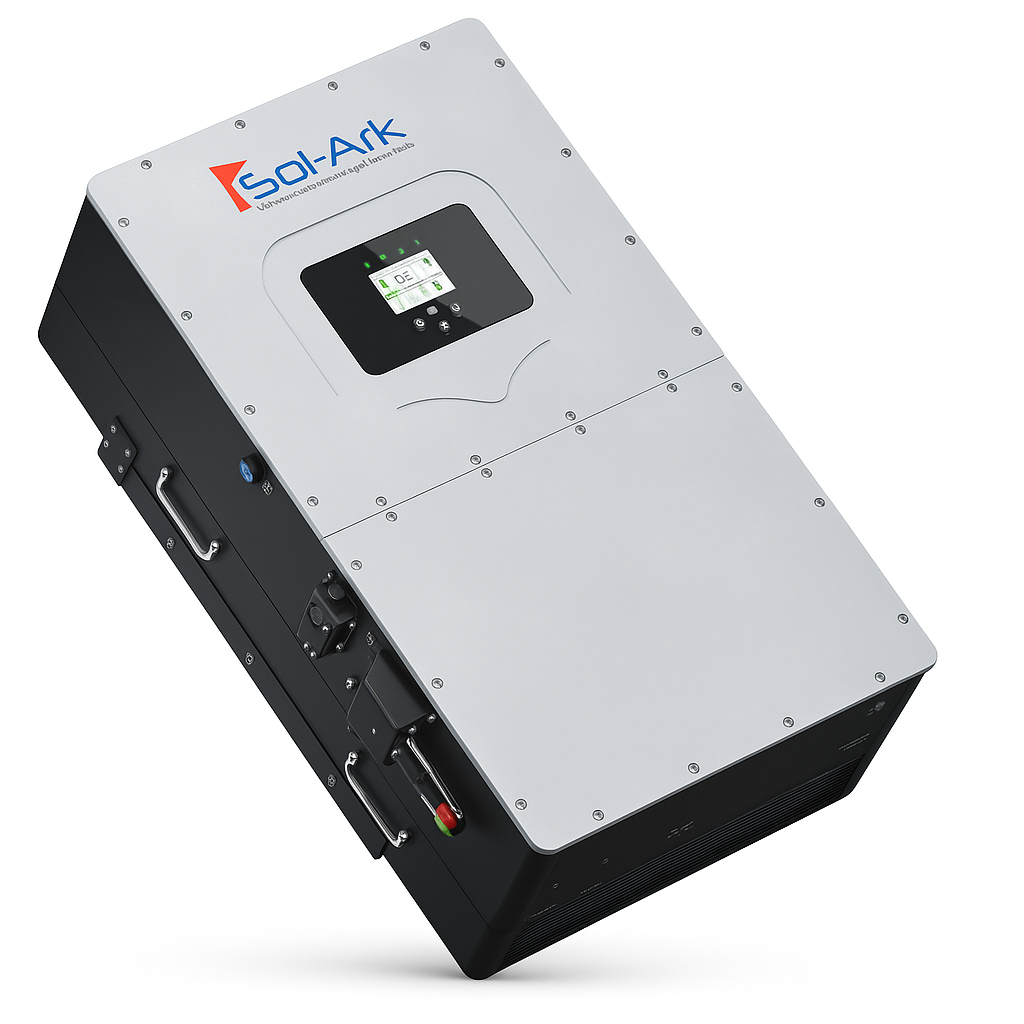

• Sol-Ark 30K Highlights: 39 kW PV input; 4 MPPT (170–500 V); 30 kW AC output; peak eff. 97.5%; parallel up to 12; 5 ms transfer

• Scalable Architecture: Add inverters, panels, and storage as energy needs expand

• Commercial-Grade BOS: Dual combiner boxes, heavy-gauge wiring, and robust ground-mount hardware

Maintenance

• Monthly: Inspect ground-mount fasteners, wiring terminations, and PV combiners

• Quarterly: Review inverter logs/alerts, MPPT performance, and battery status

• Annually: Full system inspection; panel cleaning; verify grounding, bonding, and safety systems

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Components: Manufacturer warranties apply to inverter & batteries
