Commercial 60KW Solar Array - 3 Phase 480V Solar Kit + 60K 480V Sol-Ark Inverter + 60KW Sol-Ark INDOOR Lithium Battery +60.5KW Solar with Ground Mount and Wiring

The Commercial 60KW Solar Array - 3 Phase 480V Solar Kit + 60K 480V Sol-Ark Inverter + 60KW Sol-Ark INDOOR Lithium Battery +60.5KW Solar with Ground Mount and Wiring  is engineered for light commercial and high-end residential projects. Delivering ~272.25 kWh per day (based on 4.5 sun hours), it’s ideal for sites using ~8,100 kWh per month. Built on Sol-Ark’s scalable three-phase platform, this package can expand with additional inverters, panels, and storage. The kit includes one indoor IP20-rated lithium battery bank providing 60 kW of storage power.

Specifications

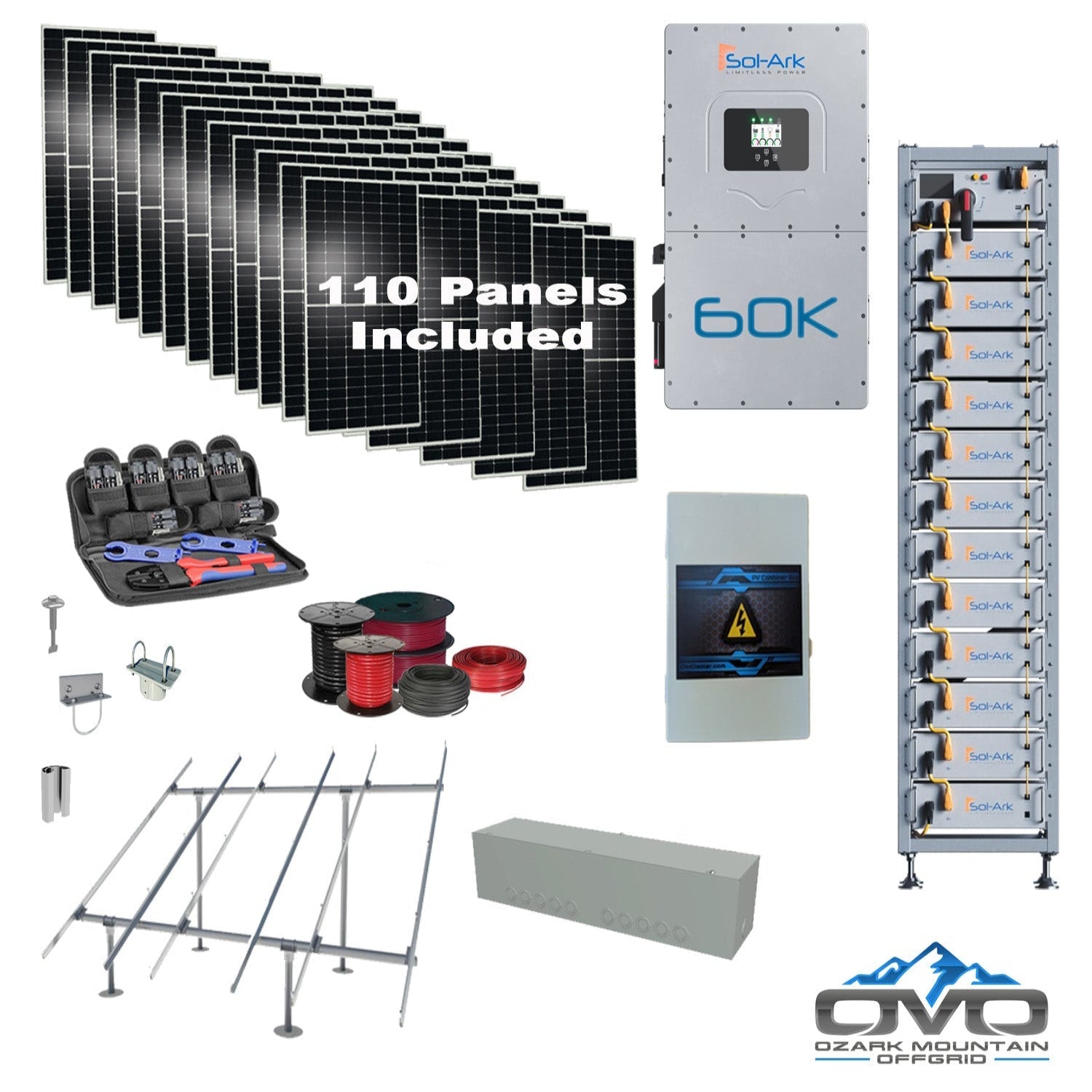

• Solar Array: 110 × 550W bifacial mono panels (60,500 W total)

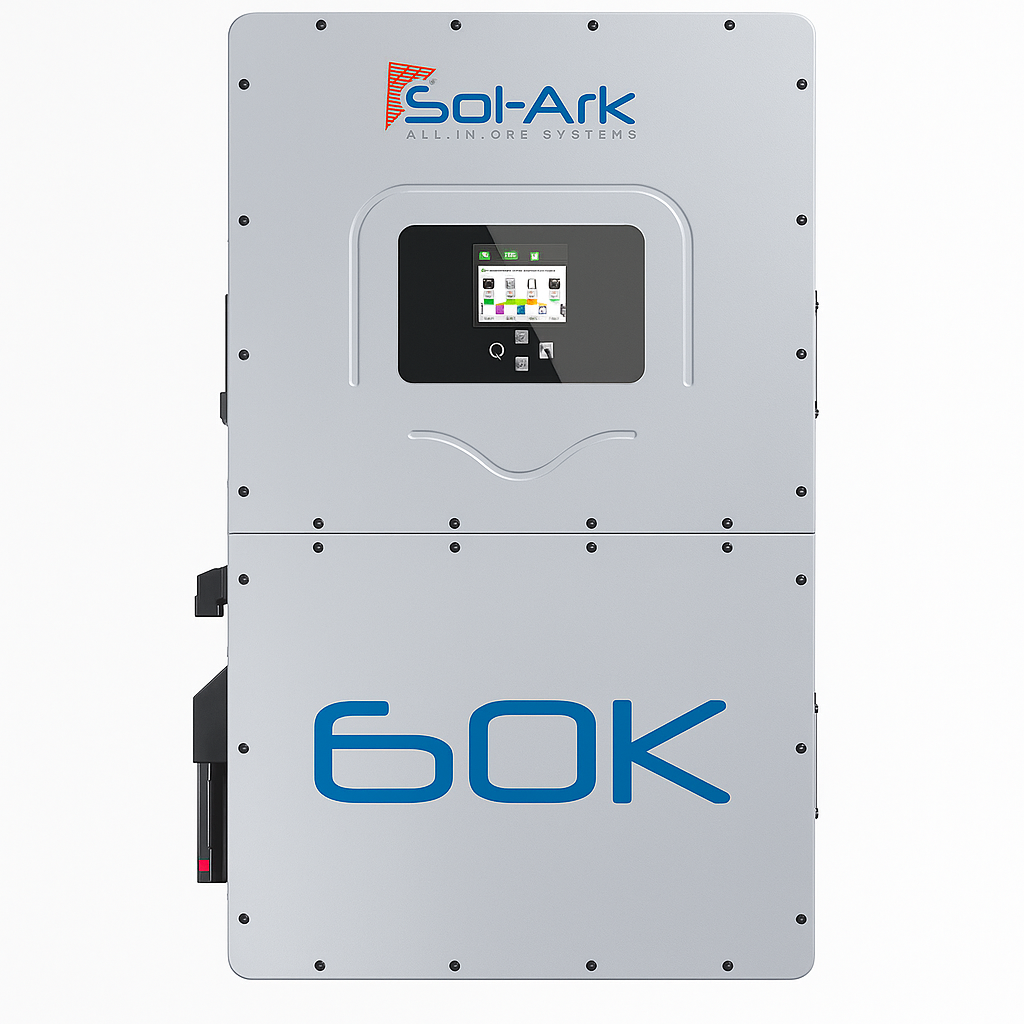

• Inverter: 1 × Sol-Ark 60 kW Three-Phase 277/480V with integrated MPPT charge controllers

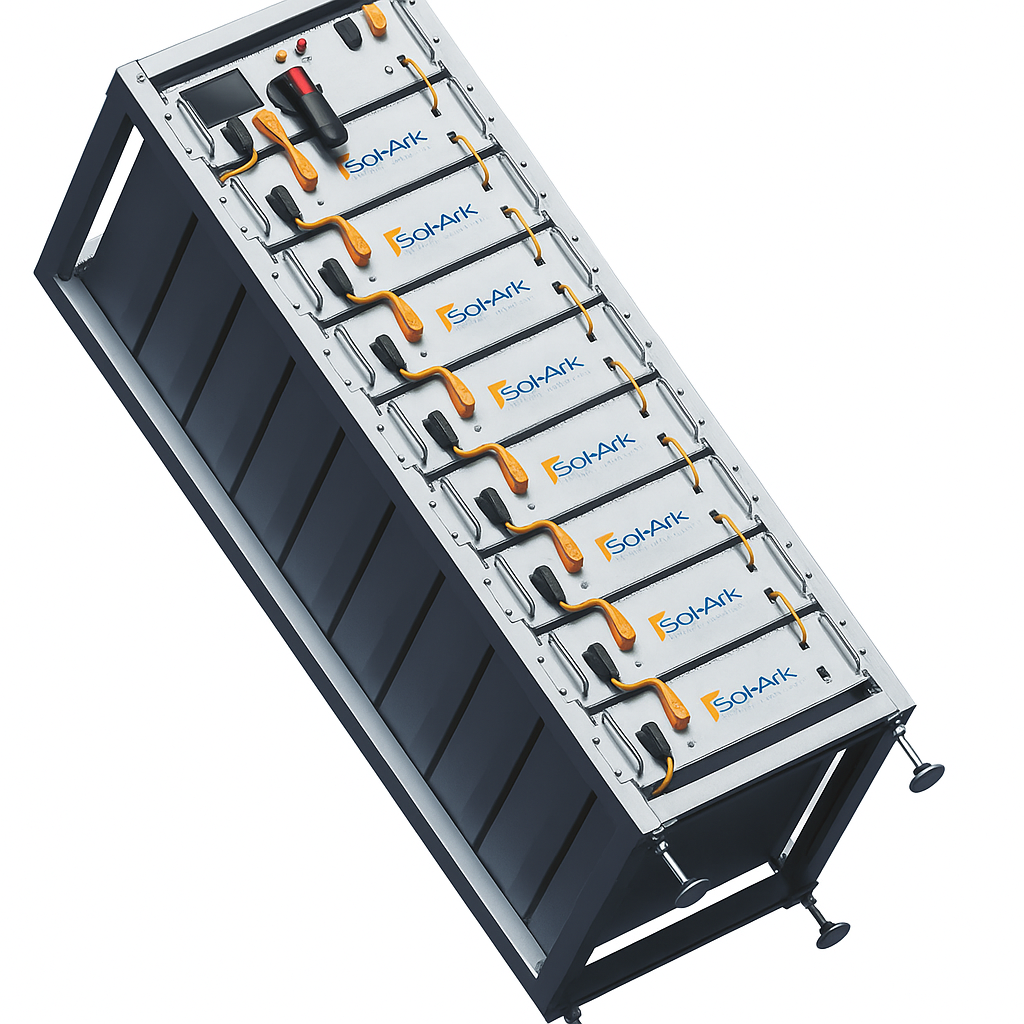

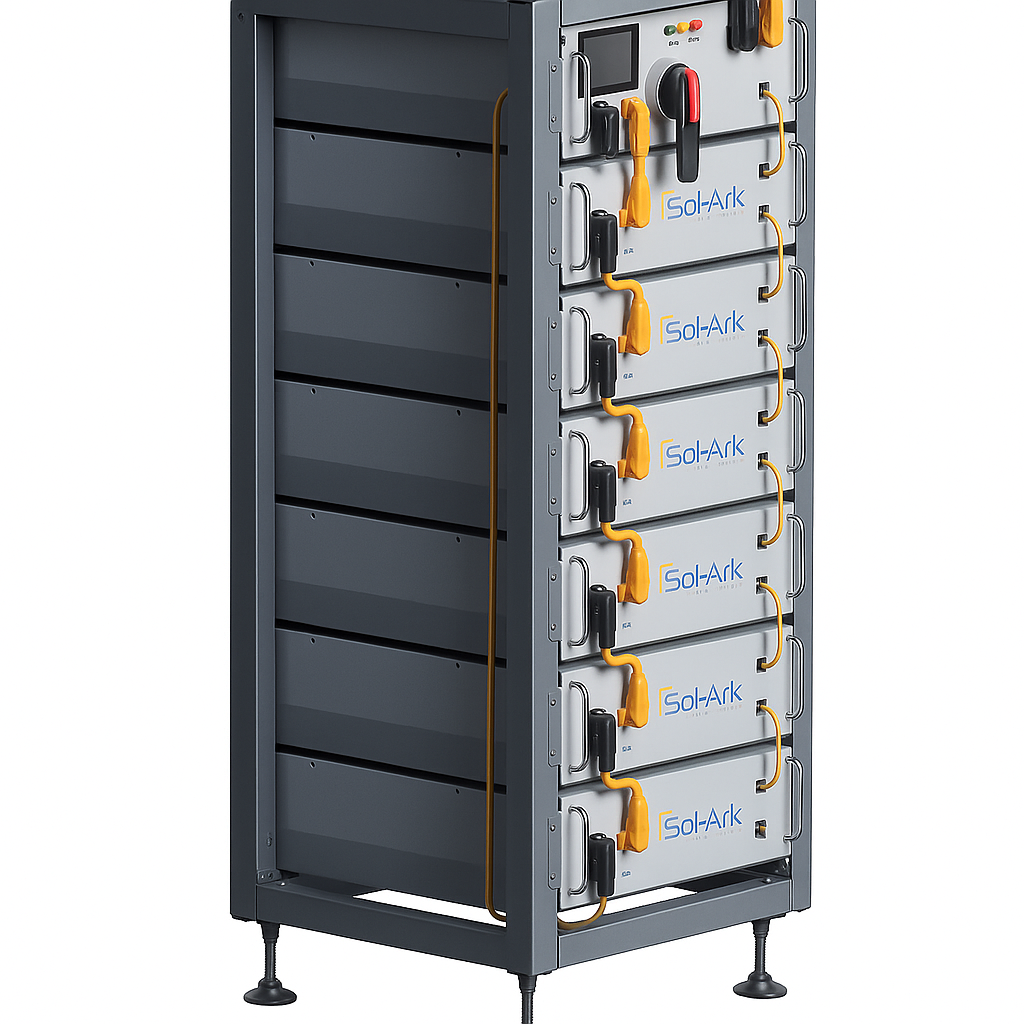

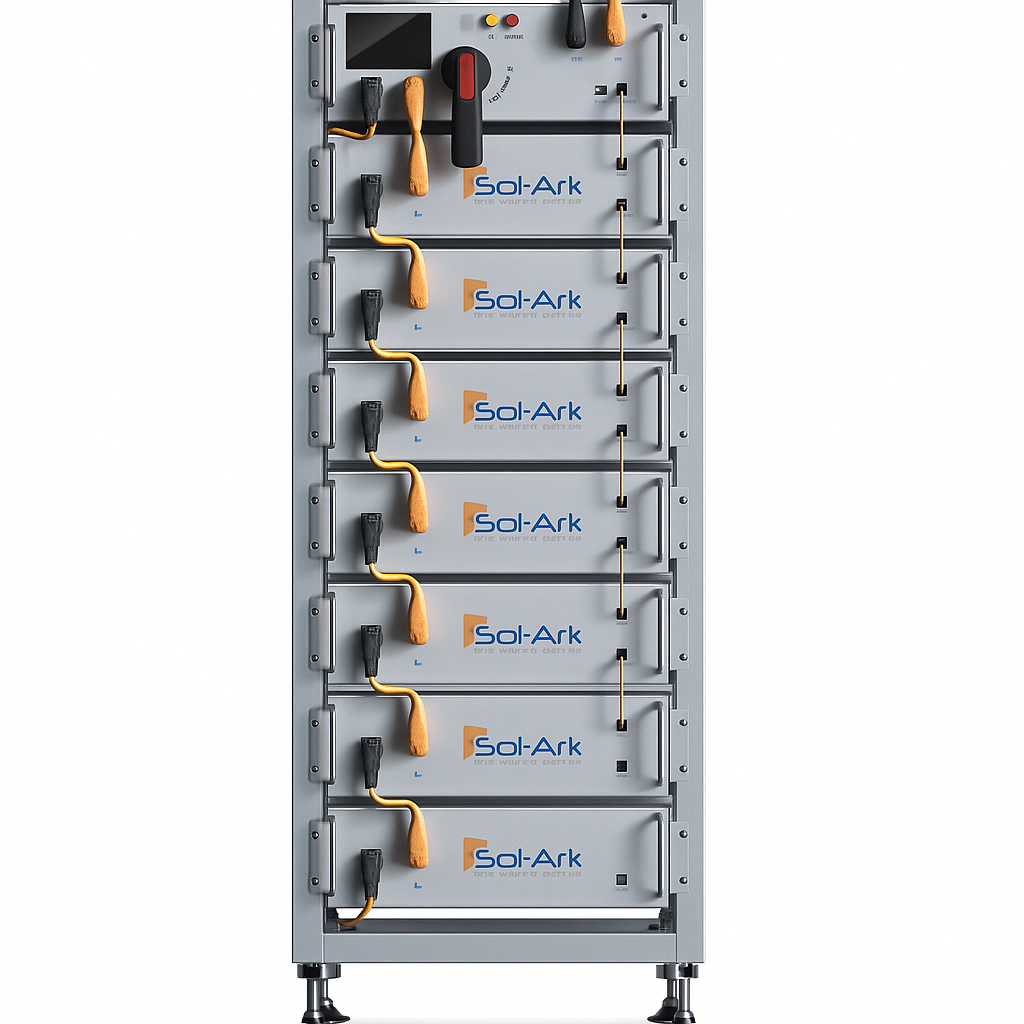

• Battery Bank: 1 × 60 kW Indoor IP20-rated lithium battery

• Mounting System: IronRidge ground-mount rails, top caps, rail connectors, fasteners & bolts

• Cabling: 500’ 10AWG MC4 solar wire; 100’ 4AWG AC cable; 20’ 2/0 AC main line

• Balance of System: PV combiner box, MC4 crimper tool set, wire gutter boxes, AC combiner box kit

• Panel Durability: 5400 PA snow & 2400 PA wind load; 30-year power warranty

• Ground Mount Note: Built on 3" pipe setup (customer sources 3" Sch 40 locally)

• Installation Option: Available at additional cost; contact us for area-specific pricing

Features

• Reliable Daily Production: ~272.25 kWh/day to support steady commercial loads

• Bifacial Gain & Low-Light: Rear-side harvest (up to ~25%) and strong performance in cloudy or early-day conditions

• Sol-Ark 60K Highlights: 78 kW PV input; 4 MPPT (200–850 V); 1,000 V Voc; 60 kW AC output; peak eff. 97.5%; parallel up to 12; ~5 ms transfer

• Scalable Architecture: Add inverters, panels, and storage as energy needs expand

• Commercial-Grade BOS: Combiner box, heavy-gauge wiring, and robust ground-mount hardware included

Maintenance

• Monthly: Inspect ground-mount fasteners, wiring terminations, and PV combiners

• Quarterly: Review inverter logs/alerts, MPPT performance, and battery status

• Annually: Full system inspection; panel cleaning; verify grounding, bonding, and safety systems

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Components: Manufacturer warranties apply to inverter & battery
