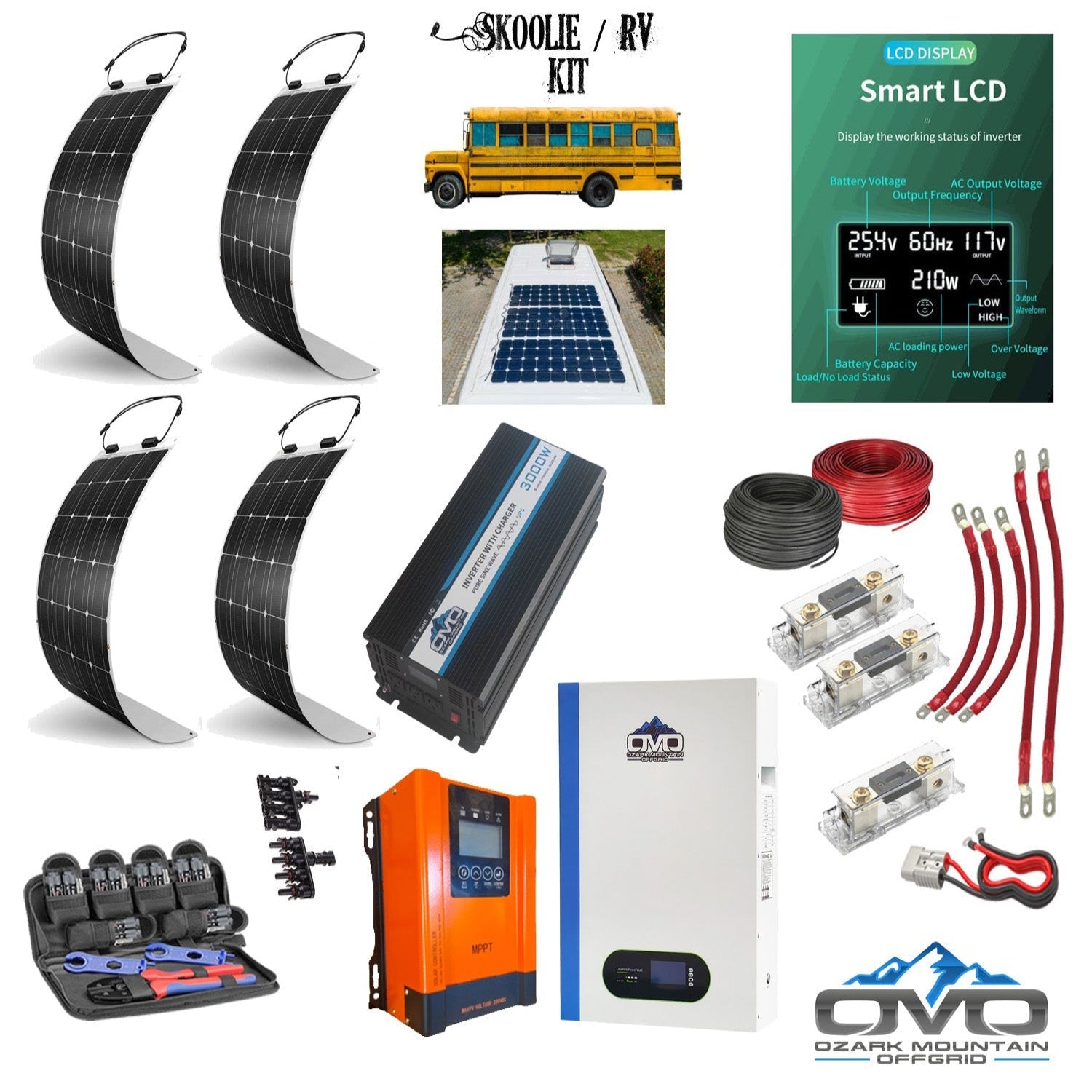

Complete Skoolie Solar System Kit / 4x 130W Flexible Solar Panels / 60A MPPT Charge Controller / 3000 Watt Inverter / OMO 5.12KW Patriot Lithium 48V Battery

The Complete Skoolie Solar System Kit / 4x 130W Flexible Solar Panels / 60A MPPT Charge Controller / 3000 Watt Inverter / OMO 5.12KW Patriot Lithium 48V Battery is designed for RVs, campers, utility trailers, boats, and school bus conversions. Producing an estimated 2,340W per day (based on 4.5 hours of midwest sun), this complete kit provides reliable, flexible off-grid power for mobile living and travel.

Specifications

• Solar Production: ~2,340W/day (4.5 hr sun average)

• Solar Panels: 4 × 130W flexible panels (adhesive or grommet-mounted)

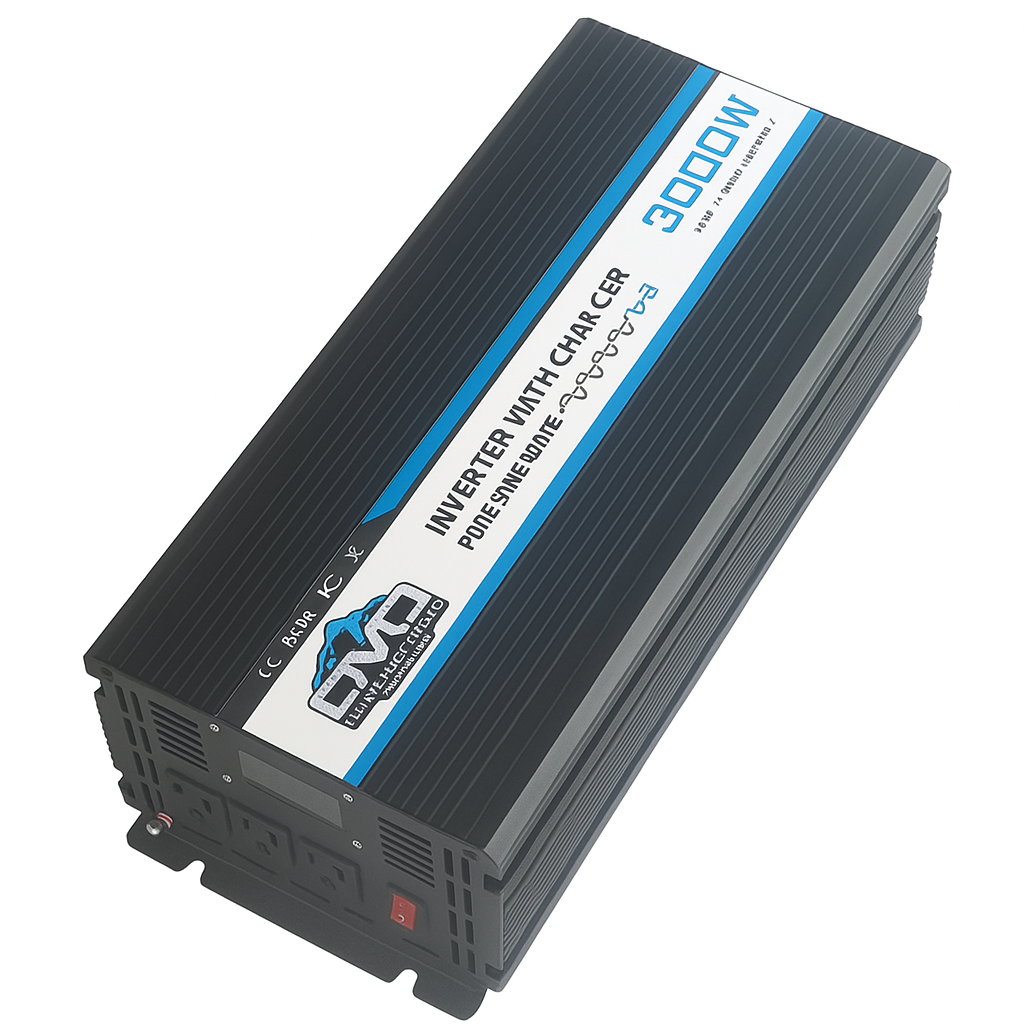

• Inverter: 3000W Pure Sine Wave (120V AC Output, AC Input, 6000W peak surge, built-in charger)

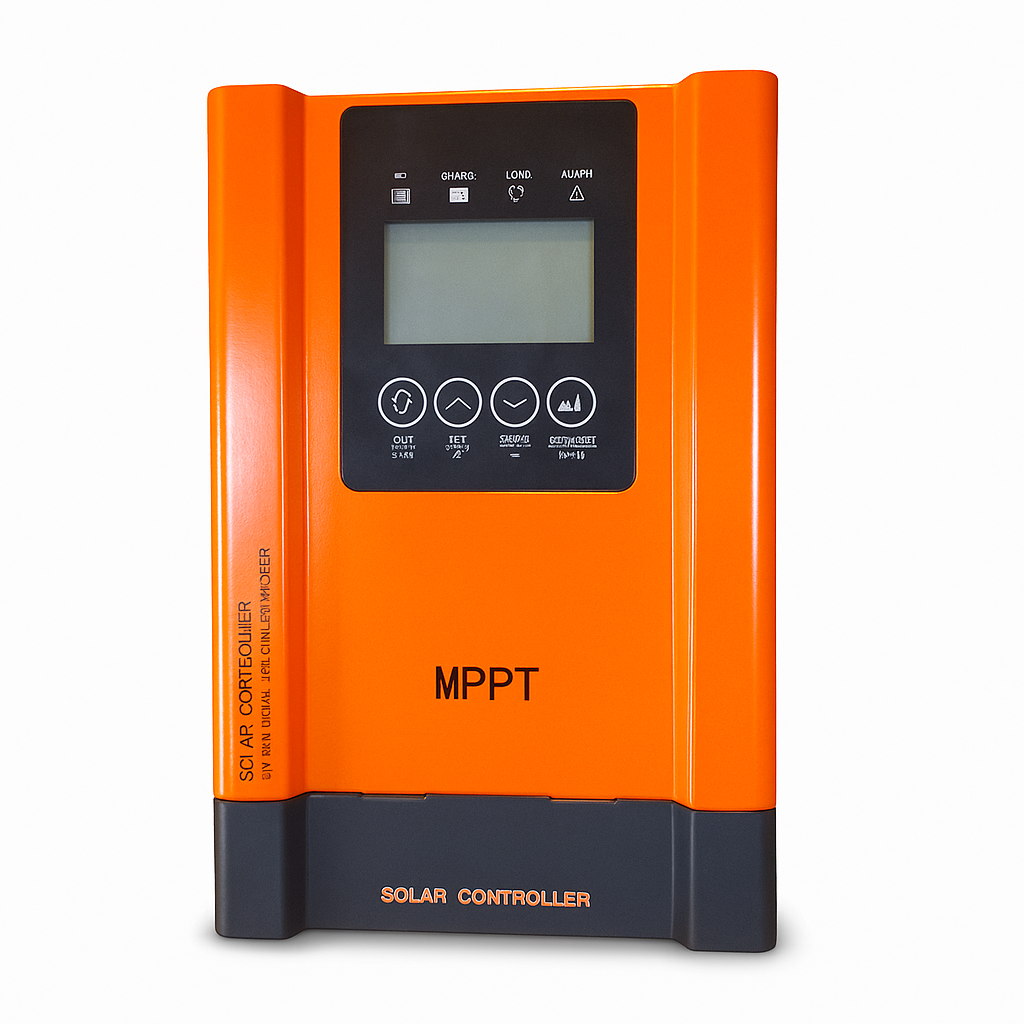

• Charge Controller: 60A MPPT

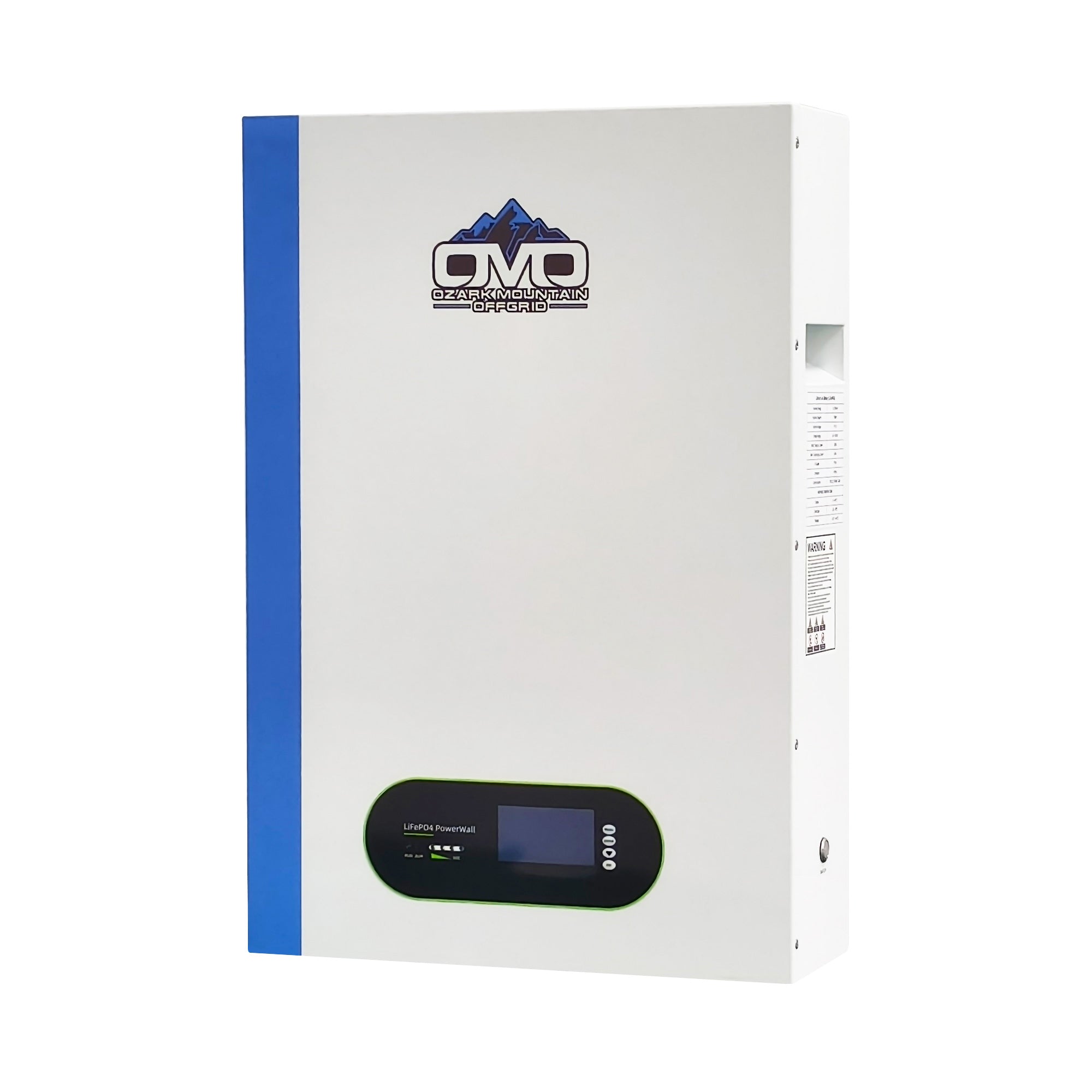

• Battery: 5.12kWh OMO 48V Patriot Lithium Battery + Wall Bracket

• Combiner Box: PV Combiner with 60A Breaker + Lightning Protection

• Fusing: 3 × ANL fuses with holders

• Cabling: 250' PV Cable + 100' 6 AWG AC Output/Input/Generator Cable

• Connectors: 2 × MC4 Splitters

• Battery Cables: Included 2/0 Gauge Cables

• Tools: MC4 Crimp Kit

Features

• Flexible 130W Panels: Lightweight, adhesive-mountable, ideal for curved surfaces

• High-Power Inverter: Supports most mobile household appliances

• Lithium Power: Long-lasting 5.12kWh battery for extended off-grid usage

• Complete Electrical Kit: All wiring, fusing, connectors, and tools included

• Ideal for Mobile Applications: RVs, Skoolies, campers, cargo trailers, boats

• Expandable: Add more panels or batteries as needed

Maintenance

• Daily: Check solar panel surface for debris and ensure clear sun exposure

• Weekly: Inspect cable connections, check inverter performance

• Annually: Perform a full system inspection and tighten all mounting points

Warranty

• Solar Panels: 25–30 years (manufacturer dependent)

• Battery: 10 years (typical lithium warranty)
