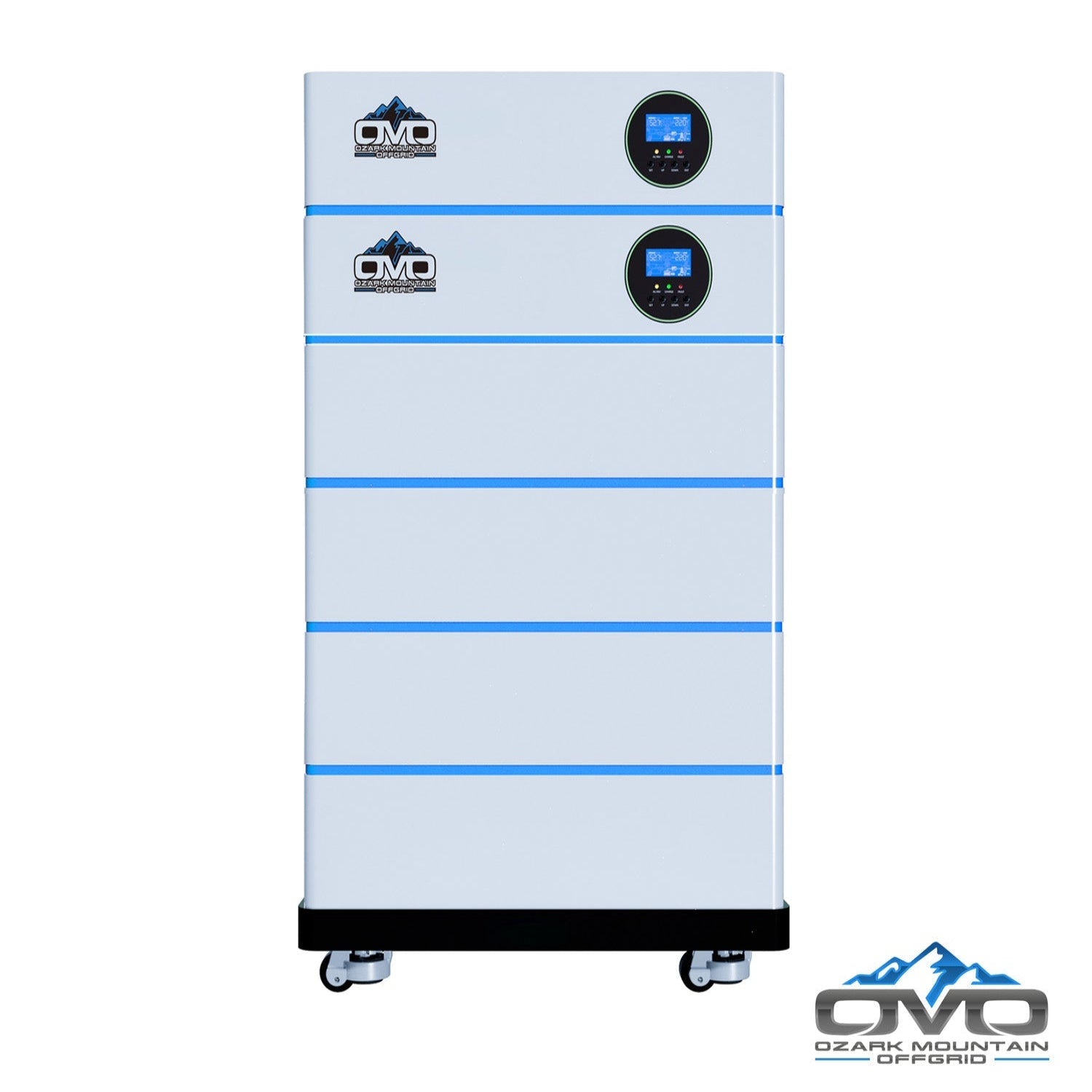

OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48KW Lithium Battery

The OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48KW Lithium Battery  is a complete, customizable inverter-and-battery solution designed to meet a wide variety of off-grid and hybrid solar needs. This package includes dual high-output stackable inverters, four heated Bluetooth-enabled LFP batteries, and a durable wheeled base for easy installation and mobility.

A solar panel array may be added separately, supporting up to ten 550W panels per inverter for powerful solar generation capability.

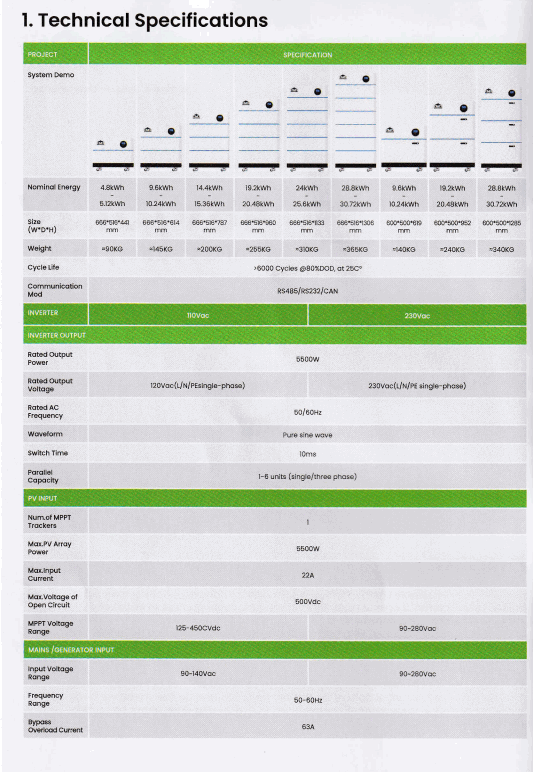

Specifications

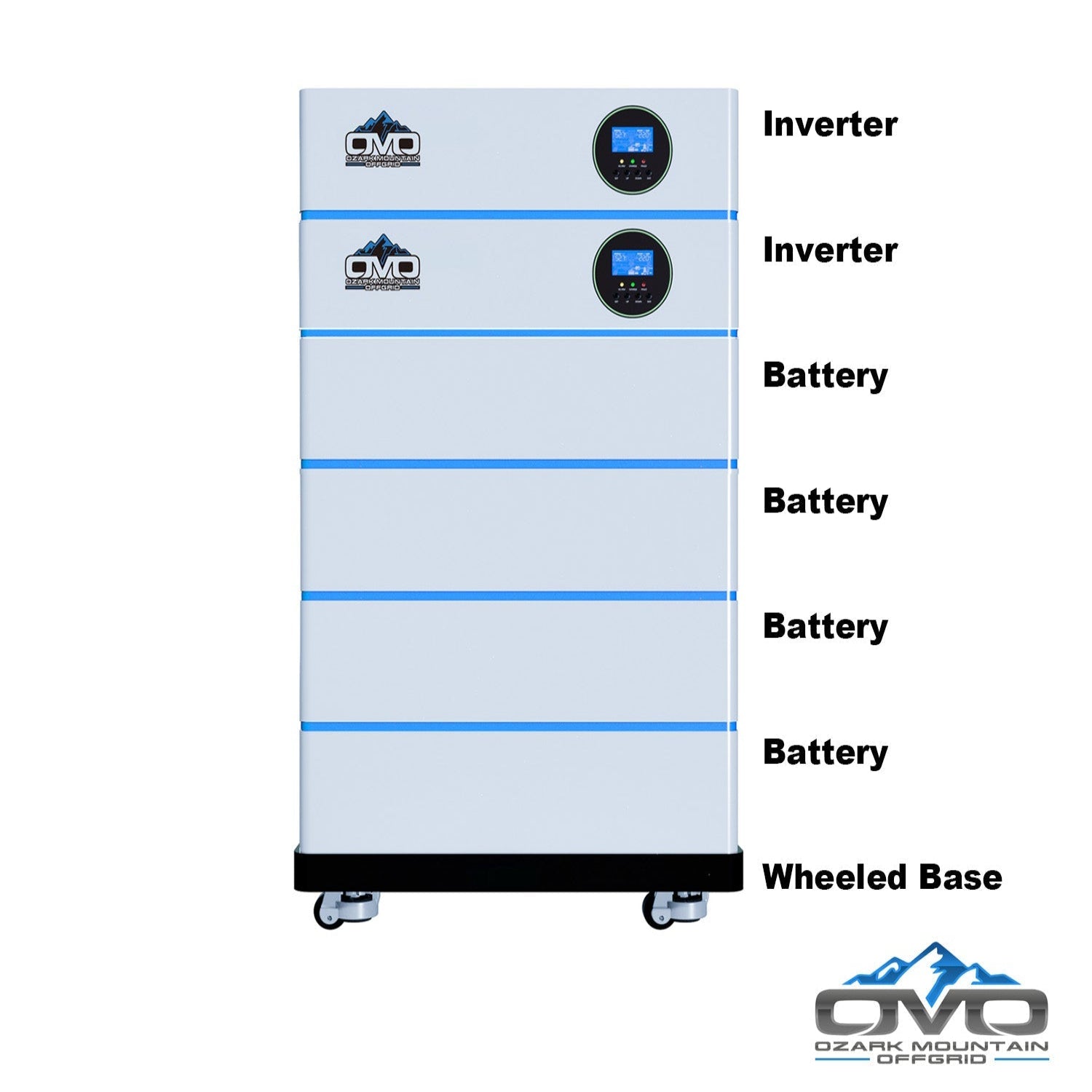

• Included Components:
  2× OMO 5500W 120/240VAC 60Hz Pure Sine Wave Stackable Inverters (11,000W total output)

• Battery System:

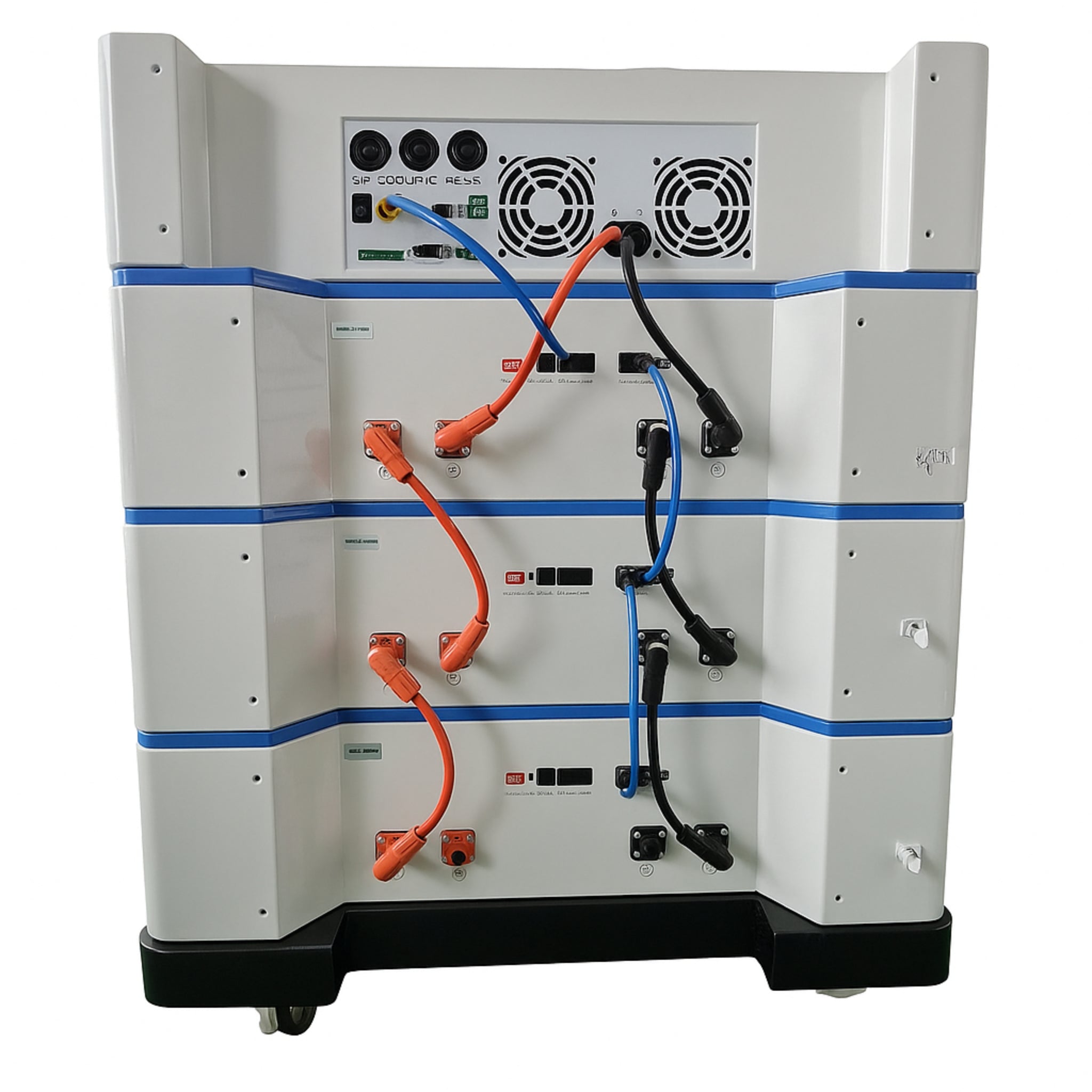

  4× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (Expandable up to 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W solar panels per inverter (panels sold separately)

• System Expansion:
  Fully expandable with more panels and batteries; supports up to 6 inverters in parallel

Features

• Built-In MPPT Controller:
  5500W PV input rating per inverter

• Solar Input Range:
  125–450V DC MPPT range with 22A max PV current per inverter

• AC Output:
  5500W pure sine wave output per inverter

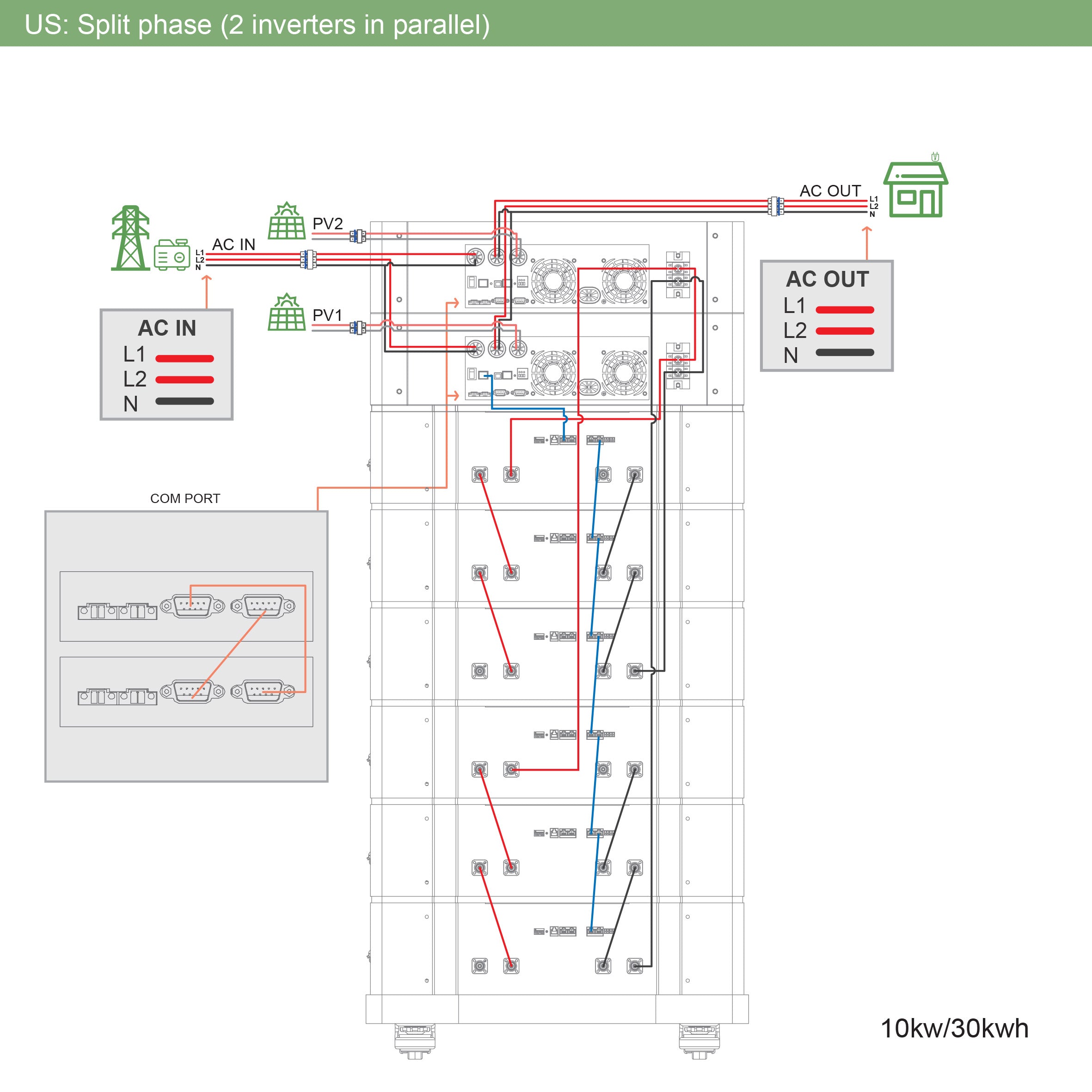

• Parallel Capability:
  Supports up to 6 inverters running in parallel for large-scale installations

• Grid/Generator Input:
  90–140VAC input with 63A bypass current

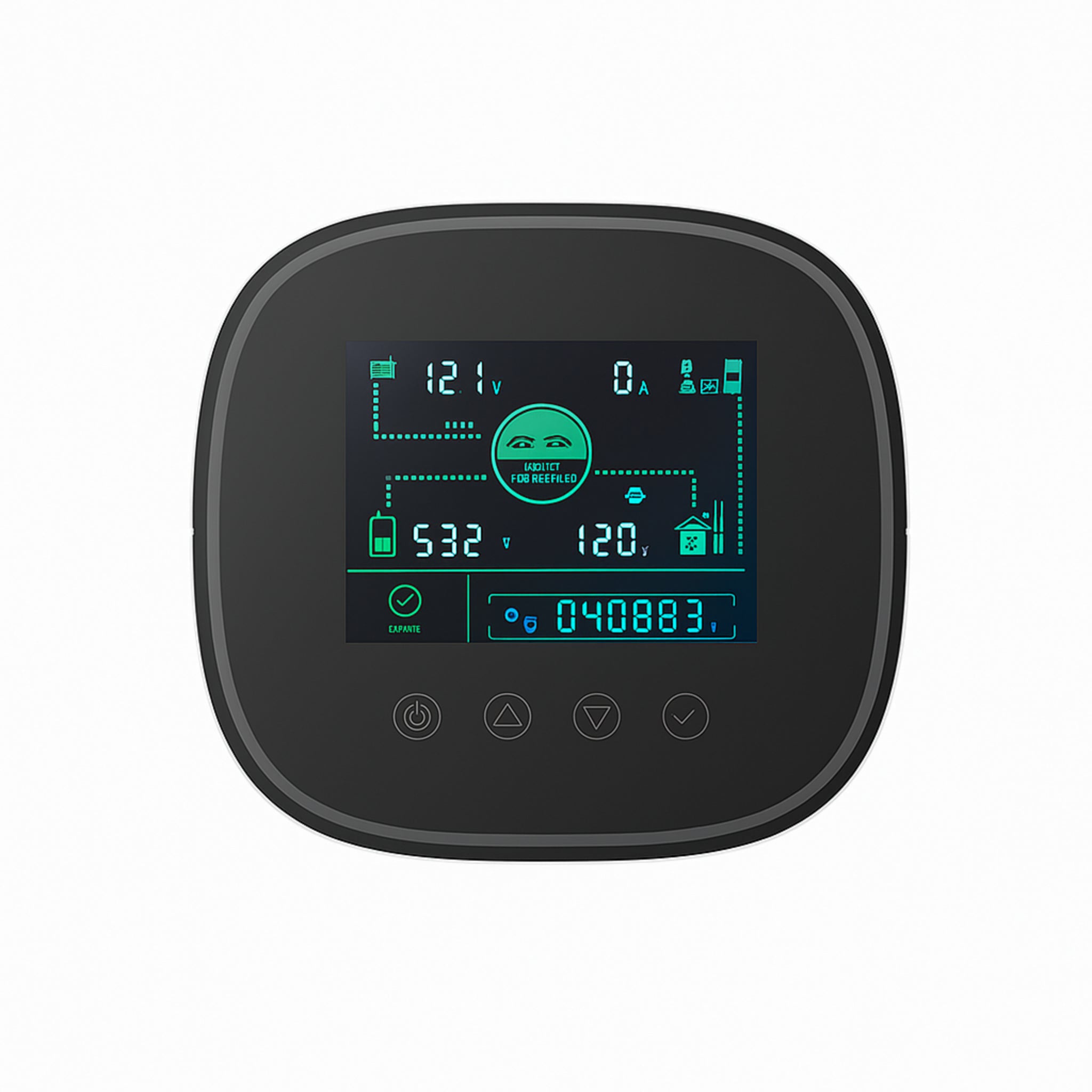

• Smart Monitoring:
  Integrated WiFi & Bluetooth monitoring for real-time tracking and system control

Maintenance

• Daily: Check inverters, battery indicators, and confirm adequate ventilation around the stack system.

• Weekly: Inspect wiring, solar feed connections, and battery temperature readings.

• Annually: Review all cabling, clean terminals, and ensure inverter firmware is up to date.

Warranty

• System Warranty: Manufacturer warranty applies to included inverters and batteries (specific durations vary by component).
