OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6KW Lithium Battery

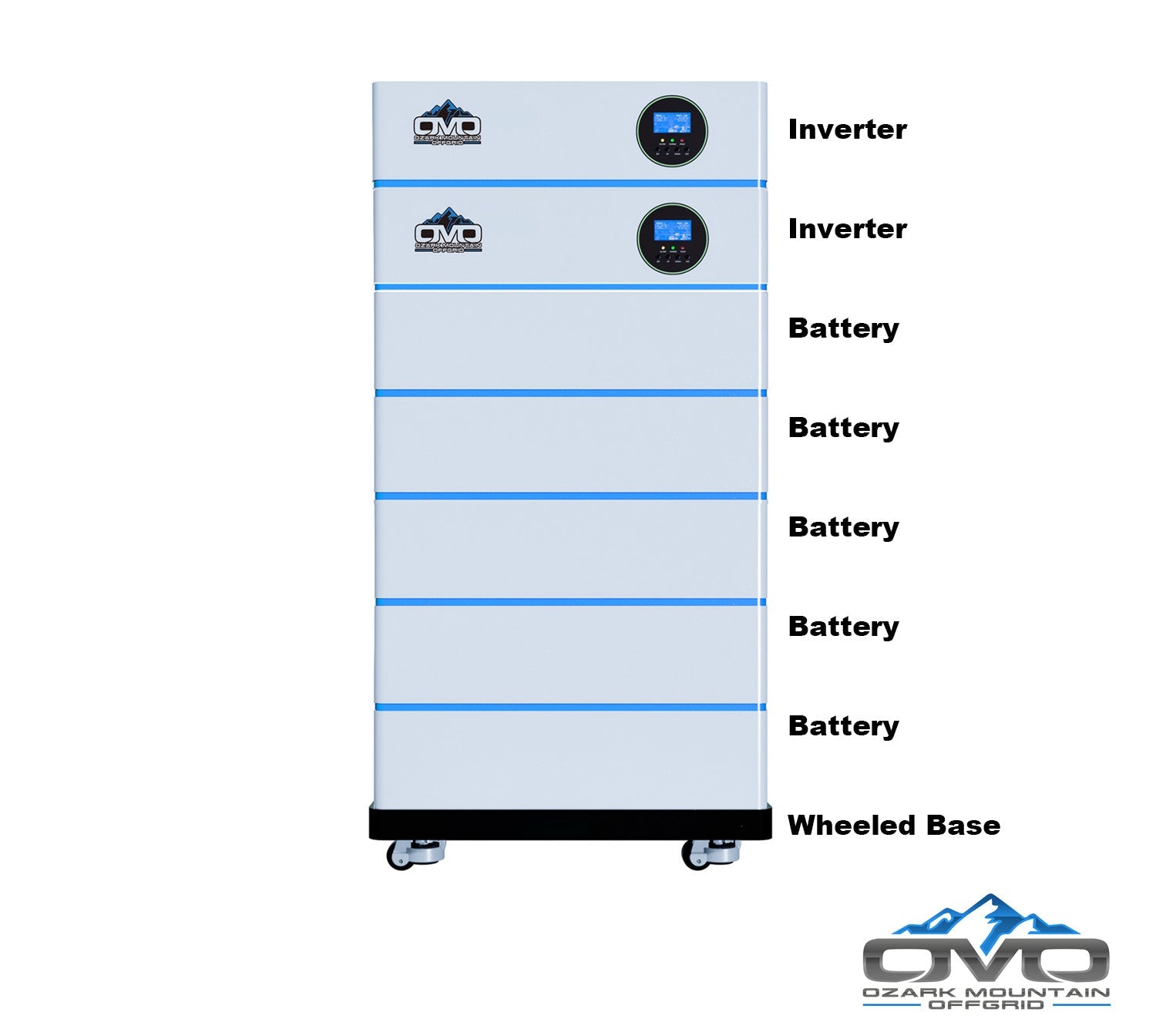

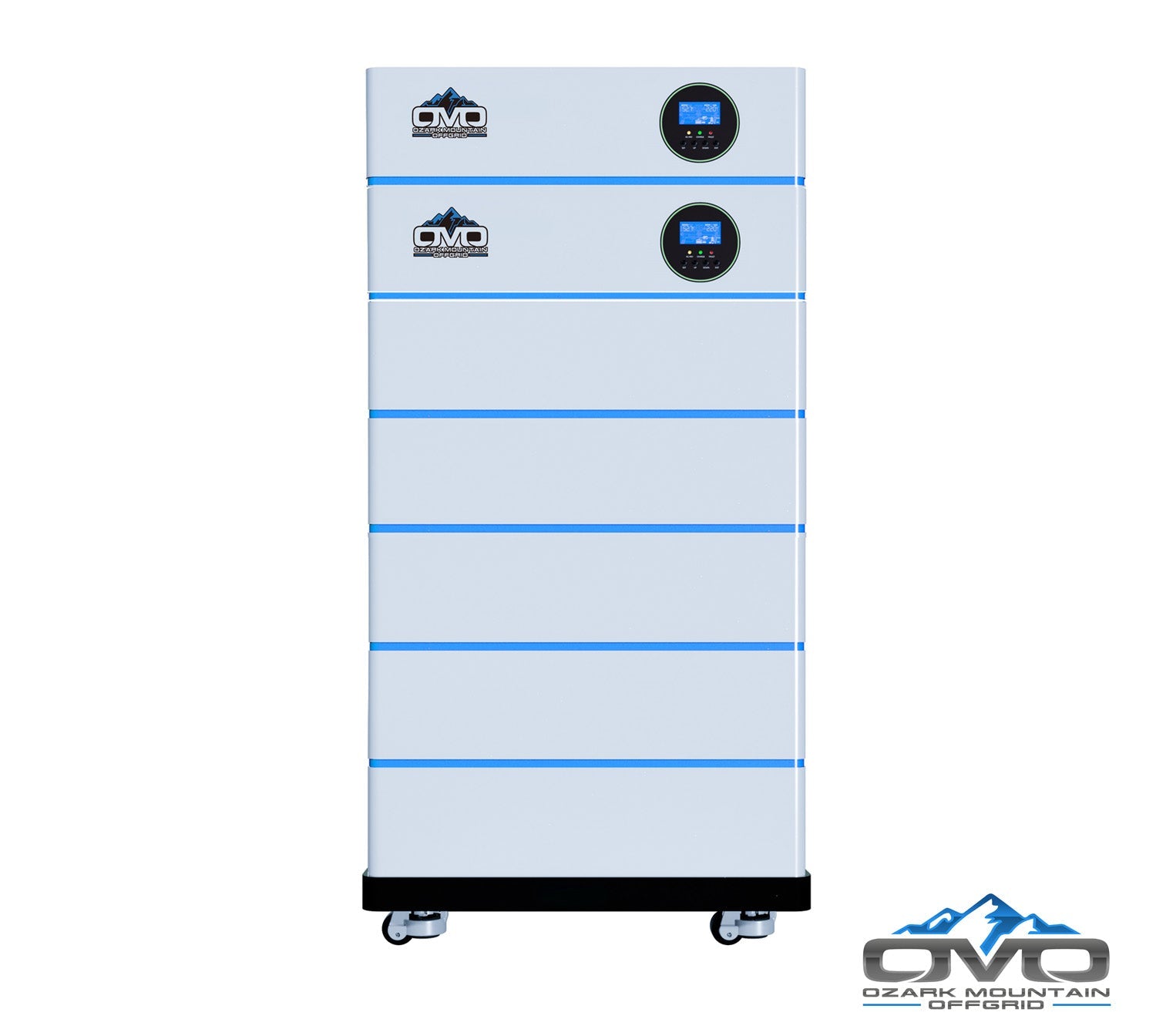

The OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6KW Lithium Battery is a powerful, customizable inverter-and-battery solution designed to meet a broad range of off-grid and hybrid solar energy needs. This configuration includes dual high-output stackable inverters, five heated Bluetooth-enabled LFP batteries, and a sturdy wheeled base for simplified installation.

A solar panel array may be added separately, with support for up to ten 550W solar panels per inverter for robust solar generation.

Specifications

• Included Components:
  2× OMO 5500W 120/240VAC 60Hz Pure Sine Wave Stackable Inverters (11,000W total output)

• Battery System:
  5× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (Expandable up to 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W solar panels per inverter (panels sold separately)

• System Expansion:
  Fully expandable with additional panels and batteries; supports up to 6 inverters in parallel

Features

• Built-In MPPT Controller:
  5500W PV input rating per inverter

• Solar Input Range:
  125–450V DC MPPT operating range with 22A max PV input per inverter

• AC Output:
  5500W pure sine wave AC output per inverter

• Parallel Capability:
  Supports up to 6 inverters in parallel for large-scale or whole-home systems

• Grid/Generator Input:
  90–140VAC support with 63A bypass current

• Smart Monitoring:
  Integrated WiFi & Bluetooth for real-time performance tracking and configuration

Maintenance

• Daily: Verify inverter operation, battery indicators, and ventilation around the stacked system.

• Weekly: Inspect PV wiring, inverter connections, and battery temperature data.

• Annually: Perform a full system inspection, clean terminals, and update inverter firmware.

Warranty

• System Warranty: Manufacturer warranty applies to inverters and batteries (coverage varies by component).
