OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12KW Lithium Battery

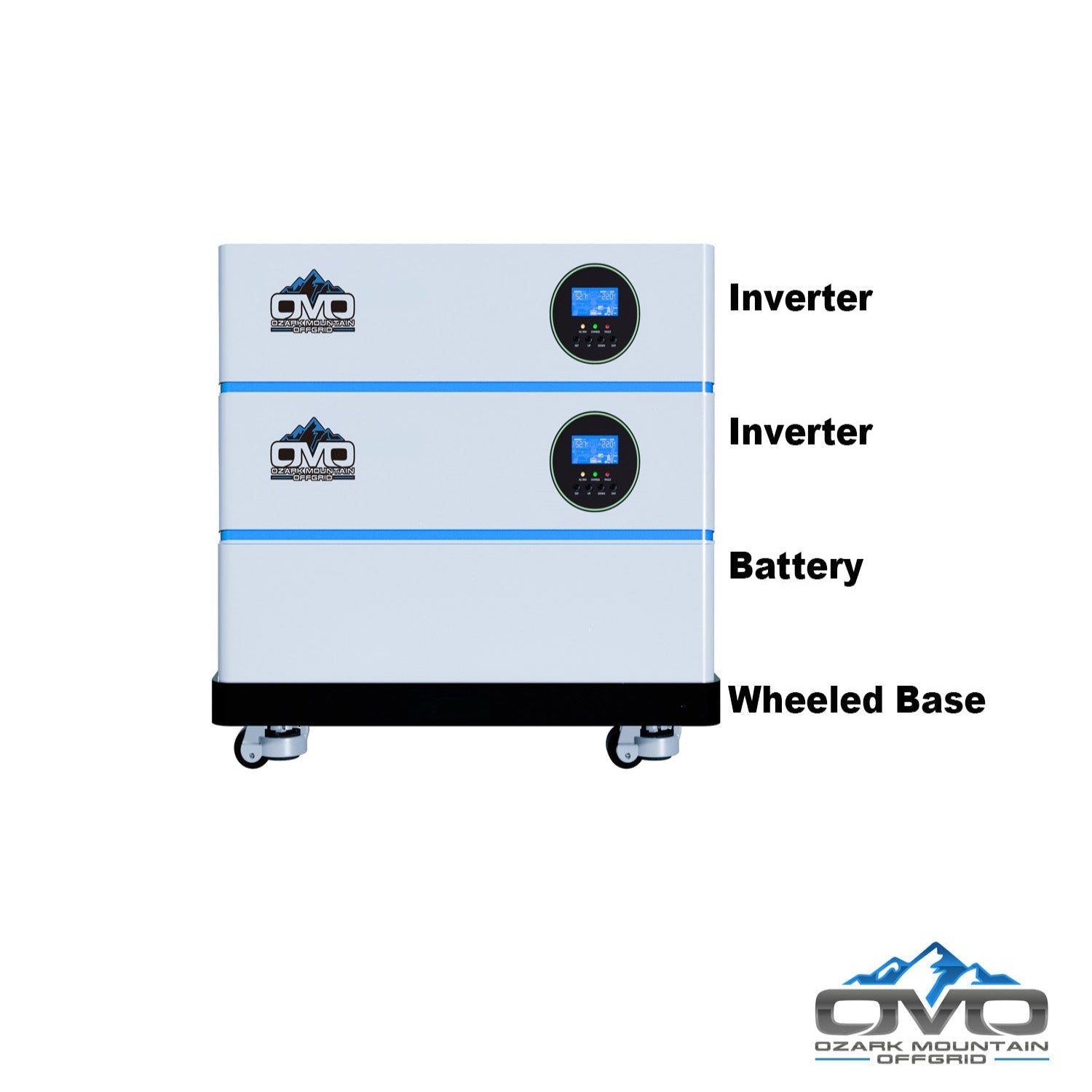

The OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12KW Lithium Battery  is a customizable inverter-and-battery solution designed to meet a wide range of off-grid and backup power needs. This configuration includes dual high-output inverters, a heated Bluetooth-enabled LFP battery, and a rugged wheeled base.

A solar panel array may be added separately, supporting up to ten 550W solar panels per inverter for significant solar charging capacity.

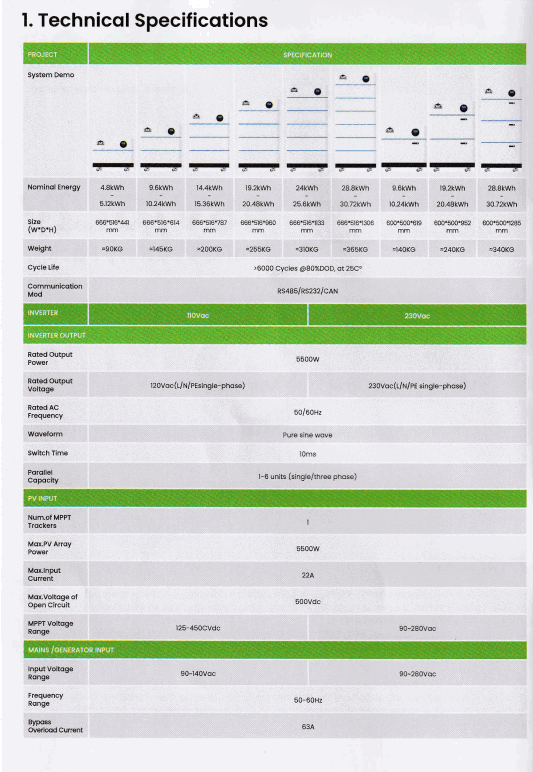

Specifications

• Included Components:
  2× OMO 5500W 120/240VAC 60Hz Pure Sine Wave Stackable Inverters (11,000W total output)

• Battery System:
  1× 51.2V 5.12kWh Heated Stackable LFP Battery with Bluetooth (Expandable up to 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W solar panels per inverter (panels sold separately)

• System Expansion:
  Can be expanded with additional solar panels and batteries based on system design needs

Features

• Built-In MPPT Controller:
  5500W PV input rating per inverter

• Solar Input Range:
  125–450V DC MPPT operating range with 22A max PV input per inverter

• AC Output:
  5500W pure sine wave AC output per inverter

• Parallel Capability:
  Supports up to 6 inverters in parallel for larger systems

• Grid/Generator Input:
  Compatible with 90–140VAC input and 63A bypass operation

• Smart Monitoring:

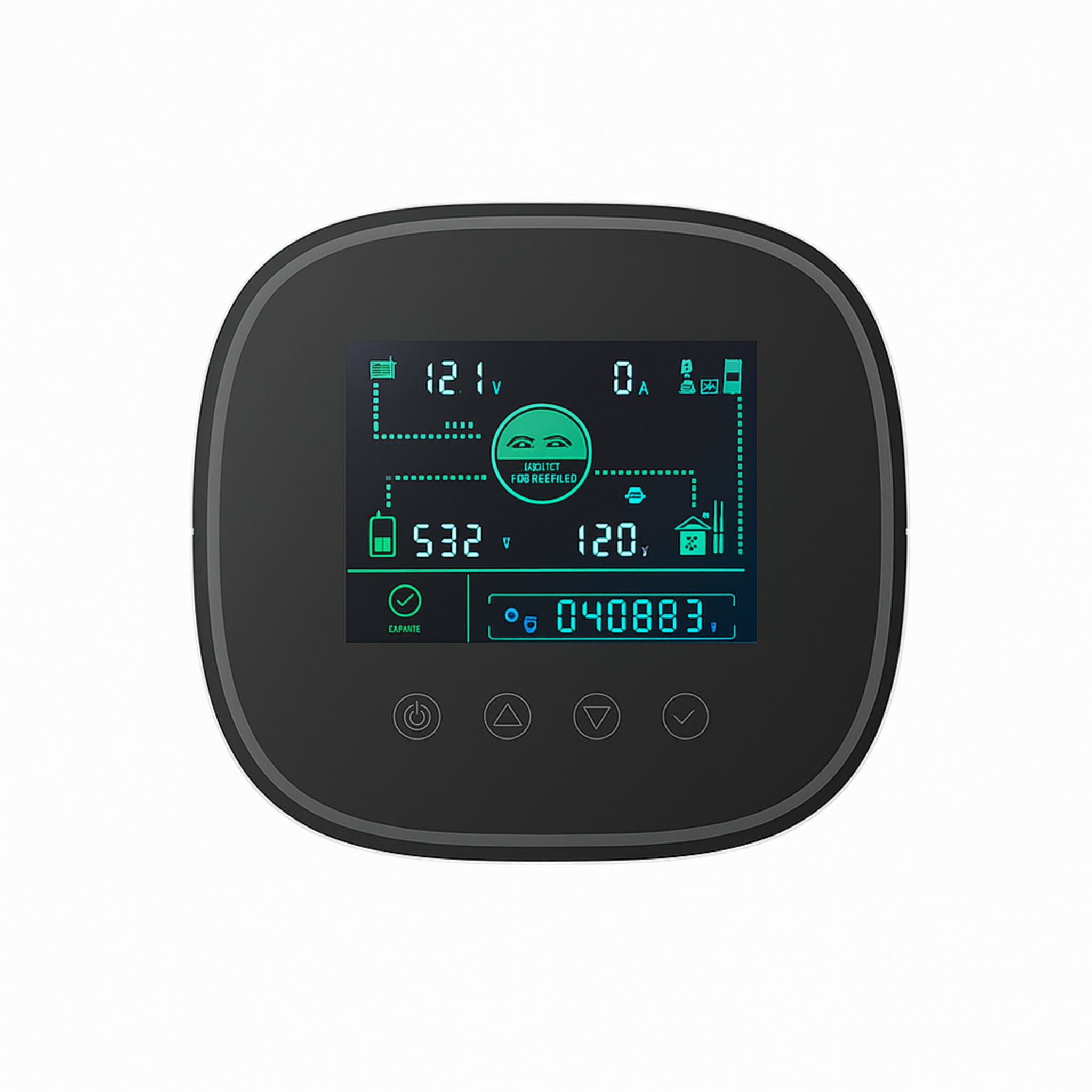

  Integrated WiFi & Bluetooth for real-time app-based system monitoring

Maintenance

• Daily: Check battery temperature, inverter indicators, and proper airflow.

• Weekly: Inspect wiring, confirm PV input stability, and review app performance logs.

• Annually: Perform full system diagnostics, tighten electrical connections, and update firmware.

Warranty

• System Warranty: Manufacturer warranty applies to inverters and batteries (coverage varies by component).
