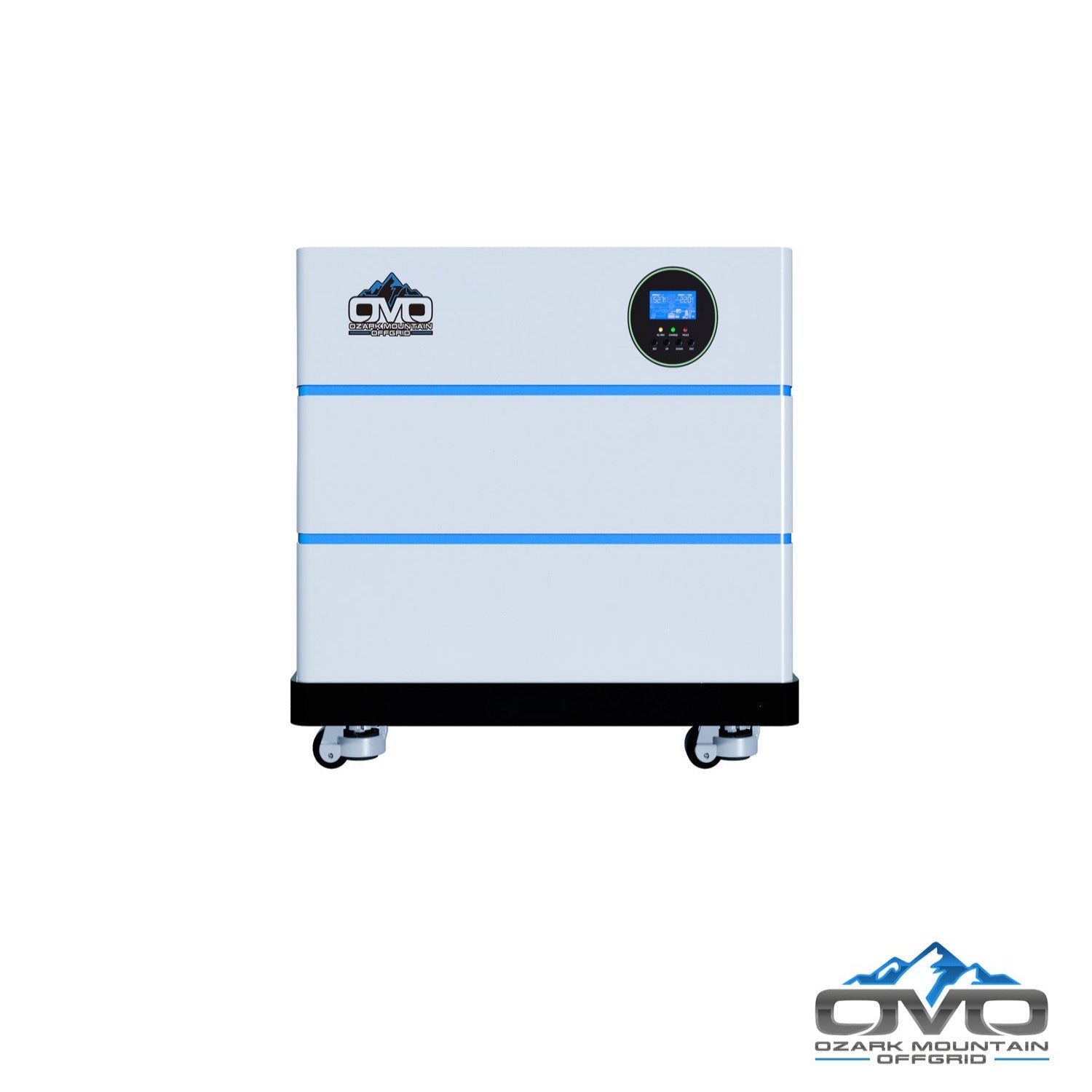

OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24KW Lithium Battery

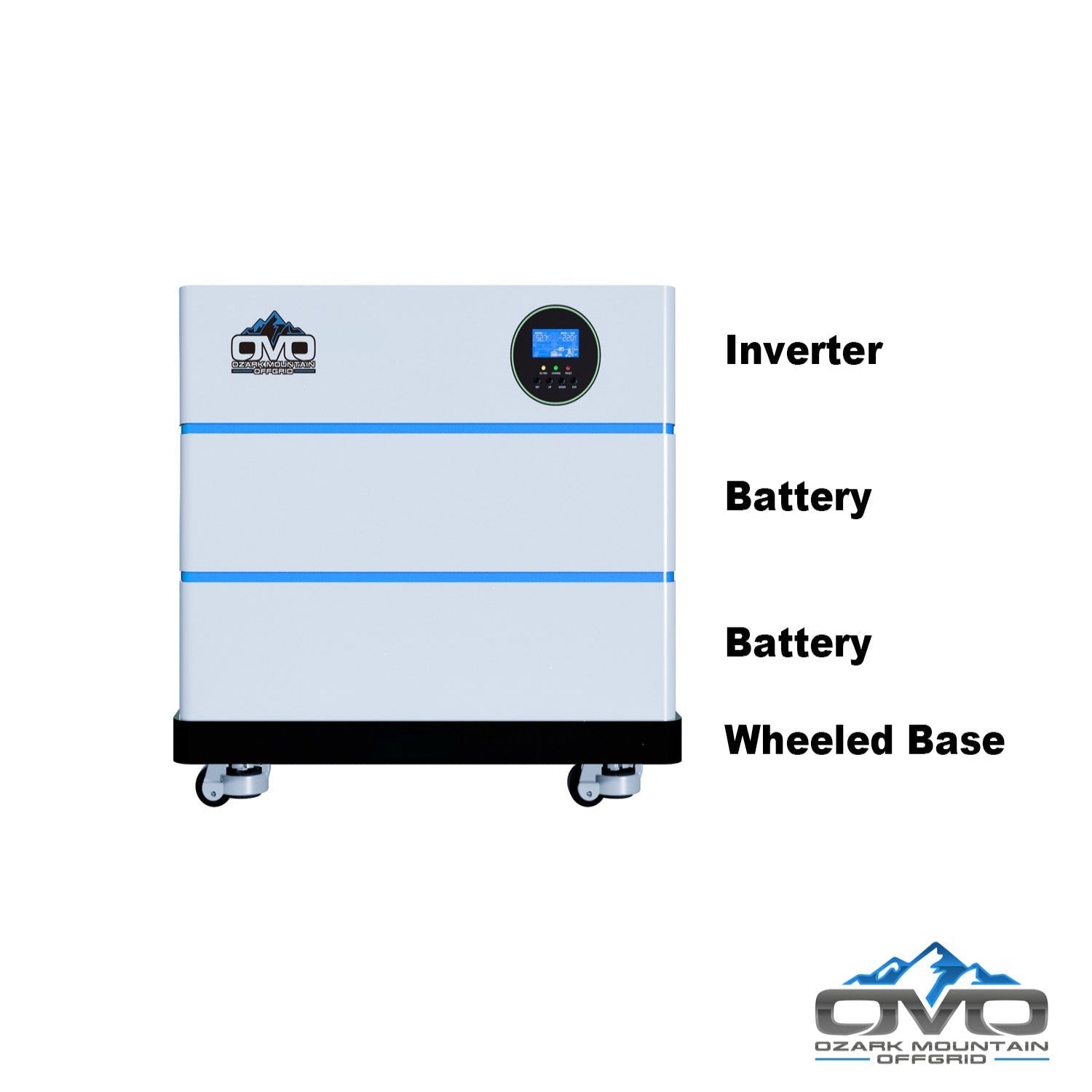

The OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24KW Lithium Battery  is a customizable off-grid and backup power solution built for simplicity, expandability, and reliable performance. This package includes a high-output pure sine inverter, two heated stackable LFP batteries with Bluetooth monitoring, and a durable wheeled base for clean, modular installation.

A solar array may be added as needed, with support for up to ten 550W panels for efficient solar charging.

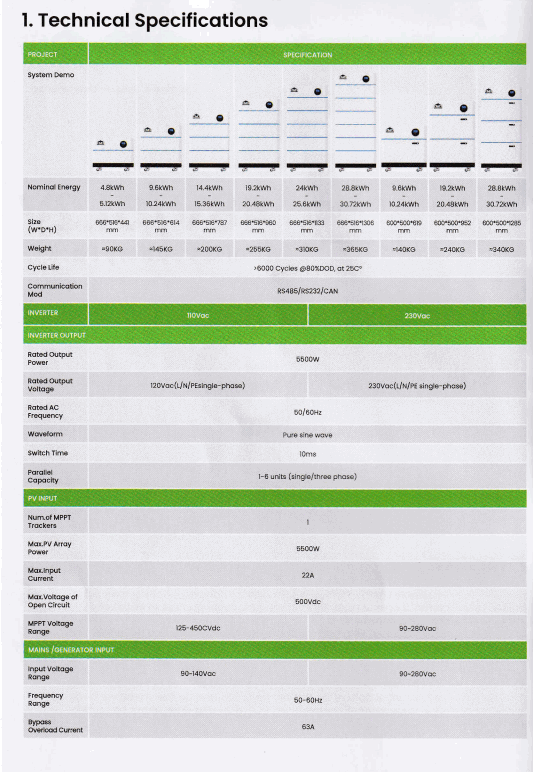

Specifications

• Inverter:
  1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery System:
  2× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (Expandable up to 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W solar panels (sold separately)

• System Expansion:
  Modular design allows future upgrades with additional panels and batteries

Features

• MPPT Solar Controller:
  Built-in 5500W PV-rated MPPT charge controller

• Solar Input:
  22A max PV input current with 125–450V DC MPPT operating range

• AC Output:
  5500W pure sine wave AC output

• Parallel Capability:
  Supports up to 6 stackable inverter units for larger systems

• Grid & Generator Input:
  Compatible with 90–140VAC and supports 63A bypass operation

• Smart Monitoring:

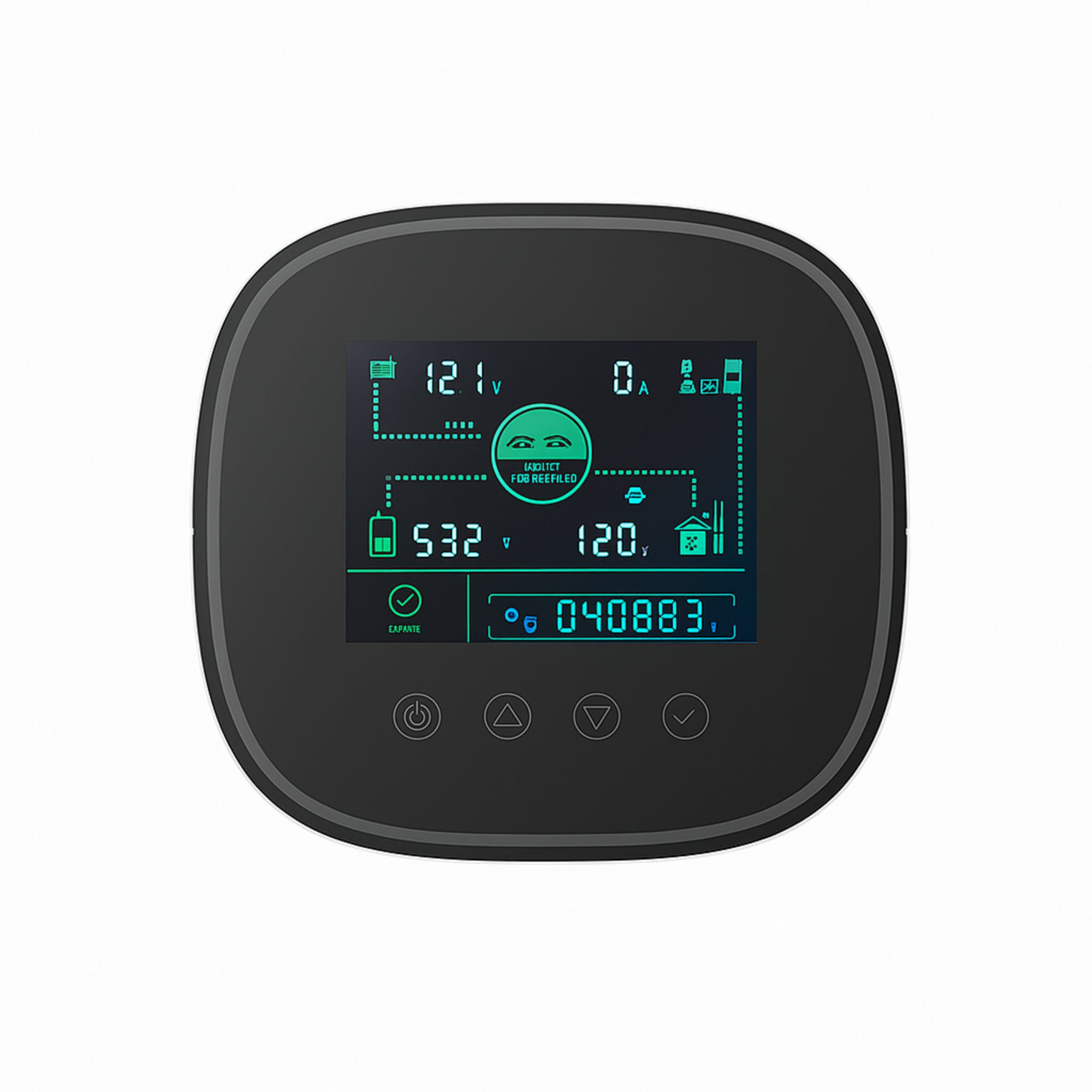

  Integrated WiFi & Bluetooth app support for system visibility

Maintenance

• Daily: Check inverter status, battery temperatures, and airflow.

• Weekly: Verify wiring tightness, inspect PV input, and review app monitoring logs.

• Annually: Perform full diagnostics, clean terminals, and update inverter & battery firmware.

Warranty

• Documentation: Inverter Specification Sheet

• Battery Specs: Battery Specification Sheet
