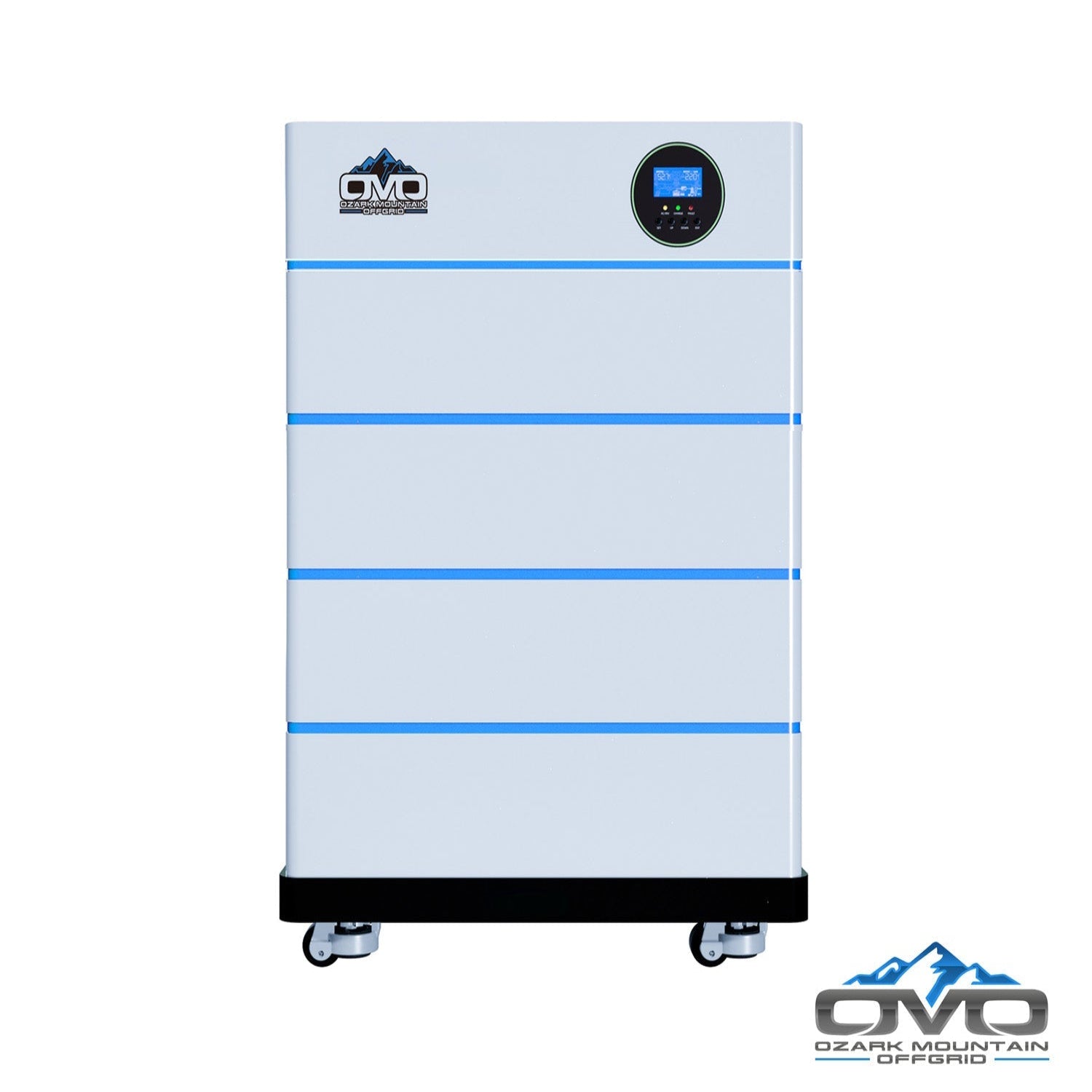

OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 20.48KW Lithium Battery

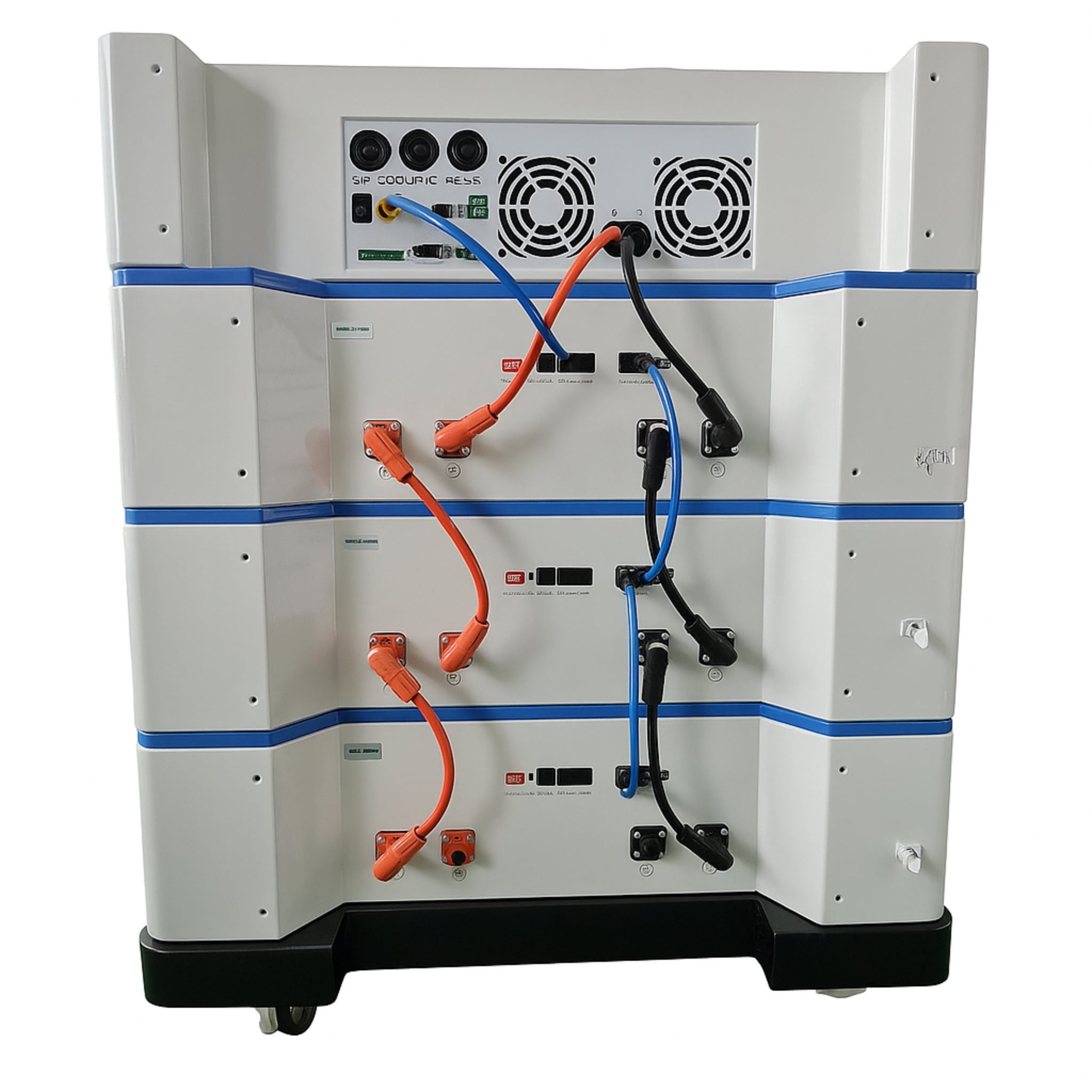

The OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 20.48KW Lithium Battery  provides a powerful and modular solution for off-grid and backup power needs. This system includes a high-efficiency inverter, four heated Bluetooth-enabled LFP batteries, and a durable wheeled base for a clean and expandable installation.

A solar array may be added as needed, with support for up to ten 550W panels for optimal charging capacity.

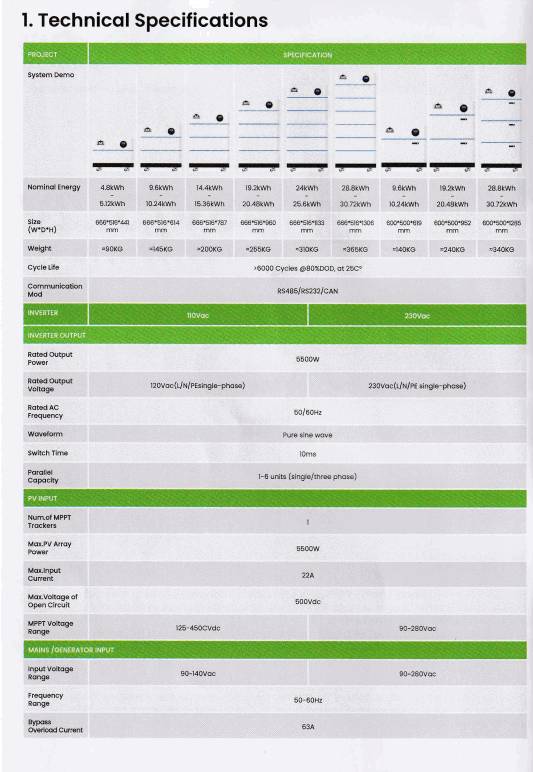

Specifications

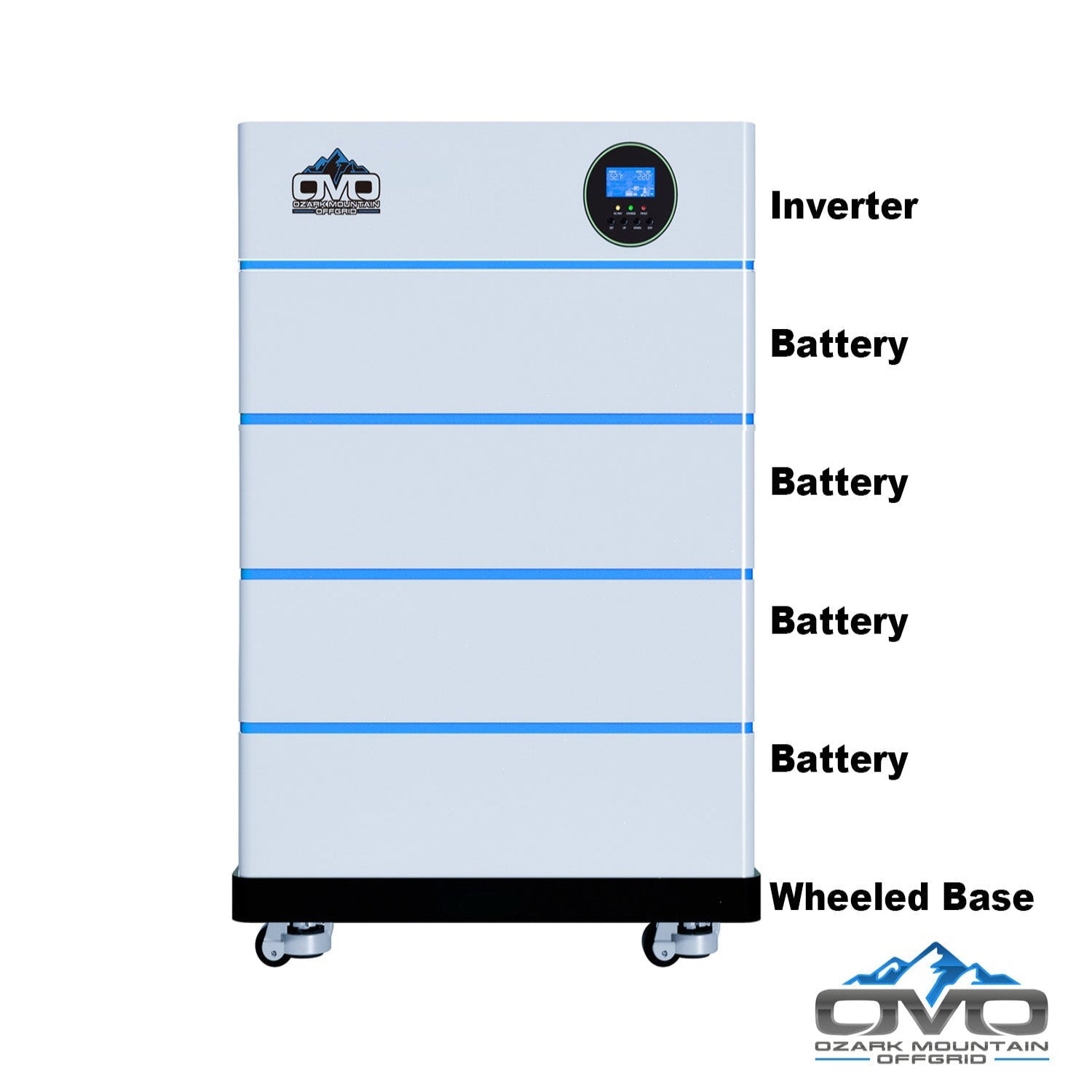

• Inverter:
  1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery System:
  4× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (Expandable up to 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W panels (sold separately)

• System Expansion:
  Modular system allows further upgrades with additional panels and batteries

Features

• MPPT Solar Controller:
  Built-in 5500W MPPT charge controller improves charging performance

• Solar Input:
  22A max PV input current with a 125–450V MPPT operating range

• AC Output:
  5500W pure sine AC output for stable and clean power

• Parallel Capability:
  Supports up to 6 stackable inverter units for larger system builds

• Grid & Generator Input:
  90–140VAC input range with a 63A bypass capability

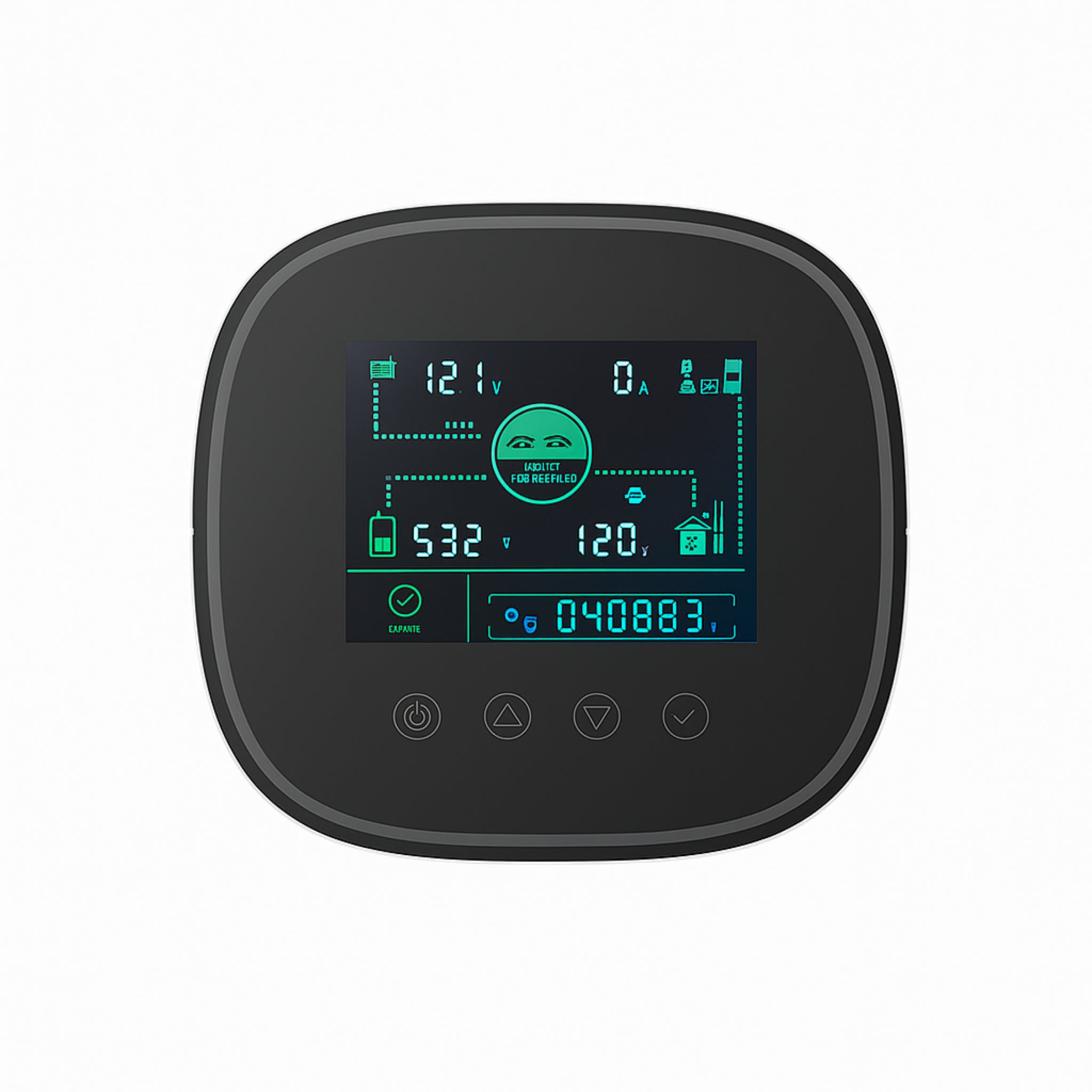

• Smart Monitoring:
  Integrated WiFi and Bluetooth connectivity for complete system visibility

Maintenance

• Daily: Monitor inverter status, battery temperature, and airflow via the app.

• Weekly: Inspect PV wiring, check terminals, and review system logs.

• Annually: Perform full diagnostic checks and apply inverter/battery firmware updates.

Warranty

• Inverter Documentation:
  Inverter Specification Sheet

• Battery Documentation:
  Battery Specification Sheet
