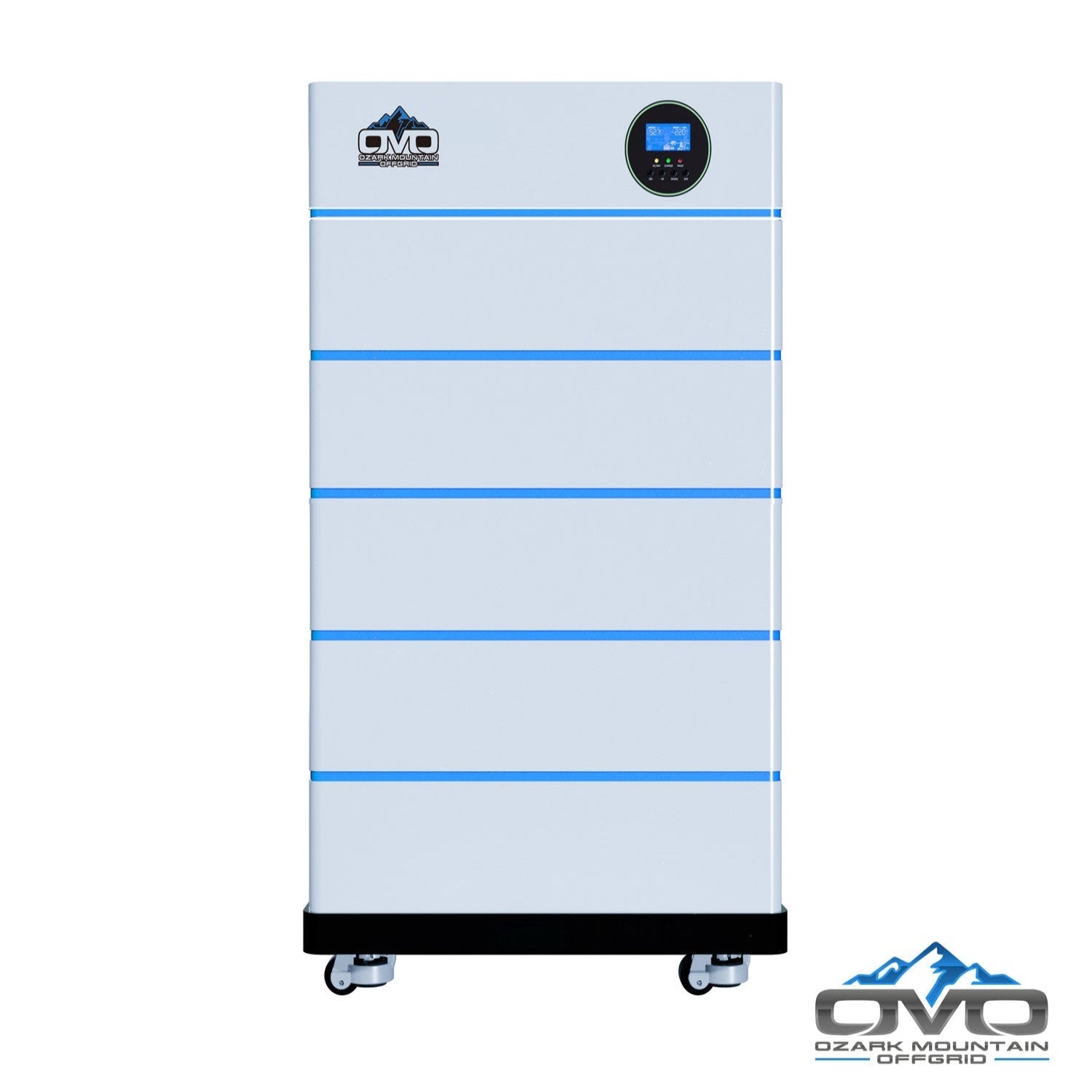

OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 25.6KW Lithium Battery

The OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 25.6KW Lithium Battery  is a modular, high-performance solution for off-grid and backup power. This package includes a 5.5kW pure sine inverter, five heated Bluetooth-enabled LFP batteries, and a wheeled base for a clean, expandable installation. A solar array can be added as needed, supporting up to ten 550W panels for efficient charging.

Specifications

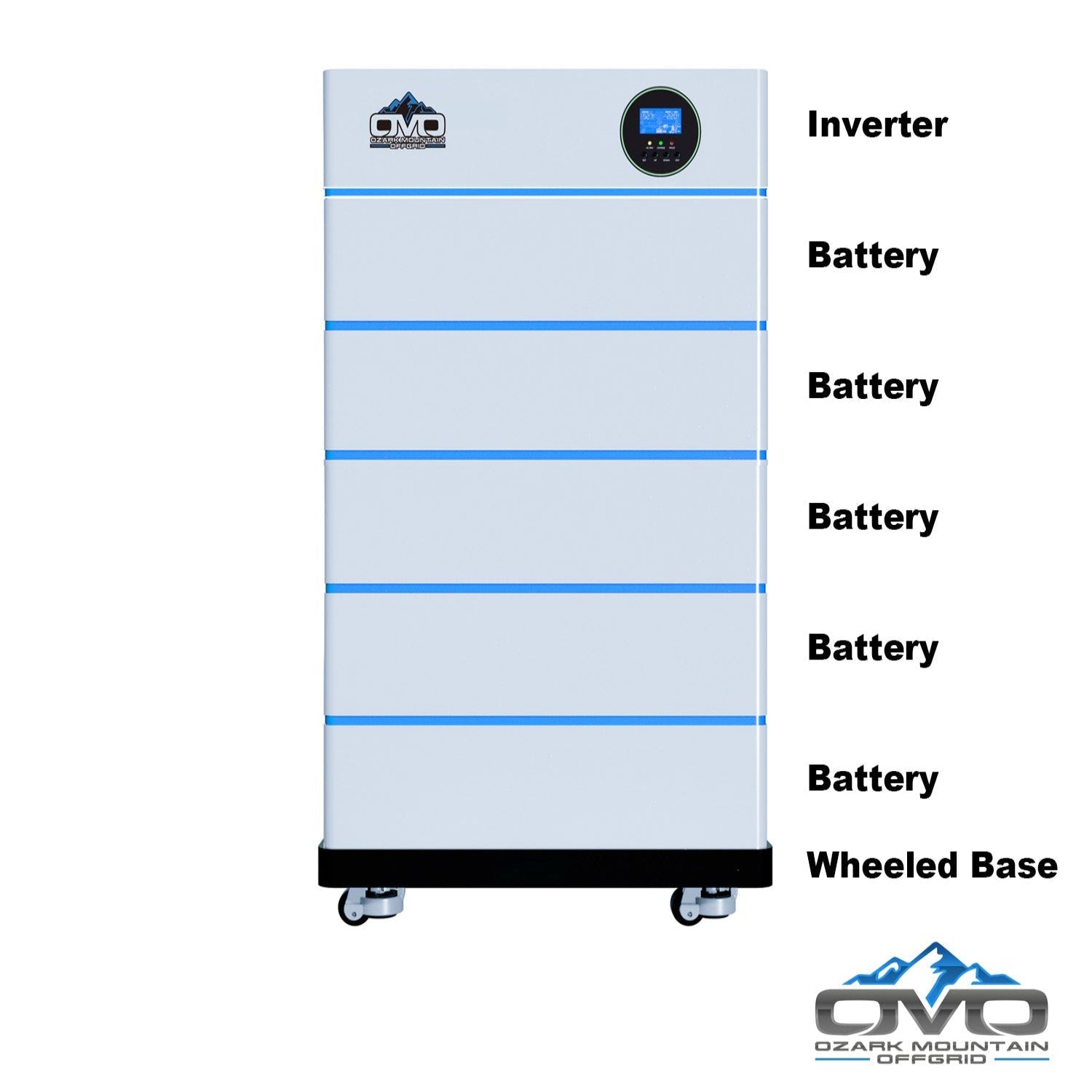

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery System: 5× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (expandable up to 6 batteries per inverter)

• Mounting Base: 1× OMO Stack System Wheeled Base

• Solar Compatibility: Supports up to 10× 550W panels (sold separately)

• System Expansion: Modular design for future panel and battery additions

Features

• MPPT Solar Controller: Built-in 5500W MPPT charge controller enhances charging efficiency

• Solar Input: 22A max PV input; wide 125–450V DC MPPT range

• AC Output: 5500W pure sine output for clean, stable power

• Parallel Capability: Scale up to 6 inverter units in parallel

• Grid & Generator Input: 90–140VAC input with 63A bypass

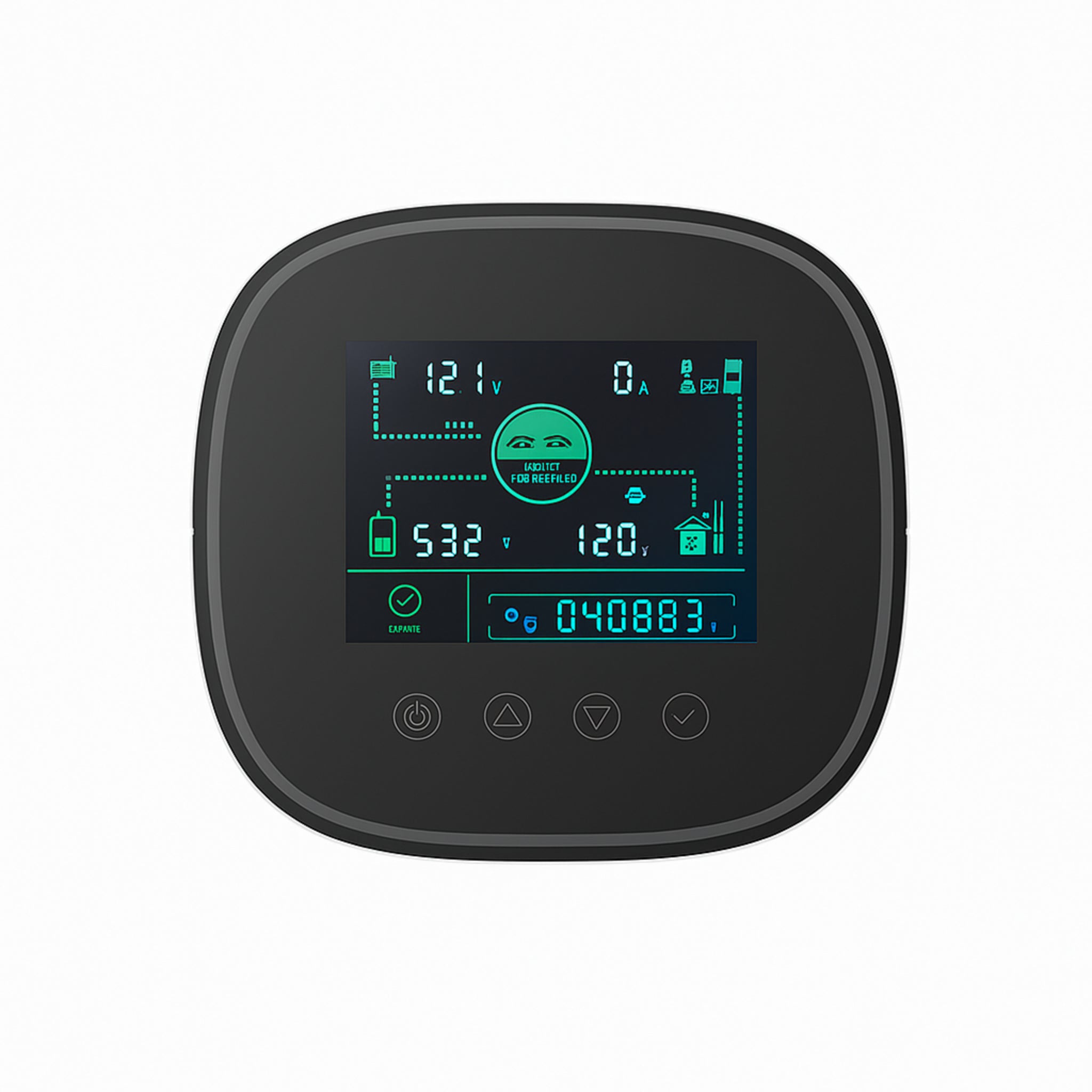

• Smart Monitoring: Integrated WiFi & Bluetooth for live system visibility

Maintenance

• Daily: Check inverter status, battery temperature, and airflow via the app.

• Weekly: Inspect PV wiring, tighten terminals, and review logs.

• Annually: Run full diagnostics and apply firmware updates for inverter and batteries.

Warranty

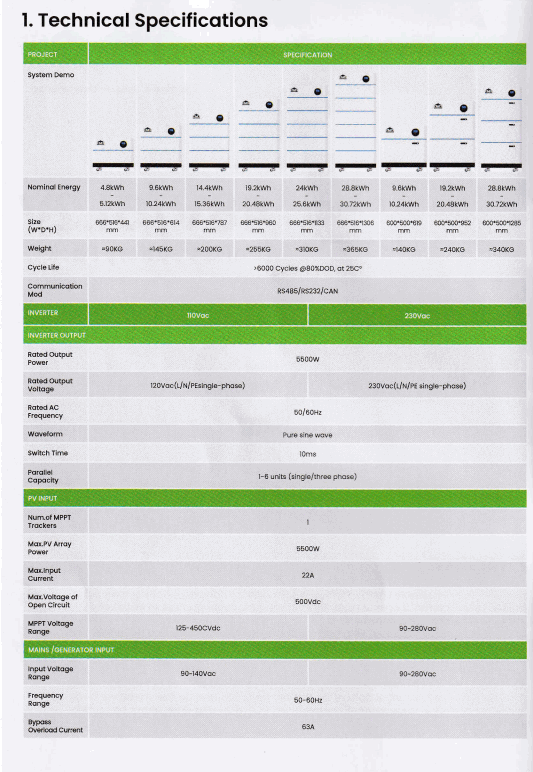

• Inverter Documentation: Inverter Specification Sheet

• Battery Documentation: Battery Specification Sheet
