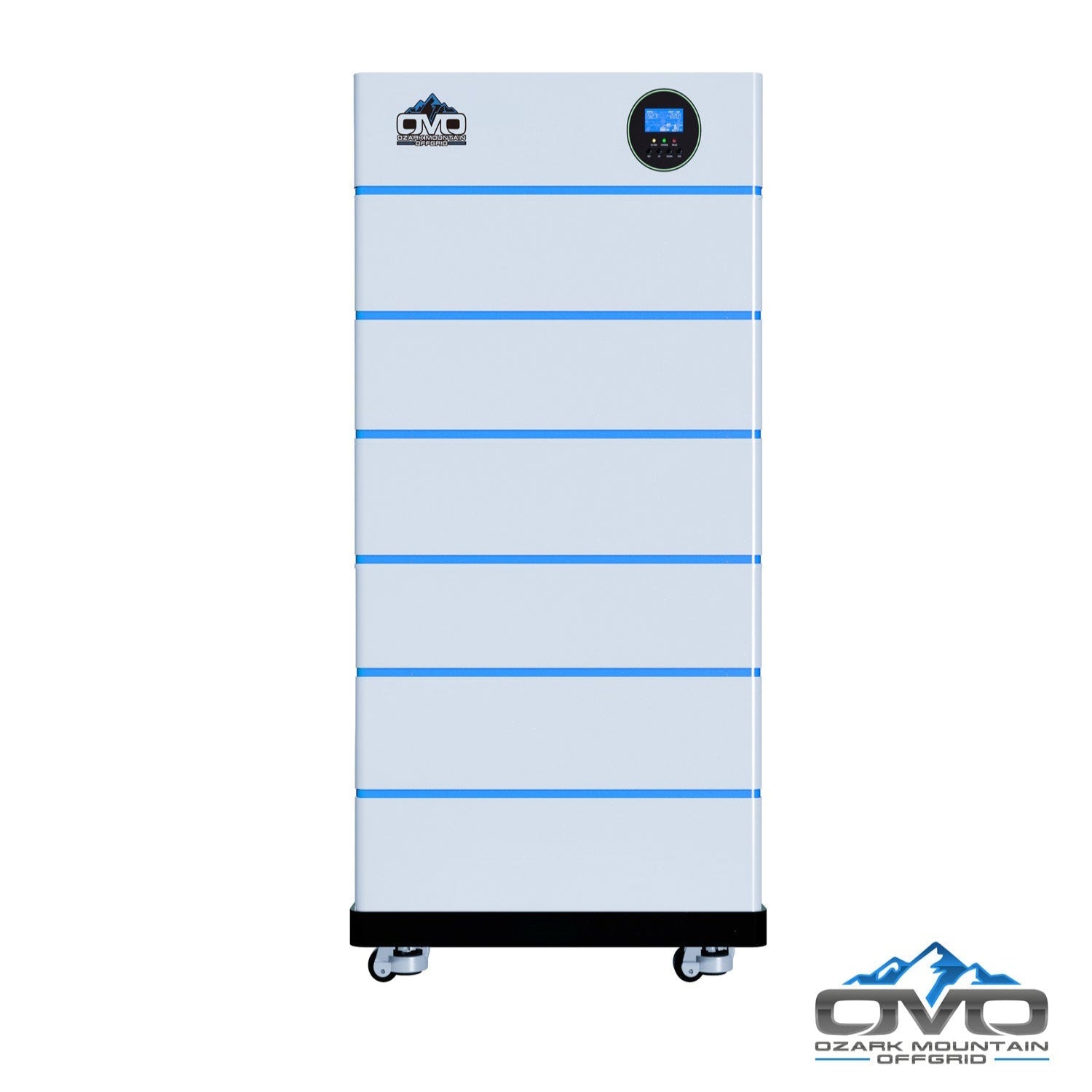

OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72KW Lithium Battery

The OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72KW Lithium Battery is a fully customizable, high-performance inverter-and-battery solution engineered for homeowners and off-grid users who demand reliability and flexibility. This system includes dual high-output inverters, six heated Bluetooth-enabled LFP batteries, and a durable wheeled stack base.

A solar panel array may be added separately, with support for up to ten 550W solar panels per inverter for powerful solar generation capabilities.

Specifications

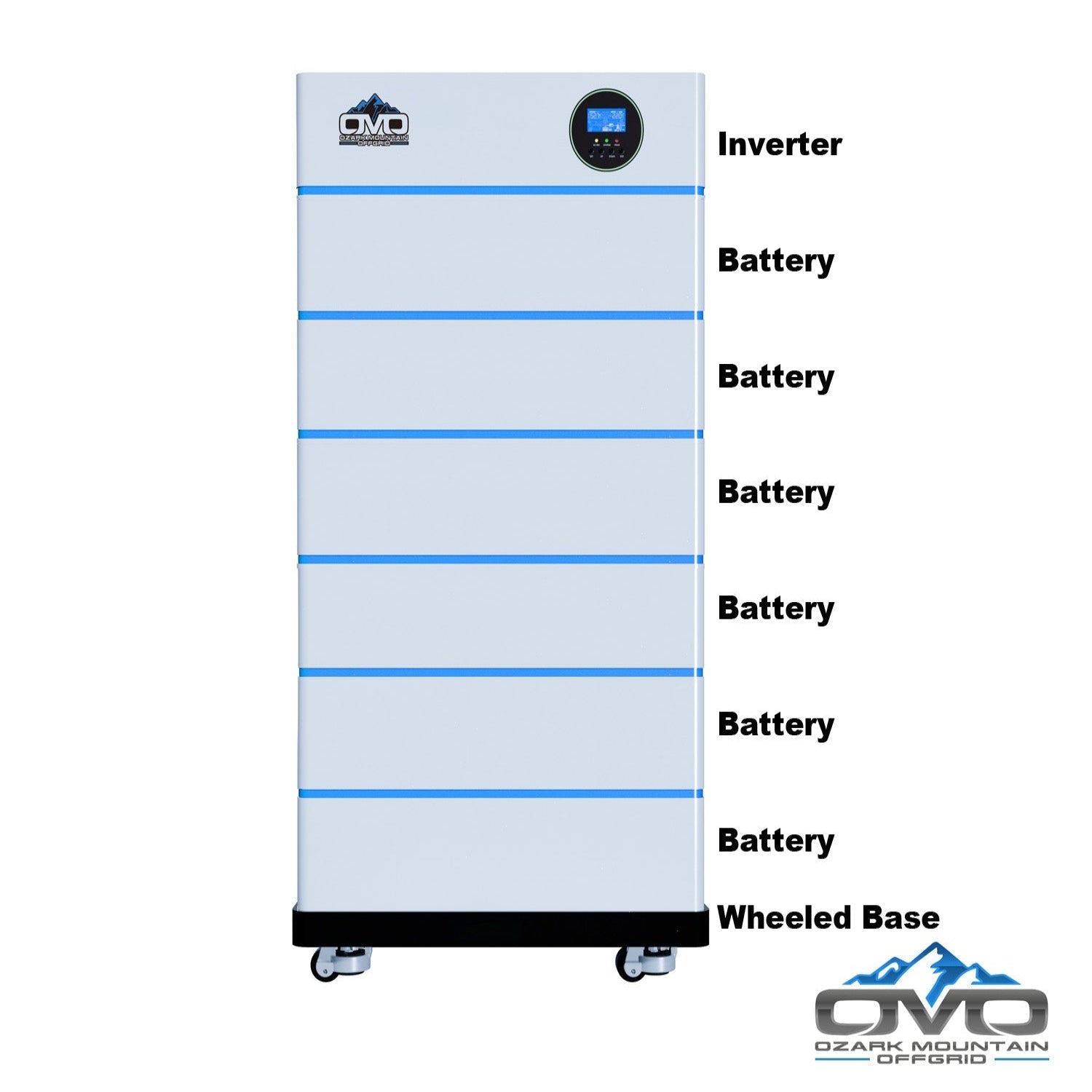

• Included Components:
  2× OMO 5500W 120/240VAC 60Hz Pure Sine Wave Stackable Inverters (11,000W total output)

• Battery System:
  6× 51.2V 5.12kWh Heated Stackable LFP Batteries with Bluetooth (Max capacity per inverter reached: 6 batteries per inverter)

• Mounting Base:
  1× OMO Stack System Wheeled Base

• Solar Compatibility:
  Supports up to 10× 550W solar panels per inverter (panels sold separately)

• System Expansion:
  Expandable with additional panels; supports up to 6 inverters in parallel

Features

• Built-In MPPT Controller:
  5500W PV input rating per inverter

• Solar Input Range:
  125–450V DC MPPT operating range with 22A max PV input per inverter

• AC Output:
  5500W pure sine wave AC output per inverter

• Parallel Capability:
  Supports up to 6 inverters in parallel for custom large-scale configurations

• Grid/Generator Input:
  90–140VAC compatibility with 63A bypass current

• Smart Monitoring:
  Built-in WiFi & Bluetooth connectivity for real-time monitoring and configuration

Maintenance

• Daily: Verify inverter indicators, battery health status, and airflow around the stack.

• Weekly: Inspect PV cabling, verify app monitoring data, and ensure stable mounting.

• Annually: Schedule a full system diagnostic, clean electrical contacts, and update firmware.

Warranty

• System Warranty: Manufacturer warranty applies to inverters and batteries (coverage varies by component).
