OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12KW Lithium Battery

The OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12KW Lithium Battery  is a compact, customizable power solution designed for small off-grid setups, mobile applications, and backup home power. This configuration includes a 5.5kW pure sine wave inverter, one heated LFP Bluetooth battery, and a wheeled base for a clean, modular installation. A solar array can be added as needed, supporting up to ten 550W panels for efficient renewable charging.

Specifications

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery System: 1× 51.2V 5.12kWh Heated Stackable LFP Battery with Bluetooth (expandable up to 6 batteries per inverter)

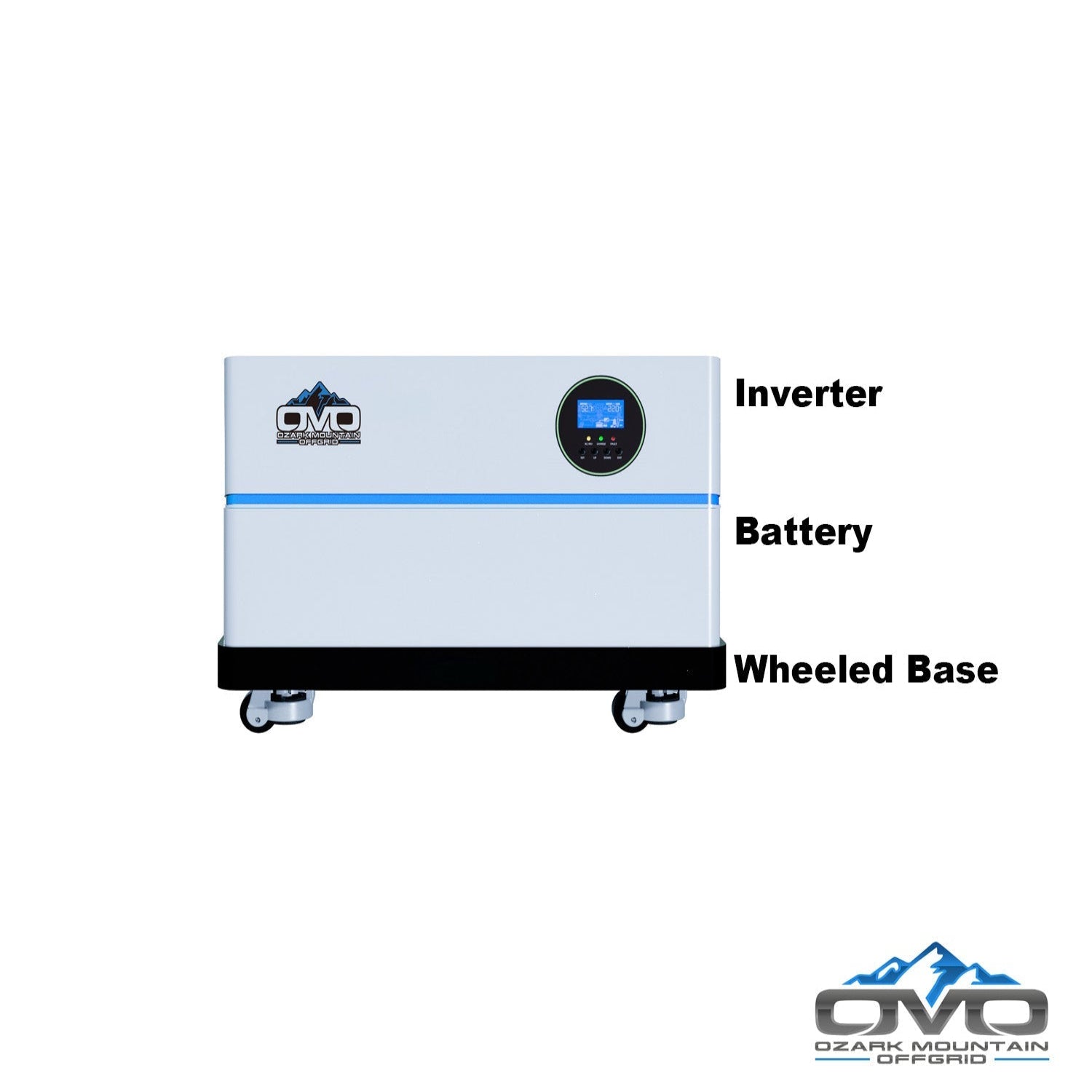

• Mounting Base: 1× OMO Stack System Wheeled Base

• Solar Compatibility: Supports up to 10× 550W solar panels (sold separately)

• System Expansion: Modular design allows easy upgrades with more panels or batteries

Features

• MPPT Charge Controller: Built-in 5500W MPPT controller for high-efficiency solar charging

• Solar Input: 22A max PV input with a wide 125–450V DC operating window

• AC Output: 5500W pure sine wave output ensures clean, stable power for sensitive electronics

• Parallel Capability: Supports up to 6 inverters in parallel for system growth

• Grid & Generator Input: 90–140VAC input with 63A bypass capability

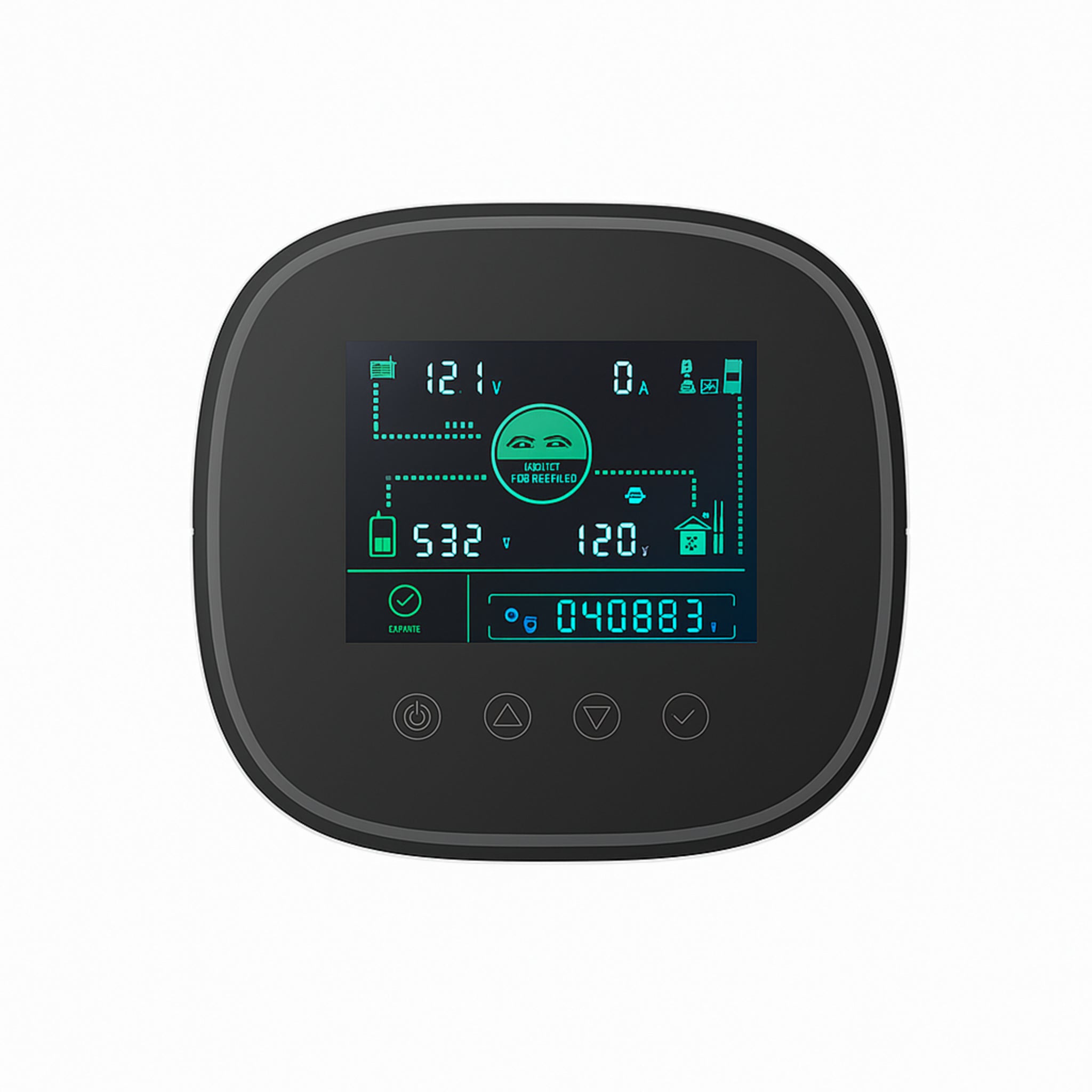

• Smart Monitoring: Built-in WiFi & Bluetooth connectivity for easy app-based monitoring

Maintenance

• Daily: Review inverter status and battery performance in the monitoring app

• Weekly: Inspect wiring, verify ventilation, and check solar input readings

• Annually: Perform a full system diagnostic and update firmware as available

Warranty

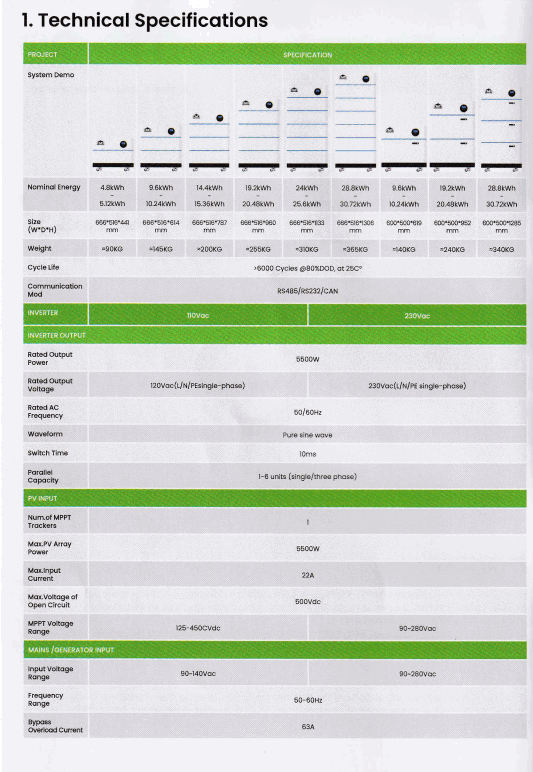

• Inverter Documentation: Inverter Specification Sheet

• Battery Documentation: Battery Specification Sheet
