OMO Patriot 48V 5.12KW Wall Hanging Heated LifePO4 Lithium Battery System

The OMO Patriot 48V 5.12KW Wall Hanging Heated LifePO4 Lithium Battery System  is a versatile, wall-mounted LiFePO4 energy storage solution designed for modern off-grid, hybrid, and backup power setups. With integrated heating, Bluetooth monitoring, and broad inverter compatibility—including Sol-Ark, EG4, and Schneider—the Patriot system offers exceptional performance, long cycle life, and scalable energy capacity. Its compact wall-hang design makes it ideal for residential or commercial installations where space efficiency matters.

Specifications

• Battery Included: 1× 5.12kWh OMO 48V Patriot Lithium Battery with Wall Bracket

• Instruction Manual: 1× Installation & Operating Guide

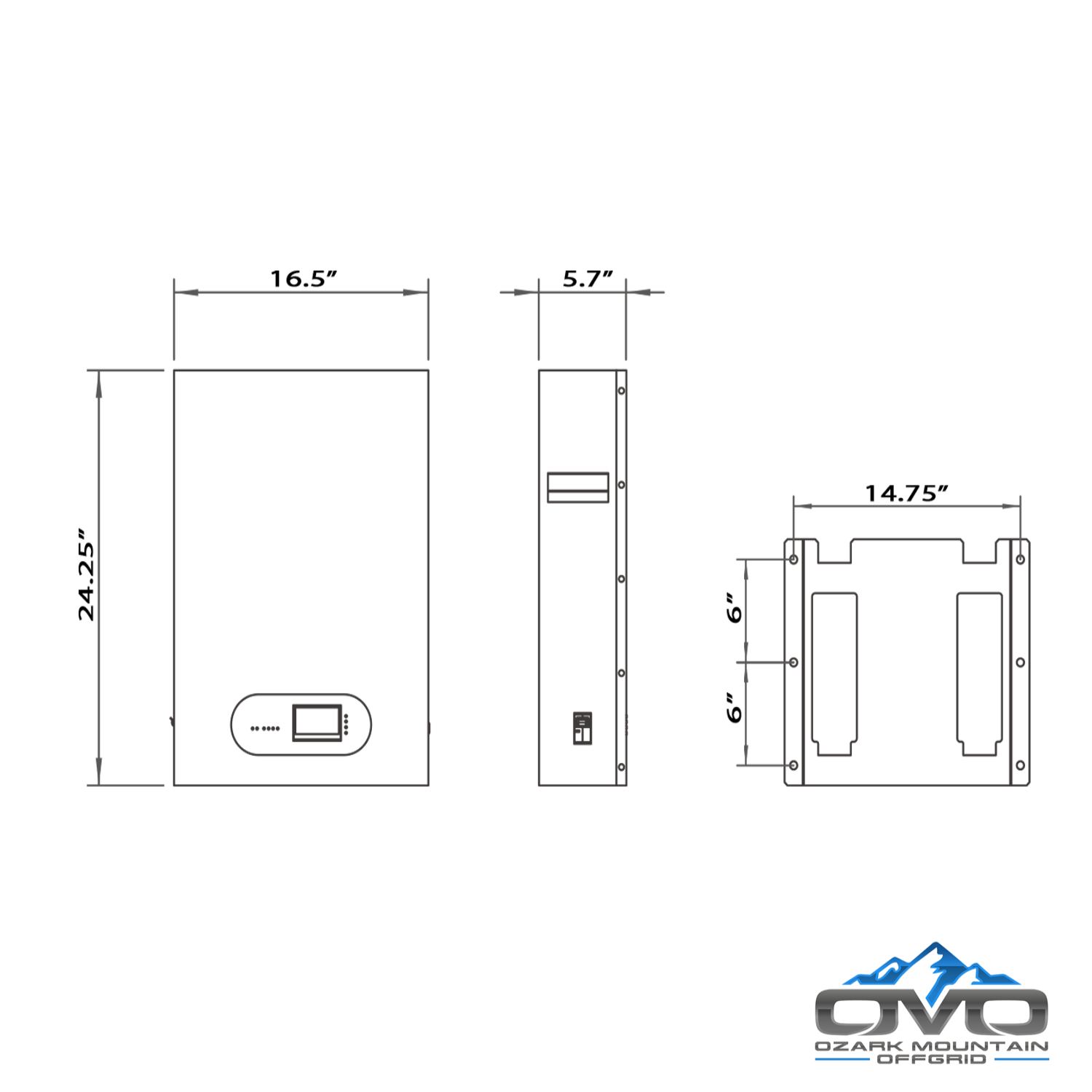

• Dimensions: 24" × 16.5" × 5.7"

• Weight: 116 lbs

• Battery Rating: 5120Wh / 100Ah / 51.2V nominal

Features

• Long Life Cycle: 6000+ cycles for extended durability

• Power Handling: Max Charge 100A / Max Discharge 100A

• Scalability: Connect up to 16 units in parallel

• Communication Ports: RS232 & RS485 support for inverter integration

• Premium Battery Cells: UL 9540A Certified Grade A EVE Cells

• Compatibility: Works with Sol-Ark, EG4, and Schneider inverter systems

Maintenance

• Daily: Check battery status via Bluetooth monitoring

• Weekly: Inspect wall-mount bracket and ensure connections are secure

• Annually: Review communication ports, wiring, and system integration settings

Warranty

• Battery Specification Sheet: Download Here
