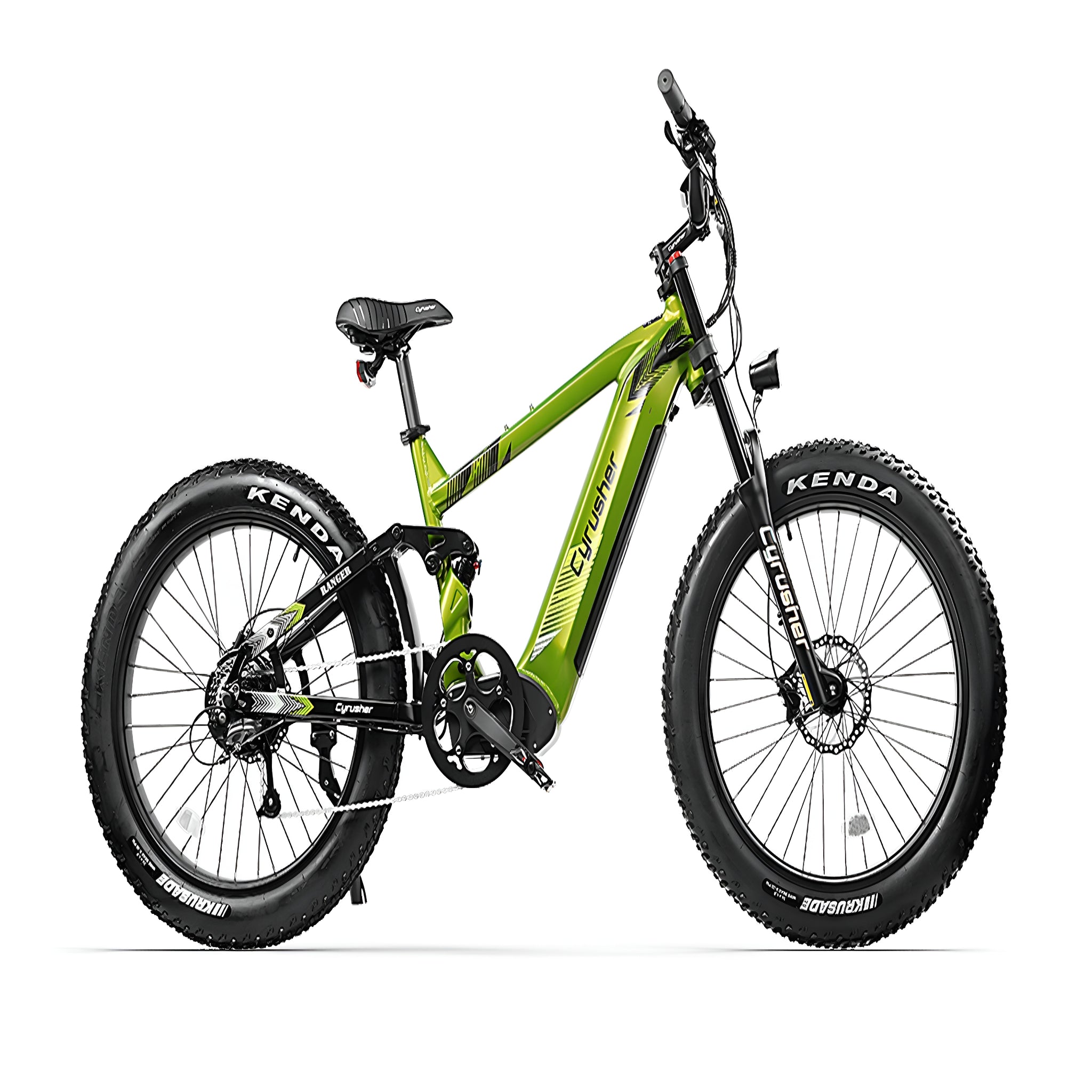

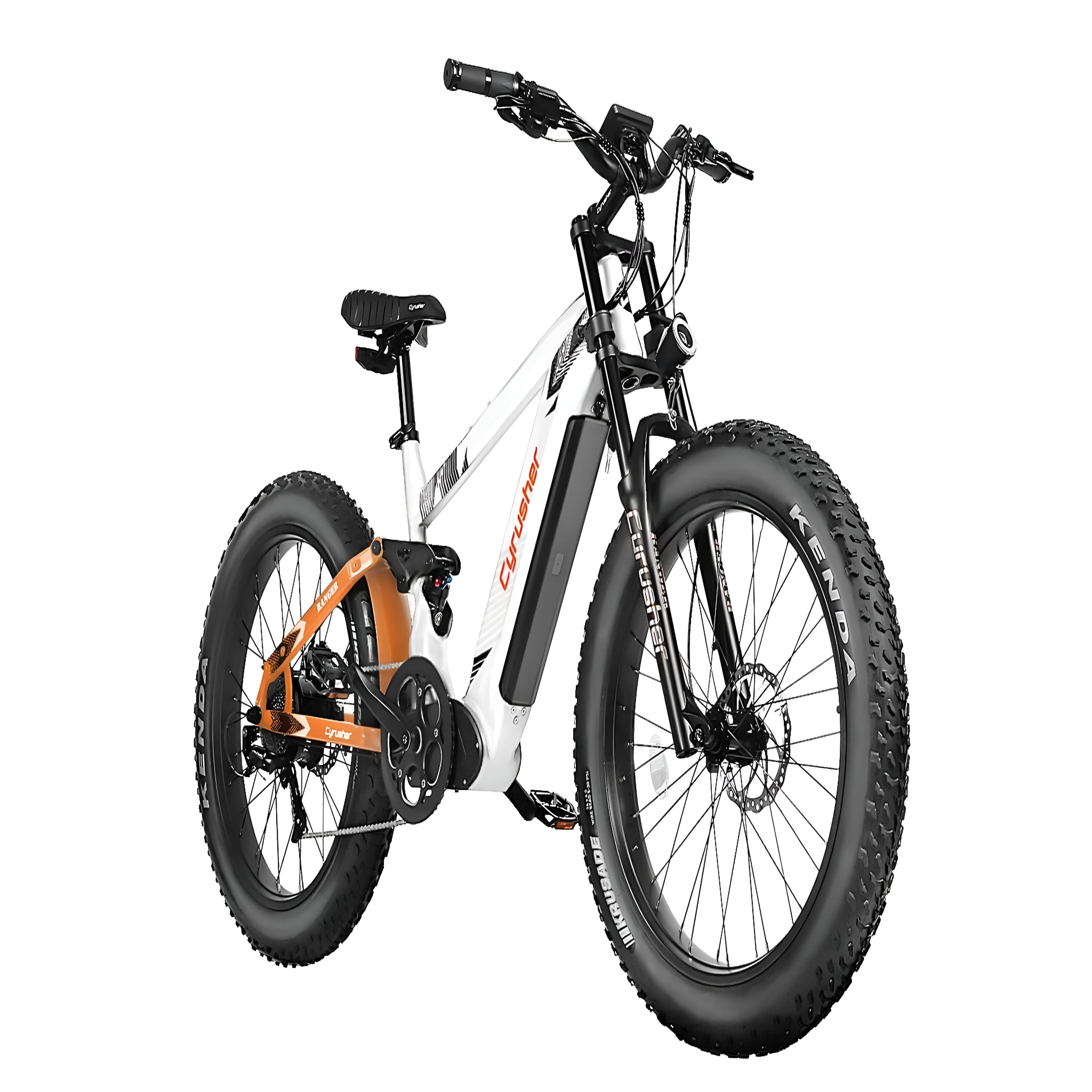

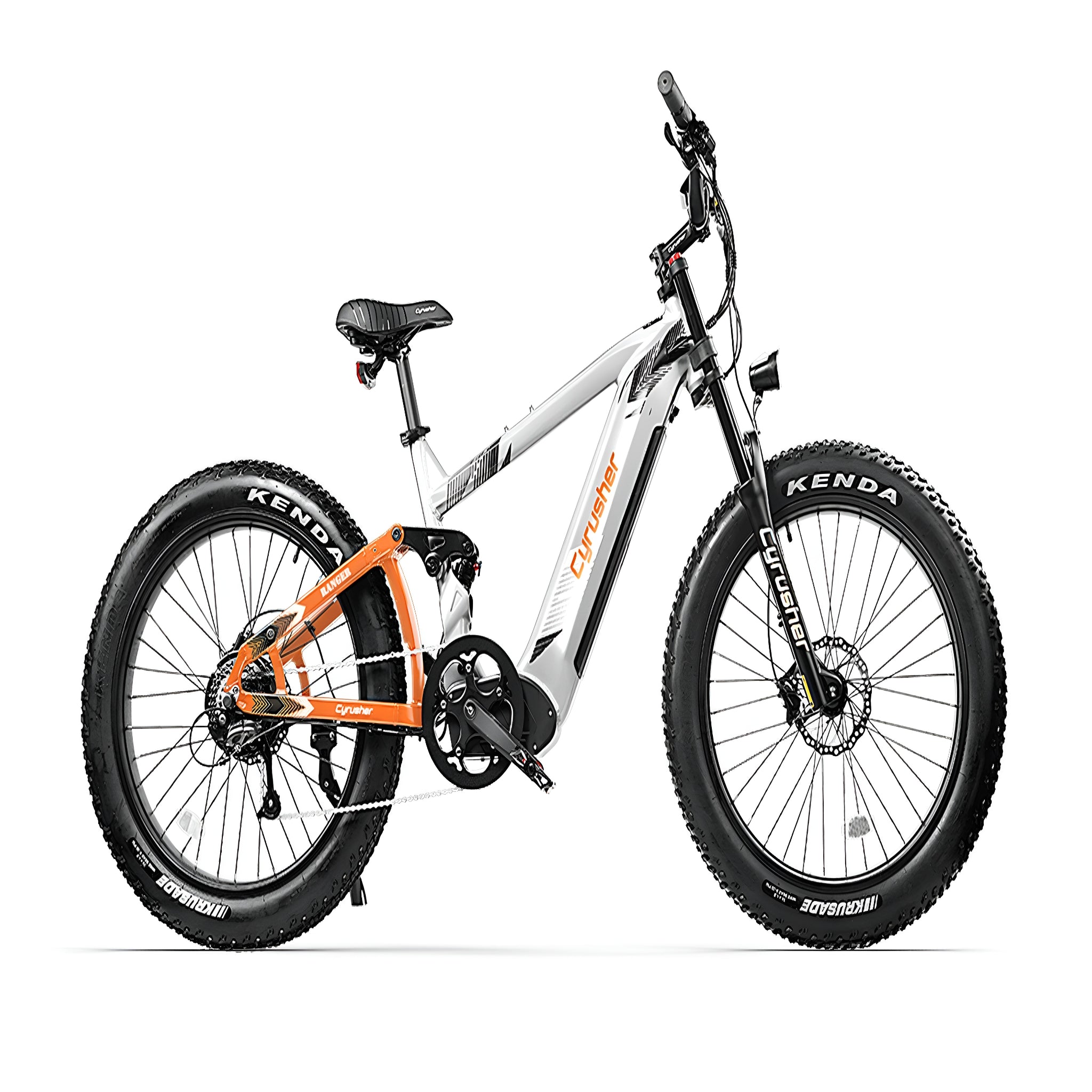

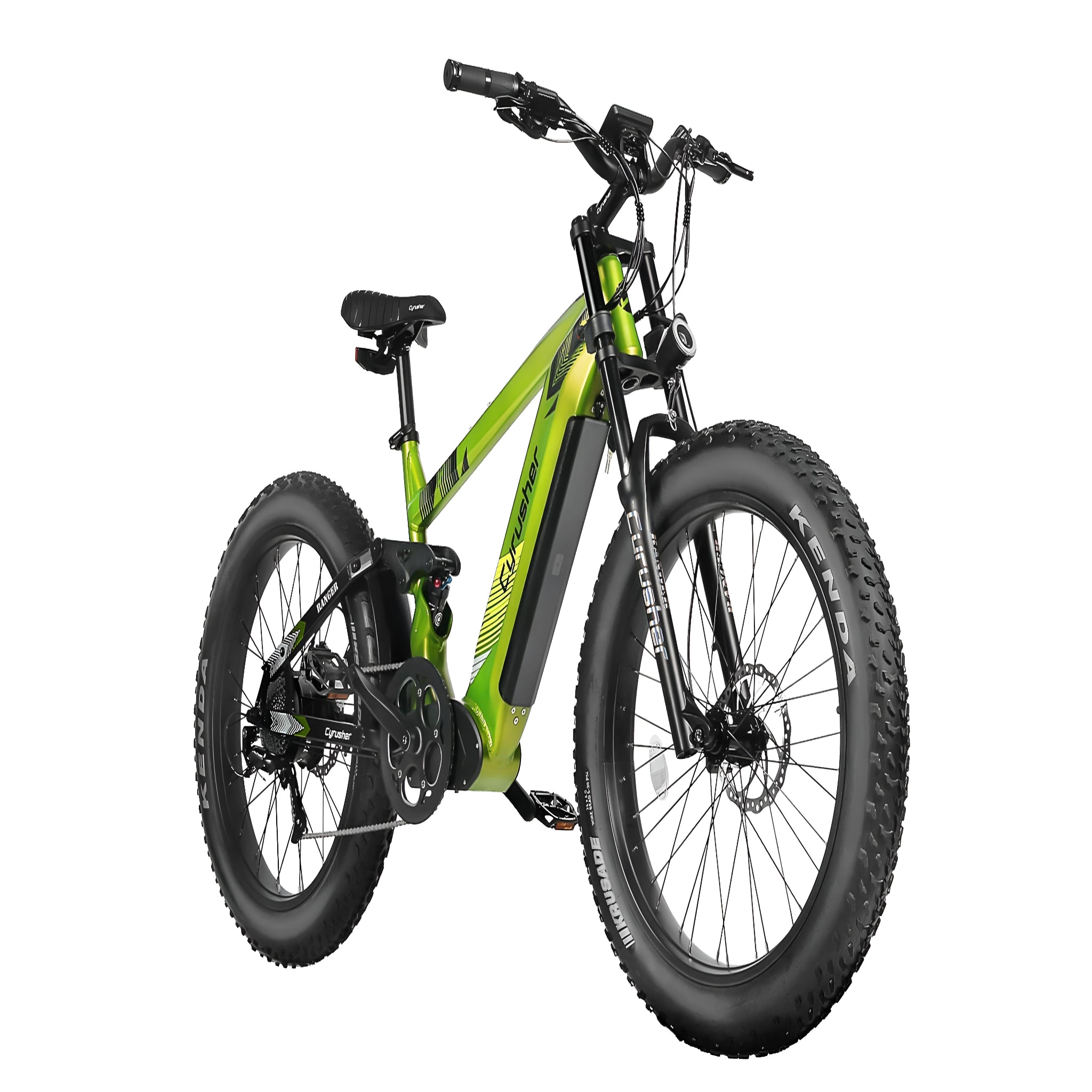

Cyrusher Ranger 1.0 Full-Suspension All-Terrain E-Bike

The Cyrusher Ranger 1.0 Full-Suspension All-Terrain E-Bike is a full-suspension, all-terrain e-bike built for smooth, confident performance on pavement, gravel, and light trails. A robust 52V electrical system, high-capacity 20Ah LG battery, and powerful 750W (95 Nm) Bafang rear-hub motor deliver responsive acceleration and real-world range up to 75 miles per charge—making hills easier, rides longer, and every trip more enjoyable. With 4.0″ puncture-resistant fat tires, Logan hydraulic disc brakes, and adjustable suspension, the Ranger 1.0 adapts to your pace and terrain whether you’re commuting, cruising the city, or exploring backroads.

Specifications

• Frame Size: 22.4" / 56.9 cm

• Reach: 29.7" / 75.4 cm

• Standover Height: 35.4" / 89.9 cm

• Wheelbase: 52.7" / 133.9 cm

• Min Saddle Height: 35.4" / 89.9 cm

• Max Saddle Height: 39.3" / 99.8 cm

• Total Length: 80.7" / 205 cm

• Rider Height Range: 5'7"–6'6"

• Payload Capacity: 350 lbs

• Shipping Size/Weight: 167×36×84 cm / 116 lbs (52 kg)

• Battery: 52V 20Ah LG (≈800-cycle lifespan)

• Charger: 52V 3A

• Top Speed: Up to 28 mph (PAS Level 5)

• Range: Up to 75 miles (120 km) per charge

• Weight: 89.5 lbs (40.6 kg) with battery

• Motor: 52V 750W Bafang brushless rear-hub (95 Nm torque)

• Display: Bafang DP C010 LCD

• Sensor: Torque sensor pedal assist

• Front Light: 250-lumen LED

• Tires: Kenda 26" × 4.0" puncture-resistant fat tires

• Brakes: Logan 180 mm hydraulic discs (front & rear)

• Chain: KMC stainless

• Crankset: 170 mm forged alloy

• Derailleur: Shimano 9-speed (SL-M2010 + RD-M370)

• Front Suspension: Adjustable fork with lockout

• Frame: 6061 aluminum alloy with internal battery

• Gearing: Shimano 9-speed

• Throttle: Twist throttle

• Kickstand: 6061 aluminum

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: 12-gauge stainless steel

Features

• Torque-Sensing 750W Motor: 52V Bafang rear-hub motor delivers 95 Nm of torque for natural, responsive pedal assistance that adjusts instantly to your effort.

• Long-Range 52V 20Ah LG Battery: Ride up to 75 miles per charge with efficient power delivery and a reliable lifespan of around 800 cycles.

• Full Suspension Comfort: Adjustable front fork and rear spring shock absorb bumps and vibration, keeping ride quality smooth on mixed terrain.

• 26×4.0″ All-Terrain Fat Tires: Kenda puncture-resistant tires provide grip, stability, and comfort across pavement, gravel, and trails.

• Hydraulic Disc Brakes: Logan 180 mm hydraulic brakes deliver strong, consistent stopping power for confident descents and high-speed control.

• Why Choose the Cyrusher Ranger 1.0: Designed for riders who want a powerful, stable, and comfortable e-bike that performs everywhere—from city streets to rugged backroads—with long-range capability, torque-sensing assist, fat tires, and full suspension for more adventure with less effort.

• What’s Included: Cyrusher Ranger 1.0 electric bike, 52V 20Ah LG battery, 52V 3A charger, air pump, assembly toolset, assembly guide, battery manual, and user manual.

Maintenance

• After Each Ride: Wipe down the frame, fork, and contact points—especially after wet or dusty rides—and visually inspect tires, brakes, and suspension for debris or damage.

• Weekly: Check tire pressure, brake pad wear, chain lubrication, and ensure all major bolts (stem, handlebar, crankset, suspension pivots) are secure.

• Battery Care: Charge only with the supplied 52V 3A charger, avoid fully depleting the battery when possible, and store it indoors in a cool, dry place when not in use for extended periods.

Warranty

• Frame: 2 years

• Parts: 1 year

• Battery: 1 year

• Terms: Warranty applies to the original owner and covers defective part replacement. Buyer is responsible for shipping costs associated with replacement items.
